2.

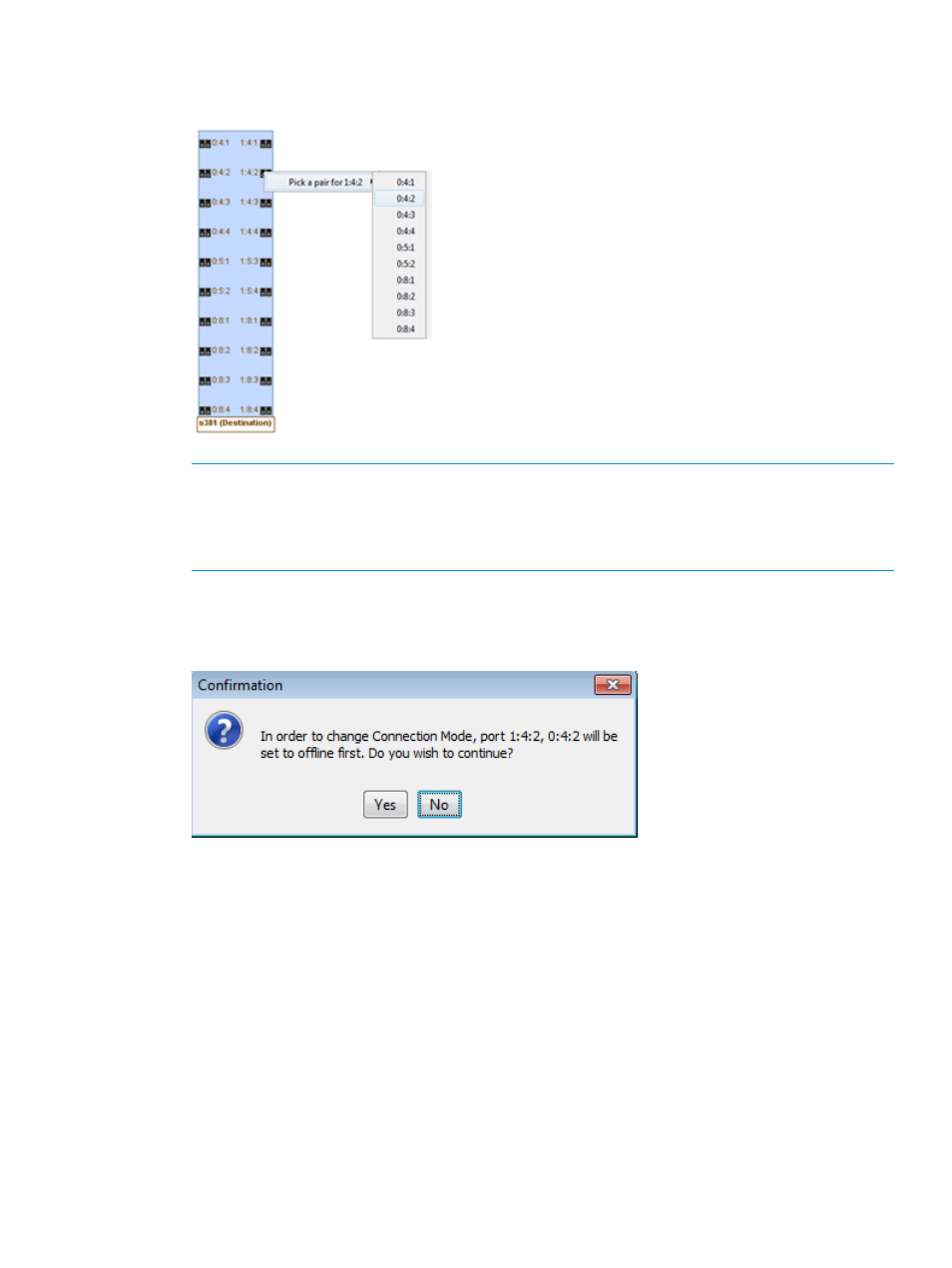

Select Pick a pair for , then select the port you want paired with the
destination port. (Peer ports display as bold.)

NOTE:

If the host ports are not already configured, you can configure them in the Port

Parameters area.

NOTE:

At any time, you can view host and peer port WWNs by clicking

“Show Port

WWNs” (page 247)

on the Set Up Connections screen.

3.

Select Apply. (This is enabled when the port parameters are modified.)

If the paired port is online, a confirmation dialog box appears, indicating the port must be
set to offline. Click Yes to continue.

The Port Configuration and Zoning dialog box appears.

Show Port WWNs

This dialog box displays the source system's system host port WWNs and the destination systems'
peer port WWNs. Use this information to zone the peer ports to the host ports.

Creating a Peer Motion Configuration 247
