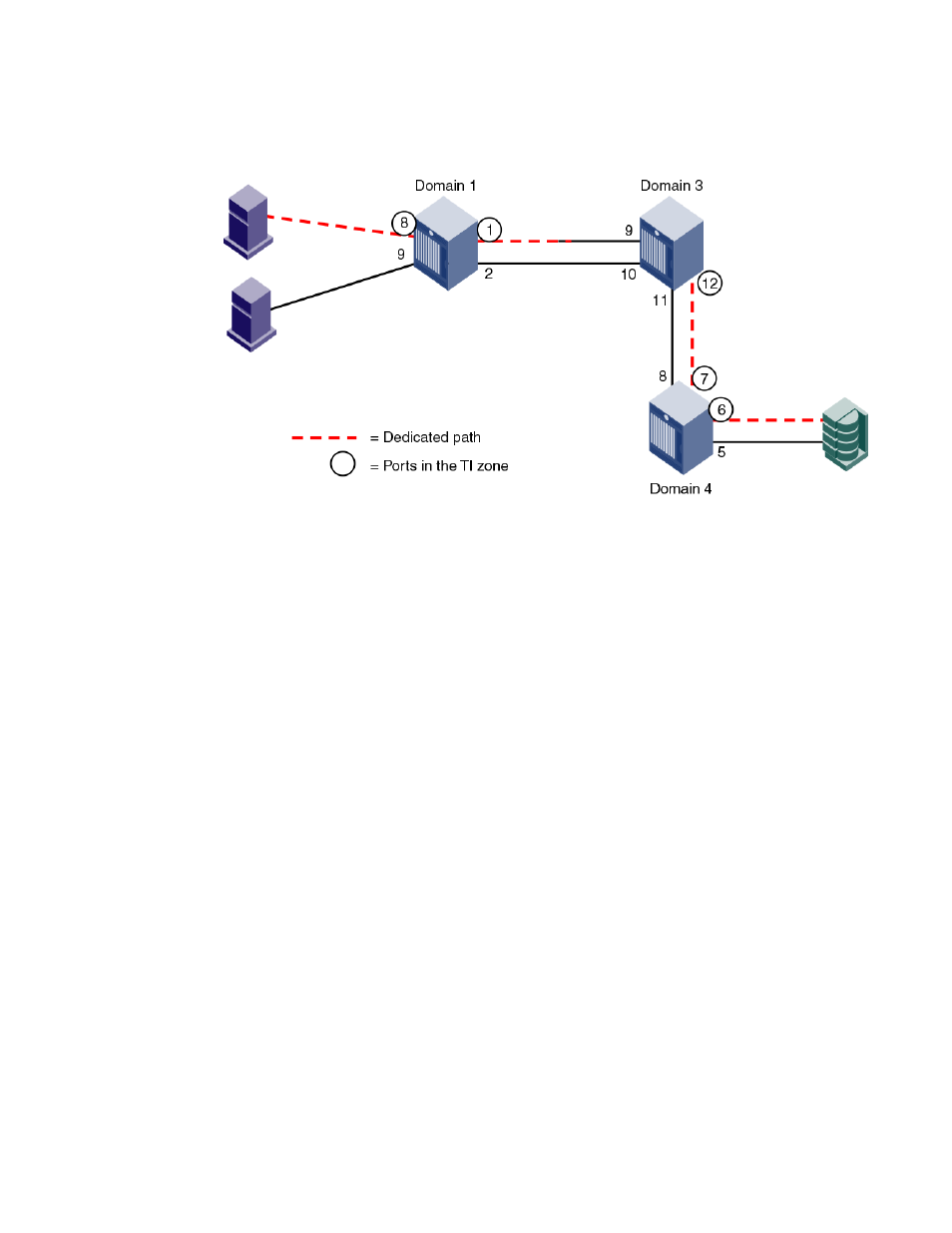

FIGURE 43 TI zone misconfiguration
Traffic Isolation Zone violation handling for trunk ports
For any trunk group, all the members of the group need to belong to the TI zone to prevent routing
issues resulting from changes in the members of the trunk group. This applies to any E_Port or F_Port
trunk groups that are included in TI zones using failover disabled mode.
Fabric OS posts a RASlog message (ZONE-1061) if any of the ports part of a trunk group is not added
to the TI zone with failover disabled. Also, a CLI (zone --showTItrunkerrors ) is provided to check if all
ports per switch in a TI zone are proper. This will help you identify missing trunk members and take
corrective actions.
RASlog message when any port in a trunk group is not in the TI zone
SW82:FID128:admin> zone
[ZONE-1061], 620/181, FID 128, WARNING, sw0, Some trunk members are missing from
failover disabled active TI zones.
The CLI essentially displays the details of the trunk members present in the TI zone and those not
present in the TI zone. These details are displayed per TI Zone basis.
RASlog message when --showTItrunkerrors is added to zone command
switch:admin> zone --showTItrunkerrors
TI Zone Name: brackets
E-Port Trunks
Trunk members in TI zone: 16 18
Trunk members not in TI zone: 17
F-Port Trunks
Trunk members in TI zone: 4 5
Trunk members not in TI zone: 6
TI Zone Name: loop
E-Port Trunks
Trunk members in TI zone: 0
Trunk members not in TI zone: 1
TI Zone Name: operand
E-Port Trunks
Trunk members in TI zone: 8
Trunk members not in TI zone: 9 10
E-Port Trunks
Traffic Isolation Zone violation handling for trunk ports
