2.10 Using the Monitor Page and Operator Page
Explanation
This section describes how to display the monitor page and operator page and the
operation on each page.
Web Browsers That Can Be Used
Operations have been confirmed on the following Web browsers.
• Microsoft Internet Explorer 4.0 to 5.5
Setting the URL
Set the URL (Uniform Resource Locator) appropriately according to the network
environment that you are using. You can access the CX by setting the URL as
follows:
http://host name.domain name/file name
• http: Protocol used to access the server. HTTP stands for HyperText Transfer Protocol.
• Host name.domain name: Host name and domain name of the CX. You can also
use the IP address in place of the host name and domain name.
• File name: File name of the monitor page and operator page of the CX.
File name of the monitor page: monitor.htm
File name of the operator page: operator.htm
Omitting the file name is equivalent to specifying the monitor page. However, if the
monitor page is disabled, it is equivalent to specifying the operator page.
Example
To display the operator page using Internet Explorer on a PC in the same domain as
the CX (the domain name, host name, and IP address are assumed to be good.com,
CX, and 123.456.789.123, respectively).
Address: http://CX.good.com/operator.htm or
Address: http://123.456.789.123/operator.htm
Contents of the Monitor Page

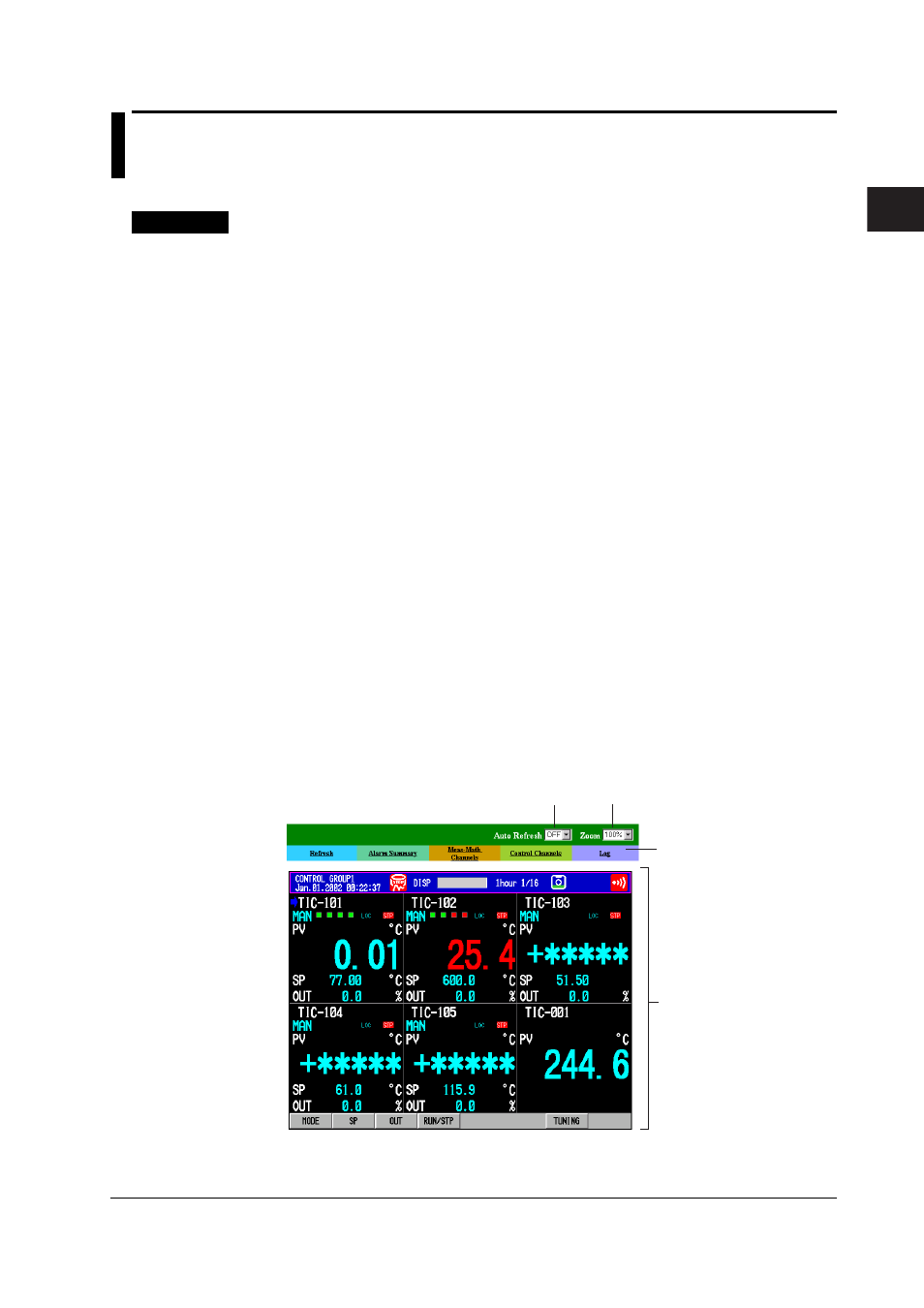

CX2000 screen example
Monitor screen
Zoom in/out Auto refresh
Display menu section
• Refresh the display
• Alarm summary display
• Measured/computed data
display
• Control data display
• Log display
