5-13
IM 04L31A01-17E
5
Ladder Communication Protocol
5.5
Communication Program for MELSEC
Below is a program example for communications between the CX and the MELSEC
Q02HCPU sequencer made by Mitsubishi Electric Corporation.
Preparations before Communications
Devices Used
This sample program assumes that the QJ71C24 computer module (communication
module) is installed into slot 2 of the Q02HCPU.
Connection

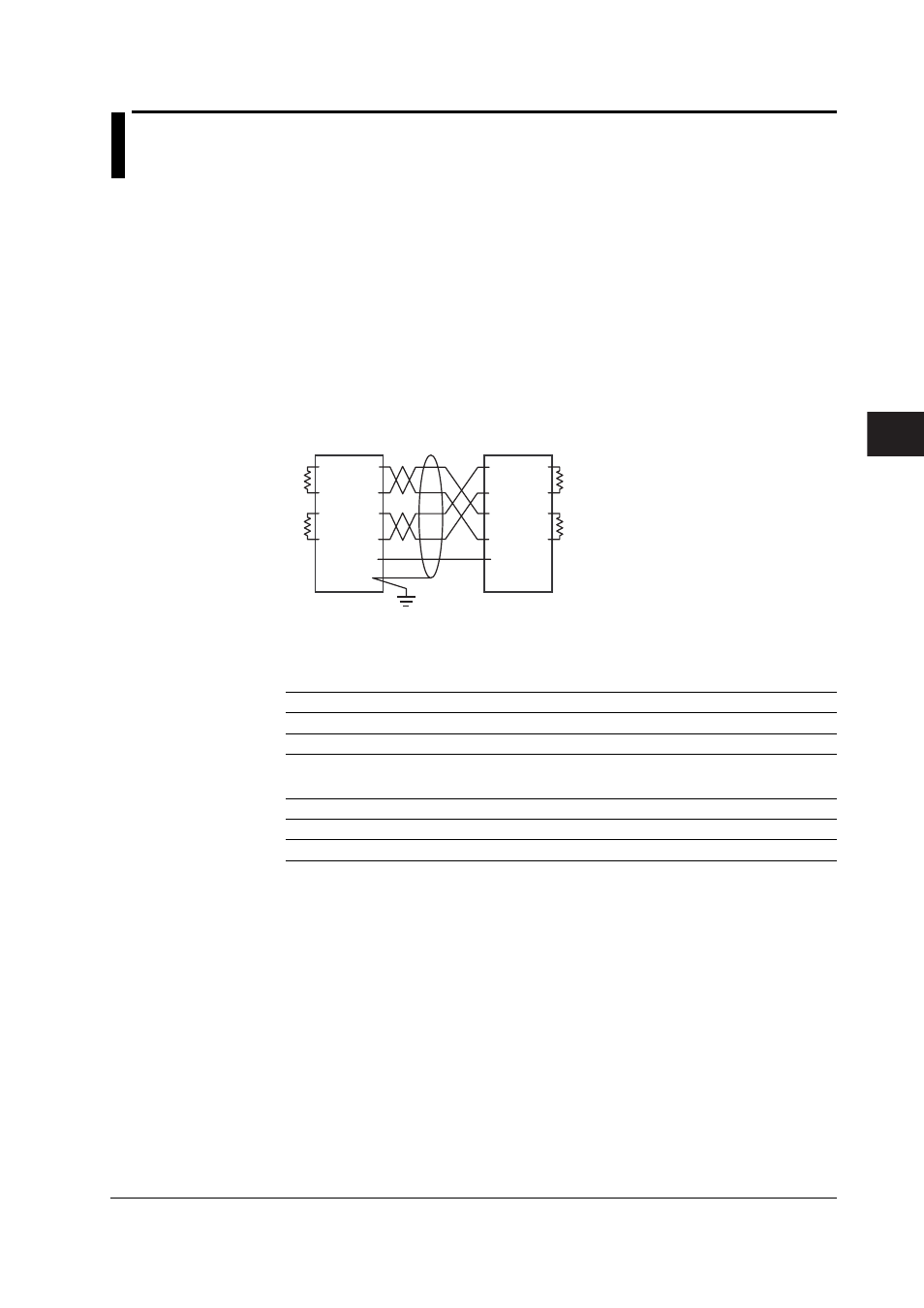

Connect the RS422 terminal of the QJ71C24 computer link unit to the CX according
to the figure below.
MELSEC
Computer Link Module
QJ71C24
Terminator
120 Ω, 1/2 W or more
CX
SDB (+)
SDA (–)
RDB (+)
RDA (–)
SG
SDA (+)
SDB (–)
RDA (+)
RDB (–)
SG
SHIELD
Use the PC software program for MELSEC and set the I/O assignments and their switch
settings as follows:
I/O Assignments
Slot
Type
Model
Number of Points
CPU
CPU
2(*-2)
Intelligent
QJ71C24
32
I/O Assignment Switch Setting
Slot
Type
Model
Switch 1
Switch 2
Switch 3
Switch 4
Switch 5
CPU
CPU
2(*-2)
Intelligent
QJ71C24
0000
0000
0582
0006
0000
