Display Data
• The MI command is used to output the FIFO data.
• The ID number of the output format is “11.” See “Identifier” on page 7-3.

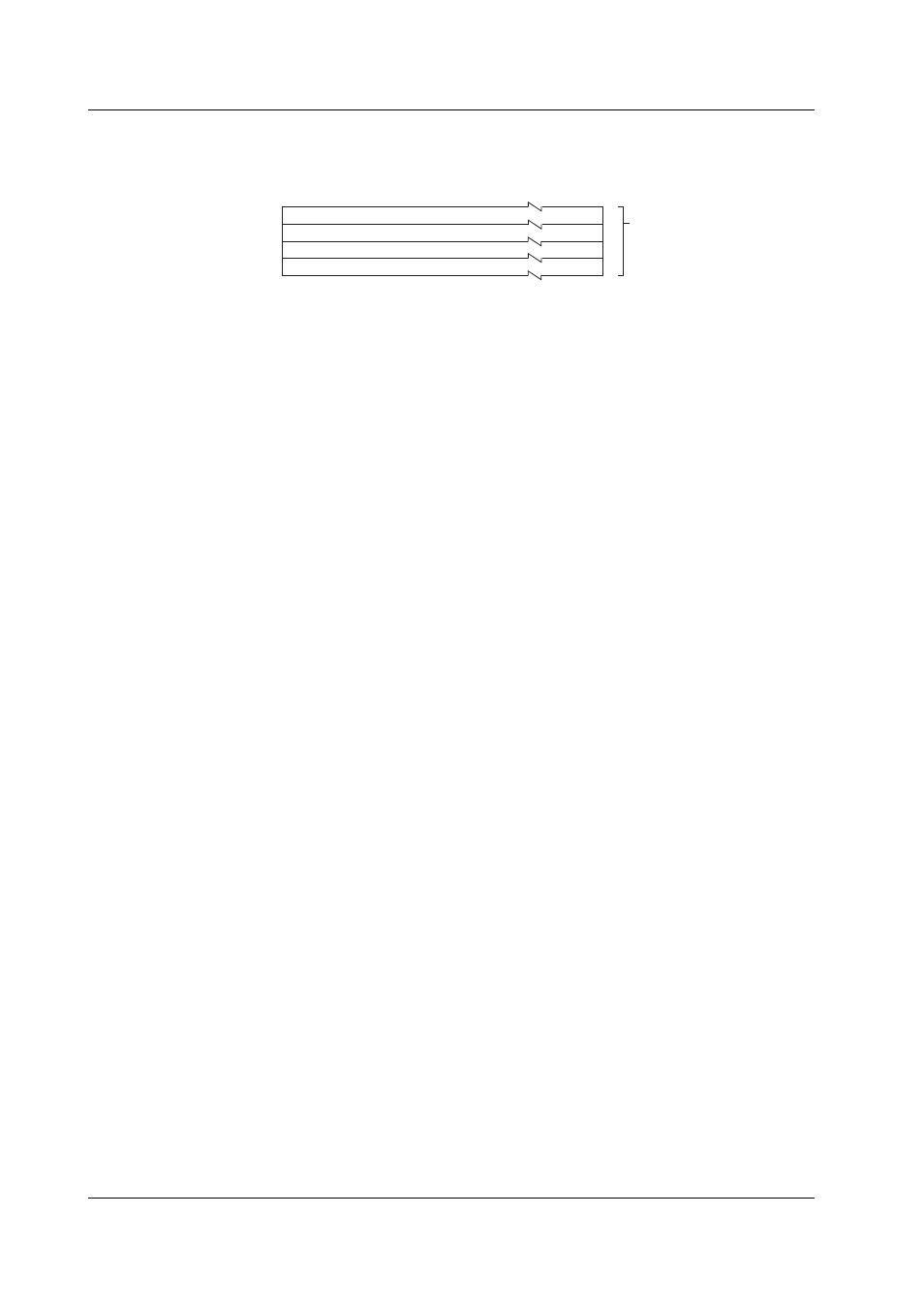

Header
Block 1
. . .
Block n
BINARY data
(The BINARY data section
on the “Conceptual diagram”
on page 7-2.)
Header
Syntax
aaaaaa,ddd,ffffggg,tttttt
CRLF
DATE_yy/mo/dd
CRLF
TIME_hh:mi:ss.mmmt
CRLF
s_kccuuuuuu,pp
CRLF
..................
s_kccuuuuuu,pp
CRLF
aaaaaa
Number of blocks (6 digits) Matches the number of blocks, n, in the
above figure.
ddd
Number of channels (3 digits)
ffff
Sampling interval value (4 digits)
ggg
Sampling interval unit (3 characters, left justified)
tttttt
Data number of the trigger position (6 digits, counting starts with 0.)
For display data, this value is the number of the last display data.
yy
Year (00 to 99)
mo
Month (01 to 12)
dd
Day (01 to 31)
hh
Hour (00 to 23)
mi
Minute (00 to 59)
ss
Second (00 to 59)
mmm
Millisecond (000 to 999)
t
Reserved (Space.)
s
Data status
N: Normal
D: Differential input
ccc
Channel number
0xx: Measurement channel (001 to 020) (001 to 006 on the CX1000)
Axx: Computation channel (A31 to A60) (A31 to A42 on the CX1000)
1xx: Internal control channel (101 to 118) (101 to 106 on the CX1000)
2xx: External control channel (201 to 248) (201 to 212 on the
CX1000)
uuuuuu
Unit information (6 characters, left-justified)
mV____: mV
V_____: V
^C____: °C
xxxxxx: (User-defined character string)
pp
Decimal point position (00 to 04)
No decimal point (00000) for 00.
One digit to the right of the decimal (0000.0) for 01.
Two digits to the right of the decimal (000.00) for 02.
Three digits to the right of the decimal (00.000) for 03.
Four digits to the right of the decimal (0.0000) for 04.
_
Space
7.3 Output Format of BINARY Data
