Chapter 4: Operation and Setup Series D8 User’s Guide
80 Watlow Anafaze Doc. 0600-3120-2000
Displays
Loop Display
The loop display shows detailed information about a loop.

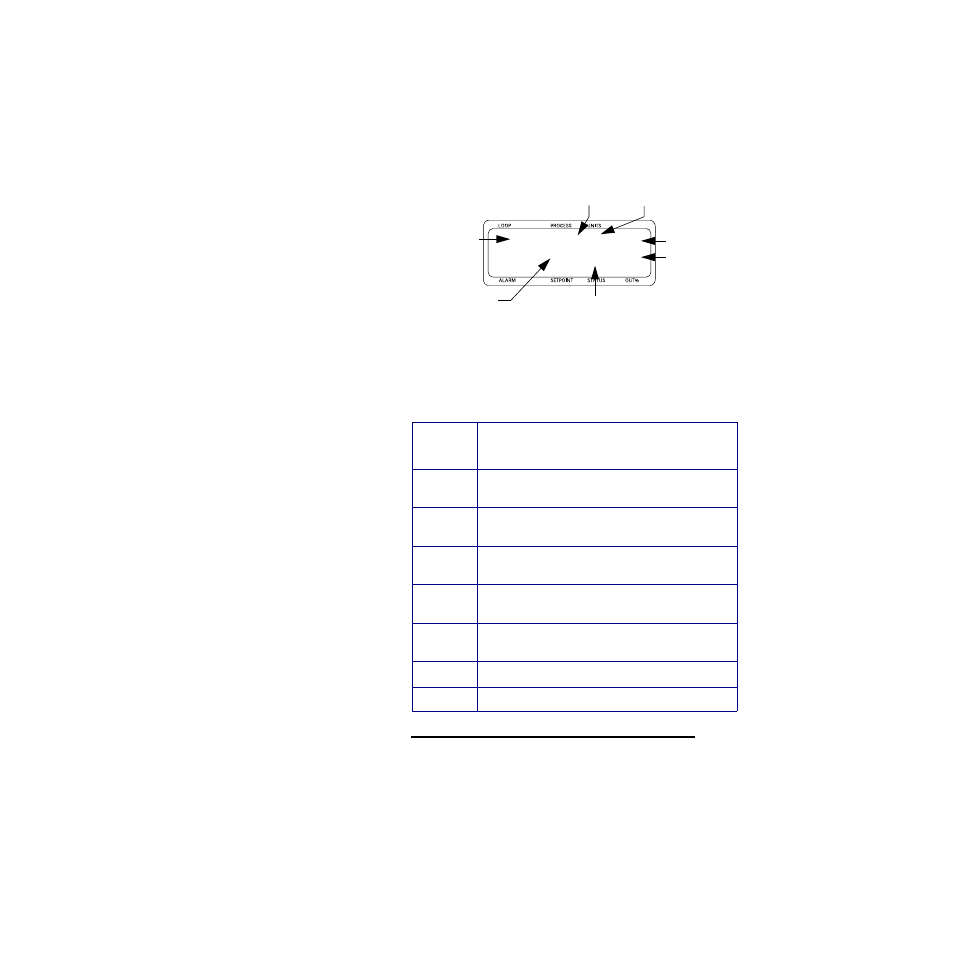

Figure 4.3 Loop Display
The control modes are described in Table 4.1.
Table 4.1 Control Modes
NOTE! If the input type for a loop is set to “skip,” the
loop display will be blank for that loop.
The scanning loop display sequentially displays the informa-
tion for each loop. The data for each loop displays for one sec-
ond. To activate the scanning loop display, go to the loop
display, then press and hold the + side of the p key for
three seconds. To exit the scanning mode, press any key.
Control
Mode
Description
off
The loop is set to off. One or both outputs are
enabled but both outputs are at 0%.
man
The loop is in manual control. One or both out-
puts are enabled.
auto
The loop is in automatic control. Only one out-
put (heat or cool) is enabled.
heat
The heat and cool outputs are enabled. The
loop is in automatic control and heating.
cool
The heat and cool outputs are enabled. Loop
is in automatic control and cooling.
tun The loop is in autotune mode.
(blank) The heat and cool outputs are both disabled.
01 925 ˚Cc 0
Process
Variable
Engineering
Units
Cool and
Heat Output
Power
Control Mode (see Table 4.1)
1000manh100
Set Point
Loop Name
