Chapter 3: Communicating by DeviceNet Series D8 User’s Guide
50 Watlow Anafaze Doc. 0600-3120-2000

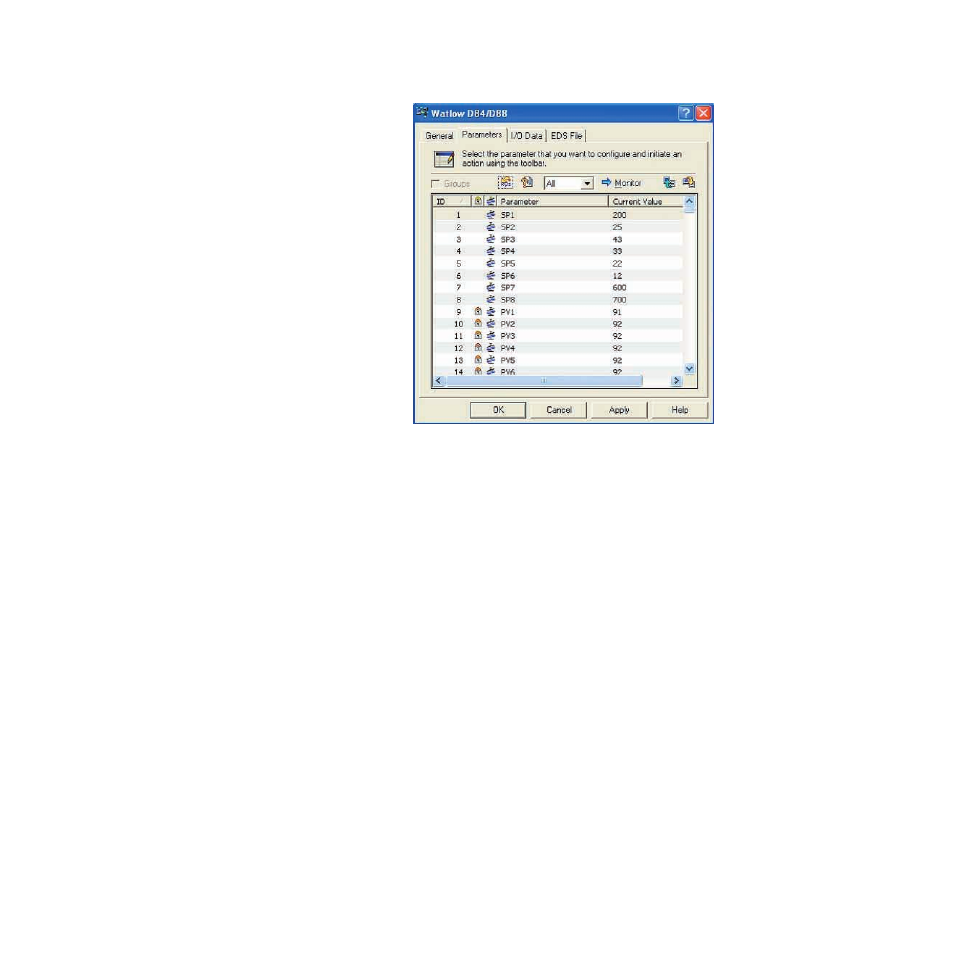

Figure 3.4 Parameters Tab
Mapping Polled I/O Data
Once the D8 controller is registered, the master must be con-
figured to communicate with it. Once the master is configured
it is possible to map the polled I/O data from the D8 to the
PLC. The next sections address these steps.
Adding the D8 to the Master's Scanlist
This section describes configuring the DeviceNet scanner so
that it will copy data between the scanner's memory and the
D8 controller.
To add the D8 controller to the scanlist:
1. Double-click the 1747-SDN scanner (see Figure 3.2 on
page 48) to open its properties dialog box. The properties
dialog lists the Available Devices and displays the scan-
ner's Scanlist (see Figure 3.5 on page 51). The Scanlist
shows the devices that are mapped into the scanner's
memory, the Available Devices list displays the devices
that are on the network.
2. Uncheck the Automap on Add option. (When checked the
software automatically assigns addresses to data from the
