Chapter 8: Specifications Series D8 User’s Guide
182 Watlow Anafaze Doc. 0600-3120-2000

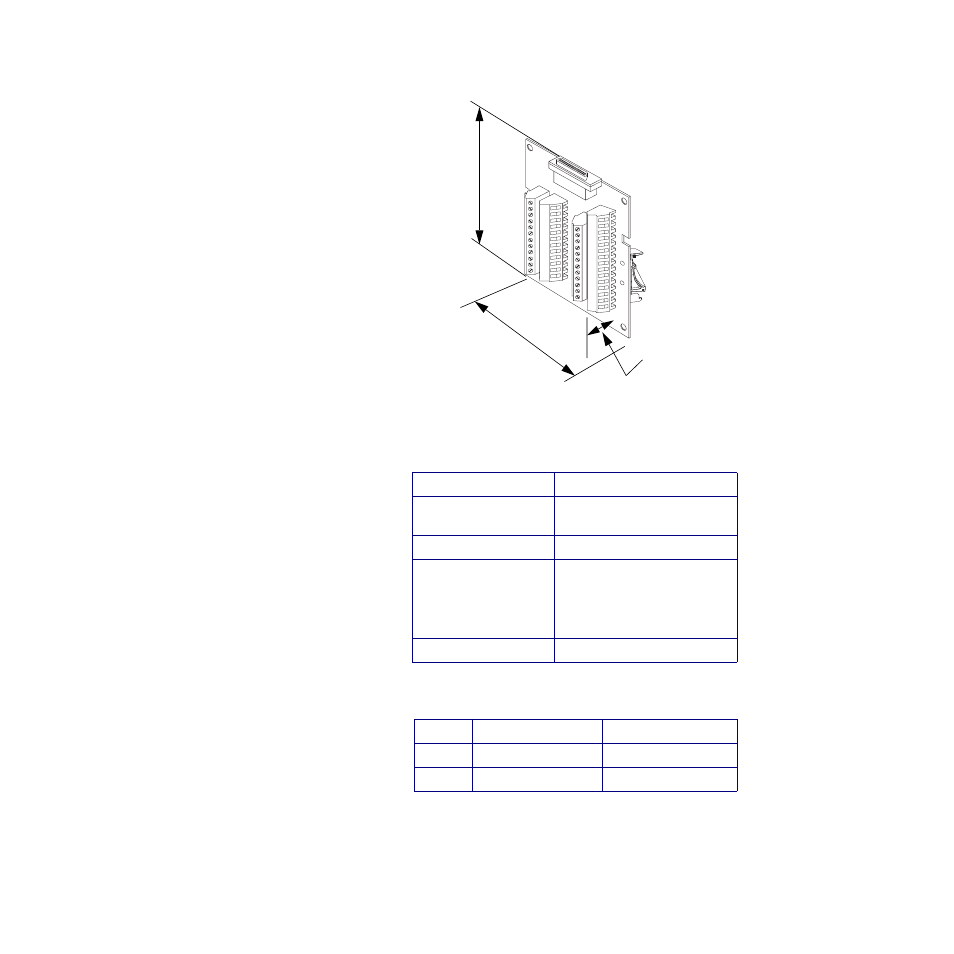

Figure 8.3 TB50 Dimensions
Table 8.6 TB50 Connections
Table 8.7 TB50 with Straight SCSI
Screw Terminal Torque 4.4 to 5.3 in.-lb. (0.5 to 0.6 Nm)
SCSI Connector on
Board
SCSI-2 female
Output Terminals Captive screw cage clamp
Output Wire Gauge
Multiconductor cables: 24 AWG
(0.2 mm
2 )
Single-wire: 22 to 18 AWG
(0.5 to 0.75 mm
2 )
Output Terminal Torque 4.4 to 5.3 in.-lb. (0.5 to 0.6 Nm)
Length 6.4 inches 163 mm
Width 4.0 inches 102 mm
Height 1.5 inches 37 mm
(37 mm)
4.1 in.
(104 mm)
4.0 in.
(102 mm)
1.5 in.
