Serial DAC Specifications
Watlow Anafaze offers a Serial DAC for precision open-loop
analog outputs. The Serial DAC is jumper-selectable for a 0 to
10 Vdc or 4 to 20 mA output. Multiple Serial DAC modules
can be used with one D8. The Serial DAC carries a CE mark.
Table 8.27 Serial DAC Environmental Specifi-
cations
Table 8.28 Serial DAC Physical Specifications

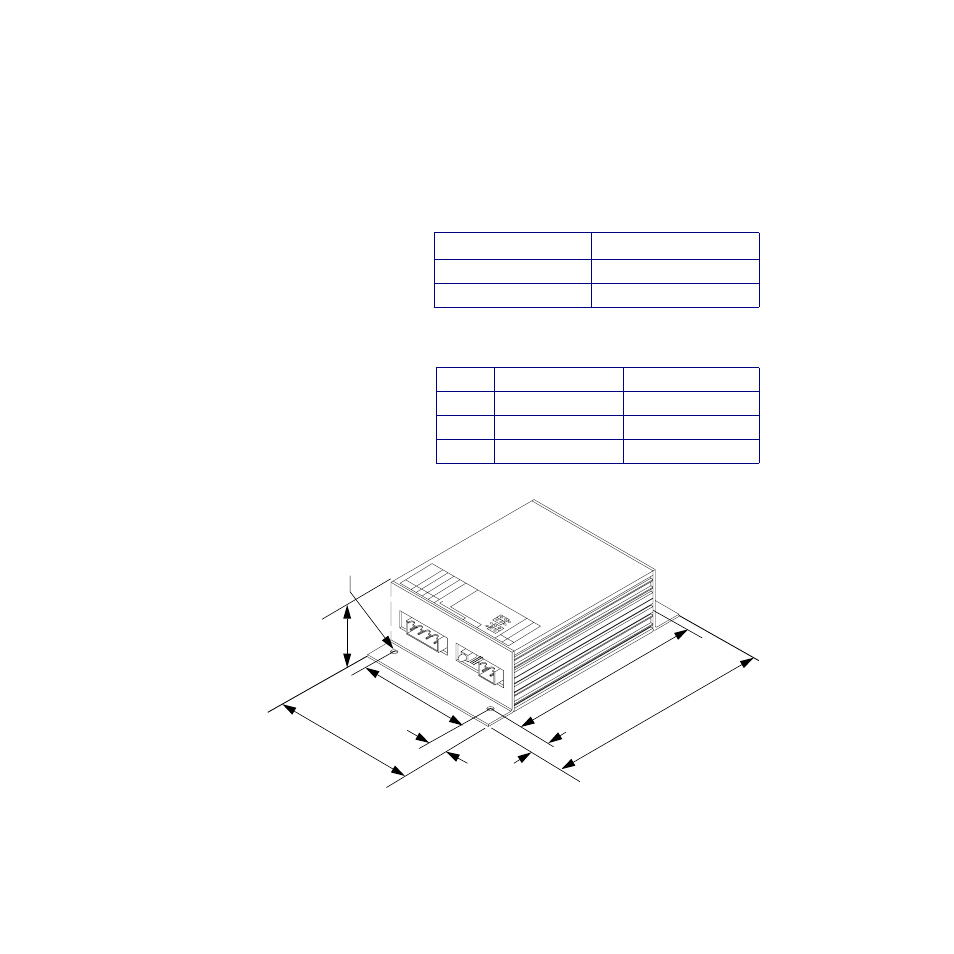

Figure 8.8 Serial DAC Dimensions
Storage Temperature -20 to 60° C
Operating Temperature 0 to 50° C
Humidity 10 to 95% non-condensing
Weight 0.76 lb. 0.34 kg
Length 5.4 inches 137 mm
Width 3.6 inches 91 mm
Height 1.8 inches 44 mm
+5V IN COM IN CLK IN DATA
IN
FLASHING =RUNNING
+ OUT - OUT
PIN
: 1
2
3 4
5 6
OUTPUT SELECT
CURRENT
VO
LTAG
E
{
{
ANAF
AZE
SERIAL D
AC
0.2 in. diameter
4 mm
5.5 in.
138 mm
3.6 in.
91 mm
1.8 in.
44 mm
3.0 in.
76 mm
4.7 in.
119 mm
0.3 in.
8 mm
0.4 in.
10 mm
