Chapter 3: Communicating by DeviceNet Series D8 User’s Guide
56 Watlow Anafaze Doc. 0600-3120-2000

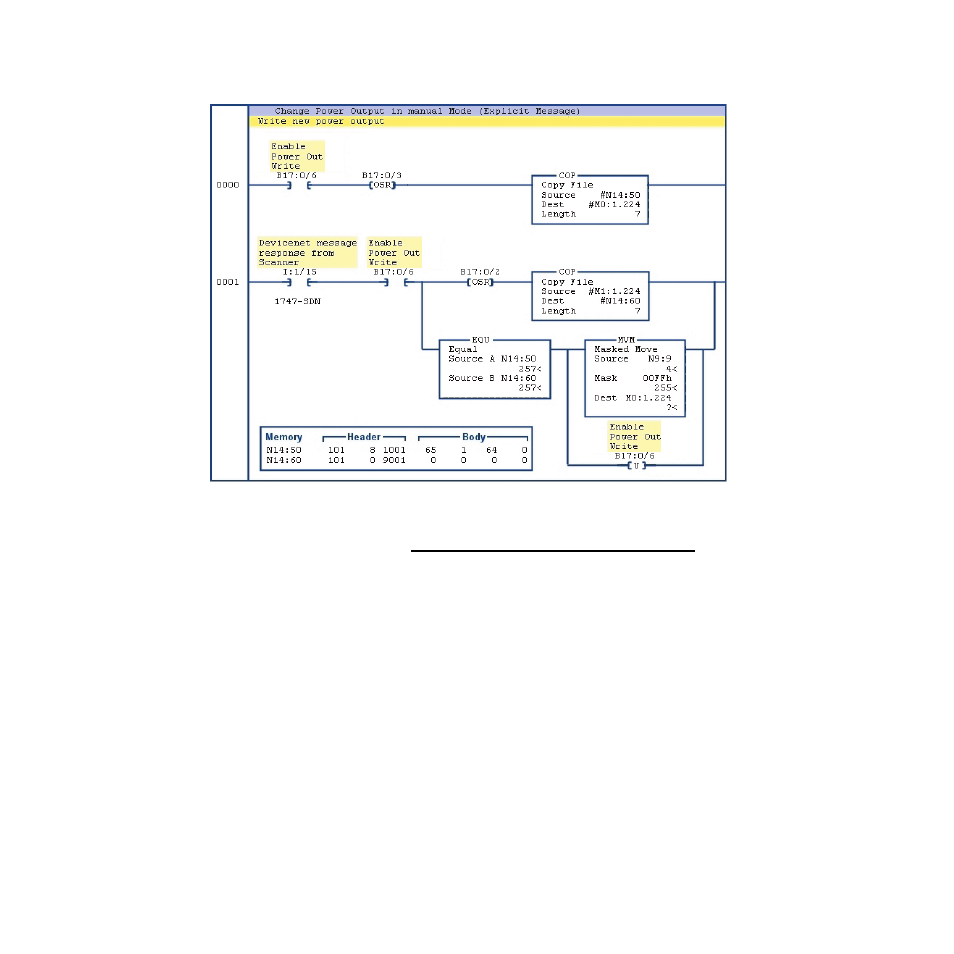

Figure 3.10 Explicit Write in Ladder
NOTE! The numbers shown above in N14:50
through N14:56 and N14:60 through N14:66
are in hexadecimal.
The explicit messages in the example are 7 words long. The
outbound transaction header is defined in the first 3 words of
the copy instruction. In the figure the header for the first mes-
sage is N14:50, 51, and 52. Table 3.2 lists and describes the
parts of the message header.
