Analog Outputs

Analog outputs can be provided by using a Dual DAC or Se-

rial DAC module to convert the open collector outputs from

the controller. Use multicolored stranded shielded cable for

analog outputs. Analog outputs generally use a twisted pair

wiring. The following sections describe how to connect the

Dual DAC and Serial DAC modules to power the controller

outputs and the load.

Wiring the Dual DAC

A Dual DAC module includes two identical circuits. Each can

convert a distributed zero cross (DZC) signal from the con-

troller to a voltage or current signal. Watlow Anafaze strong-
ly

recommends using a power supply separate from the

controller supply to power the Dual DAC. Using a separate

power supply isolates the controller’s digital logic circuits and

analog measurement circuits from the frequently noisy devic-

es that take the analog signal from the Dual DAC.
Several Dual DAC modules may be powered by one power

supply. Consult the Specifications chapter for the Dual

DAC’s power requirements. Also note in the specifications

that the Dual DAC does not carry the same industry approvals

as the Serial DAC.

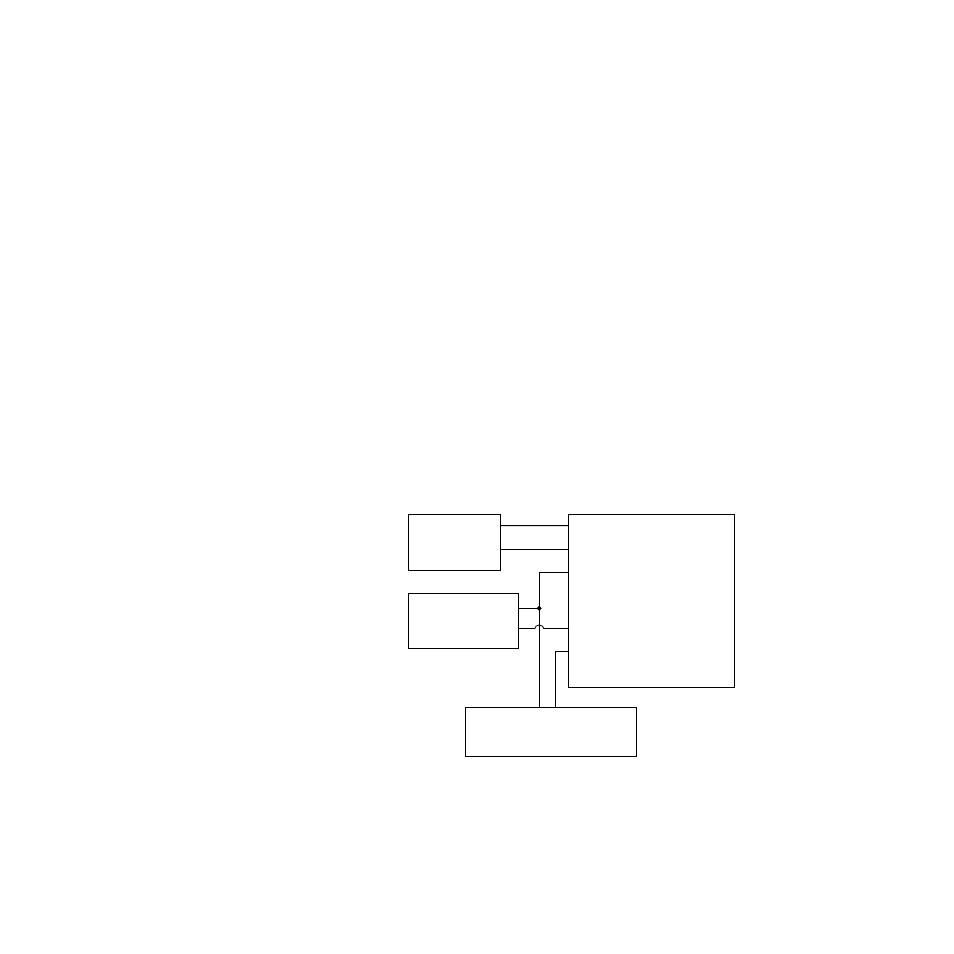

Figure 2.23 Dual DAC with Current Output

TB50 or TB18

+5V 1

Control Output

+5V CTRL Supply

1

2

3

4

5

6

DZC CTRL PID Output

+12/24 Vdc External

Power Supply

+Vdc Load Connection

-mAdc Load Connection

-External Power

Supply/ Vdc Load

Connection

Dual DAC

mA Load

12 to 24 Vdc Power Supply

+ -

+
-
