Chapter 3: Communicating by DeviceNet Series D8 User’s Guide
58 Watlow Anafaze Doc. 0600-3120-2000

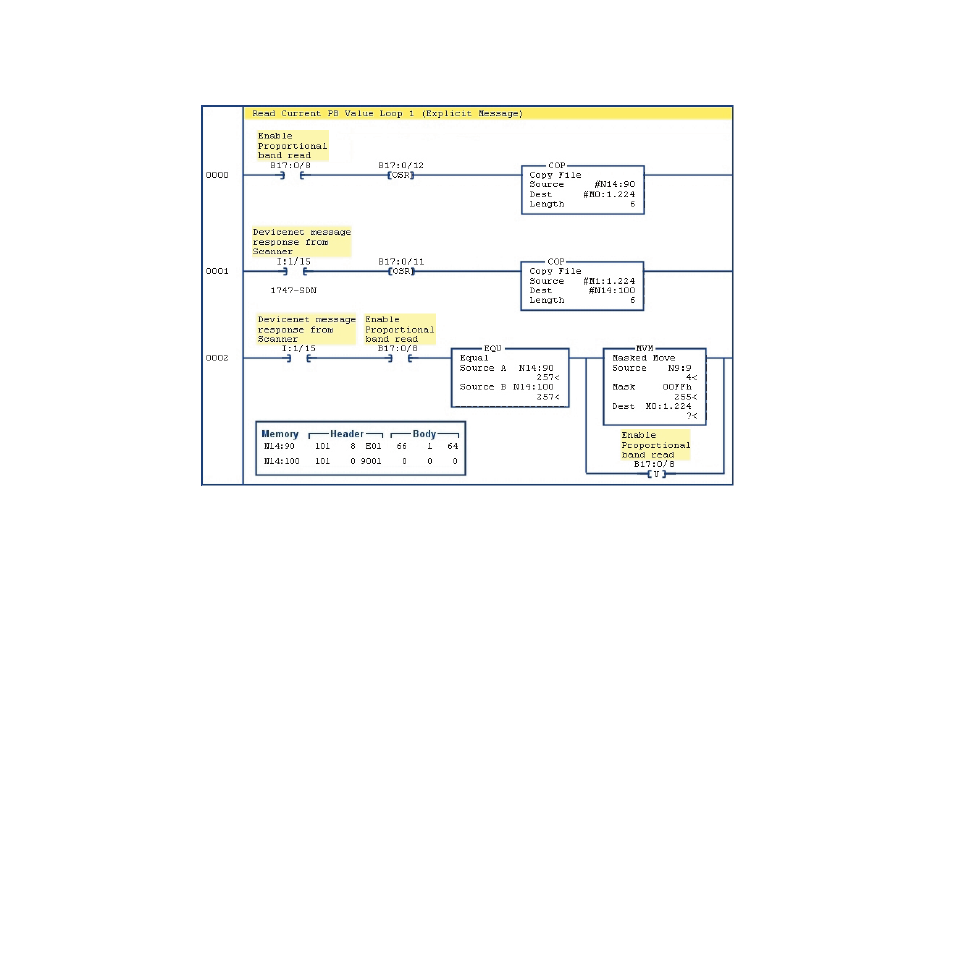

Figure 3.11 Explicit Read in Ladder
When I:1/15 comes on, indicating there is a response available
to a previously sent message, the controller's loop 1 Propor-
tional Band value is copied to N14:103. Again, if N14:100
comes back as an echo of N14:90 (transaction completed suc-
cessfully) the MVM instruction deletes the transaction from
the response queue.
Setting Parameters via DeviceNet
All values stored in the D8 are bits, integers or strings. Some
integers represent settings that appear as text in the controller
interface. Some integers represent numeric settings.
This section describes how to interpret values found in the De-
viceNet objects.
Non-Numeric Settings
With the exceptions of the Loop Name and Units parameters,
when the controller interface displays the setting as a word, a
