Series D8 User’s Guide Chapter 6: Menu and Parameter Reference
Doc. 0600-3120-2000 Watlow Anafaze 143
Heat/Cool Output Curve
Choose an output curve. If curve 1 or 2 is selected, a PID cal-
culation results in a lower actual output level than the linear
output requires. Use curve 1 or 2 if the system has a nonlinear
response to the output device.
Values:
linear (0), curve 1 (1) or curve 2 (2). Values in paren-
theses are for communications.
Default:
linear (0)
DeviceNet Object:
Output (65 hex)

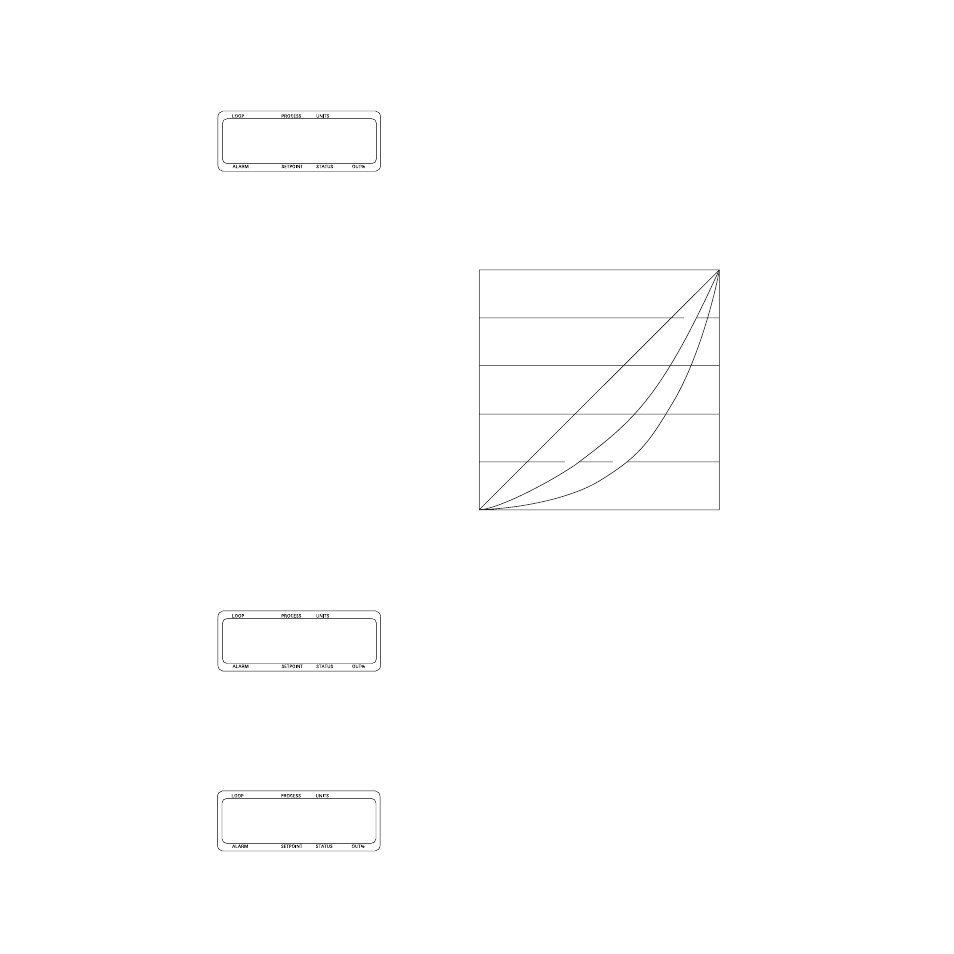

Figure 6.3 Linear and Nonlinear Outputs
Alarms Menu
Use the Alarms menu to configure high alarms, low alarms,
and deviation alarms, including:
•
Alarm set points
• Alarm outputs
• Alarm behavior
• Alarm hysteresis
• Alarm delay
Alarm High Set Point
Enter the set point at which the high alarm activates. The high
alarm activates if the process variable rises above this value.
For more information about the high alarm, see Alarm High
and Alarm Low on page 96.
l01 Heat outputr
curve blinear
Actual Output
0
20
40
60
80
100
10
20
30
40
50
60
70
80
90
3
8
13
27
48
62
2
4
7
12
29
44
66
Linear
Curve 1
Curve 2
36
19 19
79
l01 Alarms r
Other menus
l01 Alarm high r
SP b 760 ˚C
