Series D8 User’s Guide Chapter 2: Installation
Doc. 0600-3120-2000 Watlow Anafaze 19
Mounting the Dual DAC or Serial DAC Module
This section describes how to mount the optional Dual DAC
and Serial DAC digital-to-analog converters.
Mounting of the Dual DAC and Serial DAC is essentially the
same, except that the dimensions differ.
Jumpers
The output signal range of the Dual DAC and Serial DAC
modules is configured with jumpers. See Configuring Dual
DAC Outputs on page 177 and Configuring Serial DAC Out-
puts on page 176 for information about setting these jumpers.
Mounting
1. Choose a location. The unit is designed for wall mount-
ing. Install it as close to the controller as possible.
2. Mark and drill four holes for screw mounting. Holes ac-
commodate #8 (3.5 mm) screws. See Figure 2.10 for
screw locations. Install the unit with the four screws.

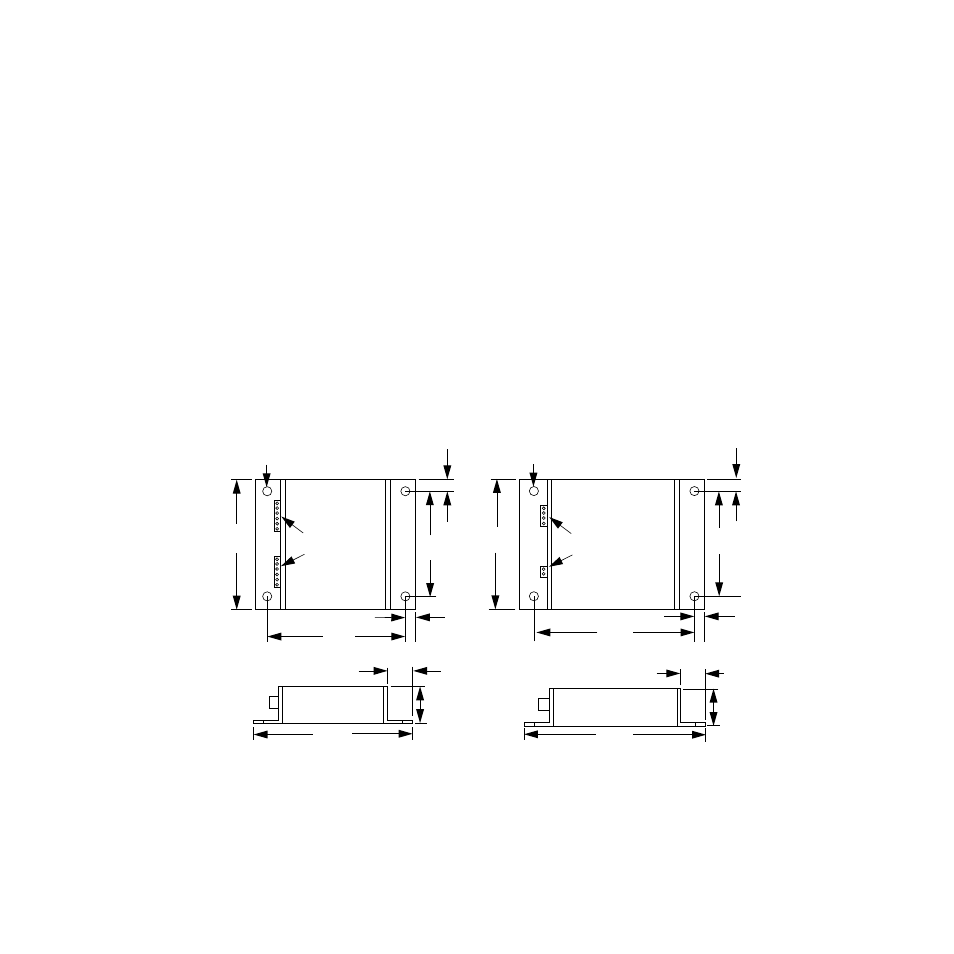

Figure 2.10 Dual DAC and Serial DAC
Dimensions
3.00 in
3.7 in
Electrical
Connectors
Electrical
Connectors
Dual DAC
3.00 in
3.62 in
4.7 in
Electrical
Connectors
Serial DAC
4.40 in 5.40 in
0.3 in
(8 mm)
(76 mm)
(91 mm)
(119 mm)
(137 mm)
(76 mm)
3.62 in
(91 mm)
(94 mm)
1.75 in
(44 mm)
(112 mm)
0.37 in
(9 mm)
0.65 in
(17 mm)
1.75 in
(44 mm)
0.65 in
(17 mm)
0.37 in
(9 mm)
0.3 in
(8 mm)
Electrical
Connectors
4 Holes for #8 (3.5 mm)
Screws or Bolts
4 Holes for #8 (3.5 mm)
Screws or Bolts
