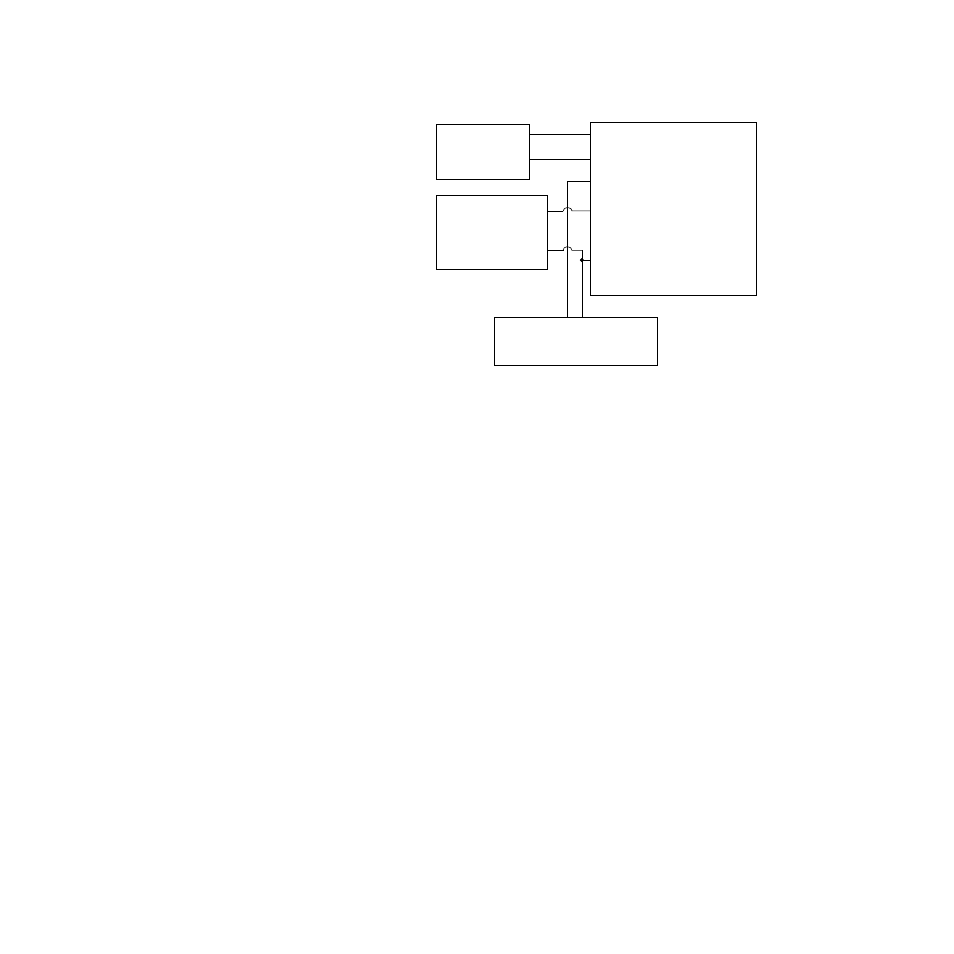

Figure 2.24 Dual DAC with Voltage Output

Wiring the Serial DAC

The Serial DAC provides a robust analog output signal. The

module converts the proprietary Serial DAC signal from the

controller’s open collector output in conjunction with the

clock signal to an analog current or voltage. See Figure 2.25

for wiring. The Serial DAC is user-configurable for voltage or

current output through firmware configuration. See Configur-

ing Serial DAC Outputs on page 176.
The Serial DAC optically isolates the controller’s control out-

put from the load. When a single Serial DAC is used, it may

be powered by the 5 Vdc found on the TB50 or by an external

power supply referenced to the controller’s power supply.

When using multiple Serial DACs, the controller cannot pro-

vide sufficient current; use the 5 Vdc output from the D8 pow-

er supply.

TB50 or TB18

PID Loop Output

Dual DAC

Vdc Load

12 to 24 Vdc Power Supply

+ -

+

+5V 1

+5V CTRL Supply

1

2

3

4

5

6

DZC CTRL PID Output
+12/24 Vdc External

Power Supply

+Vdc Load Connection

-mAdc Load Connection

-External Power

Supply/ Vdc Load

Connection

-
