Chapter 6: Menu and Parameter Reference
Series D8 User’s Guide
140
Watlow Anafaze
Doc. 0600-3120-2000
Heat/Cool Cycle Time
For a time-proportioning output, enter the cycle time in sec-
onds. For more information about cycle time, see Time Pro-
Values:
1 to 255 seconds
Default:
10
DeviceNet Object:
Output (65 hex)
Heat/Cool SDAC Signal
For a Serial DAC output, choose the type of output signal that
the Serial DAC will provide.
Values:
voltage (0) or current (1). Values in parentheses are
for communications.
Default:
voltage (0)
DeviceNet Object:
Output (65 hex)
Heat/Cool SDAC Low Signal
For a Serial DAC output, enter the low output signal level for
the Serial DAC. The Serial DAC converts 0 percent output
from the controller to this value.
Enter high and low values that match the input range of the
output device. For instance, if the output device has a 0 to 10
Vdc input range, then set SDAC low signal to .00 Vdc and set
SDAC hi signal
to 10.00 Vdc.
Values:
.00 to 9.90 Vdc (0 to 990) or 0.00 to 19.90 mA
(0 to 1990). This value must be less than the value of SDAC hi
signal
. Values in parentheses are for communications.
Default:
.00 Vdc (0) or 4.00 mA (400)
DeviceNet Object:
Output (65 hex)
Heat/Cool SDAC High Signal
For a Serial DAC output, enter the high output signal level for
the Serial DAC. The Serial DAC converts 100 percent output
from the controller to the value set here.
Enter the high and low values that match the input range of the
output device. For instance, if the output device has a 4 to 20
mA input range, then set SDAC hi signal to 20 mA and set
SDAC low signal
to 4 mA.
Values:
0.10 to 10.00 Vdc (10 to 1000) or 0.10 to 20.00 mA
(10 to 2000) This value must be greater than the value of
SDAC low signal
. Values in parentheses are for communica-
tions.
Default:
10.00 Vdc (1000) or 20.00 mA (2000)
DeviceNet Object:
Output (65 hex)

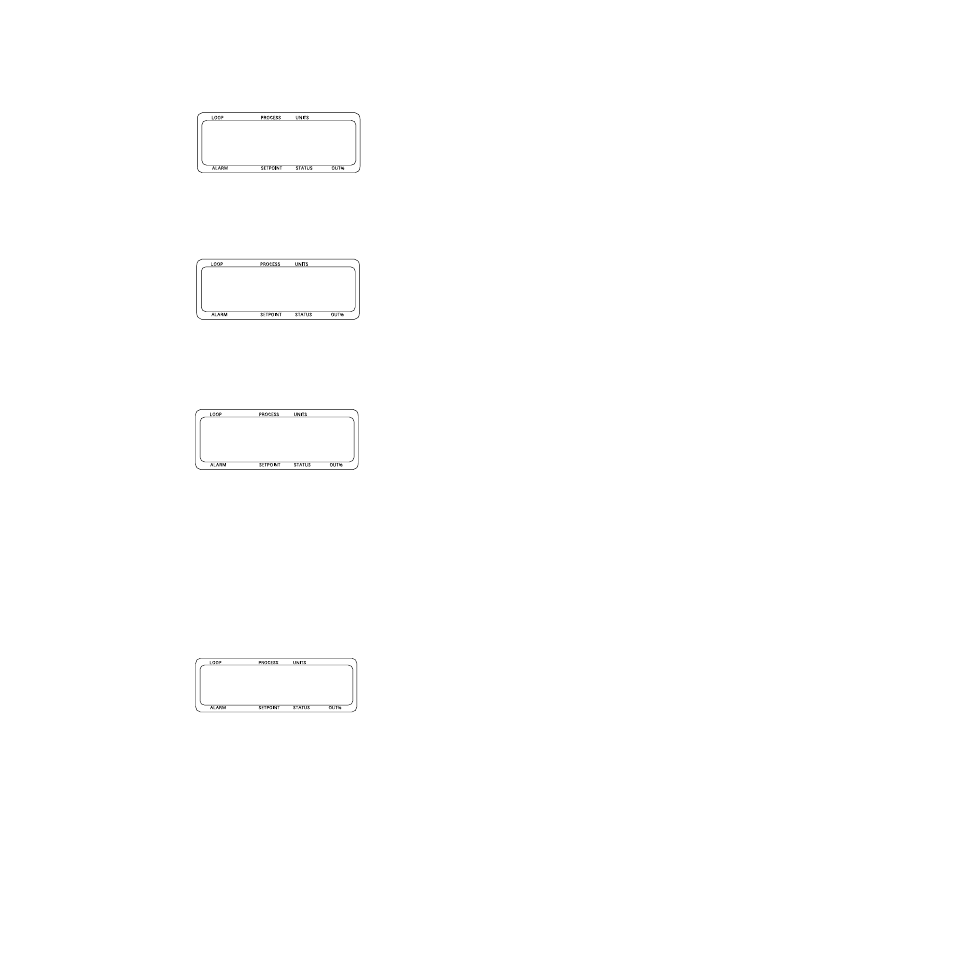

l01 Heat cycle r
time b 10sec
l01 Heat SDAC r
signal bvoltage
l01 Ht SDAC lowr
signal b .00vdc
l01 Ht SDAC hi r
signal b10.00vdc
