Chapter 2: Installation
Series D8 User’s Guide
16
Watlow Anafaze
Doc. 0600-3120-2000
Mounting the TB50
There are two ways to mount the TB50: Use the pre-installed
DIN rail mounting brackets or use the plastic standoffs.

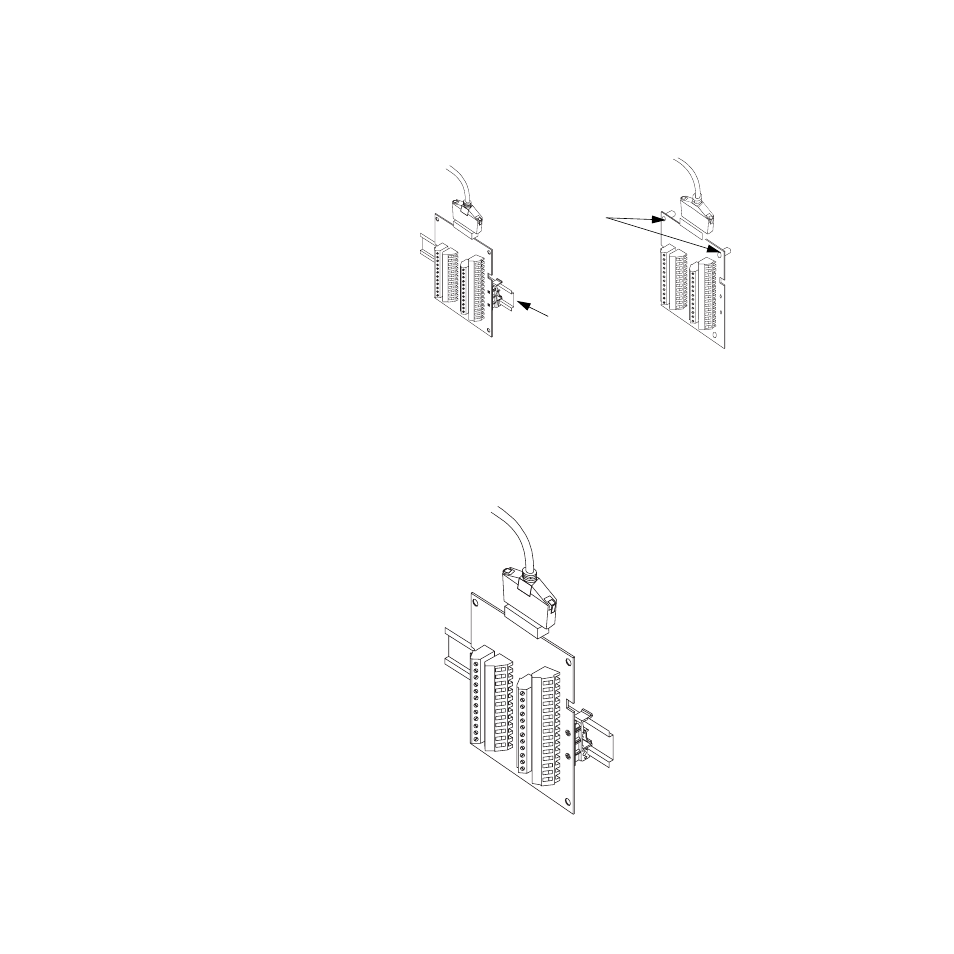

Figure 2.5
Mounting the TB50
DIN Rail Mounting
Snap the TB50 on to the DIN rail by placing the hook side on
the rail first, then pushing the snap latch side in place. See Fig-
Figure 2.6
TB50 Mounted on a DIN Rail (Front)
TB50
Mounted
with Standoffs
TB50
Mounted to
DIN Rail
