Series D8 User’s Guide Chapter 2: Installation
Doc. 0600-3120-2000 Watlow Anafaze 25
CAUTION! To prevent damage from incorrect connec-
tions, do not turn on the heater power or oth-
er output power before testing the
connections as explained in Testing the Sys-
tem on page 26.
NOTE! Do not connect the controller’s dc common
(COM) to earth ground . Doing so will defeat
the noise protection circuitry, making mea-
surements less stable.

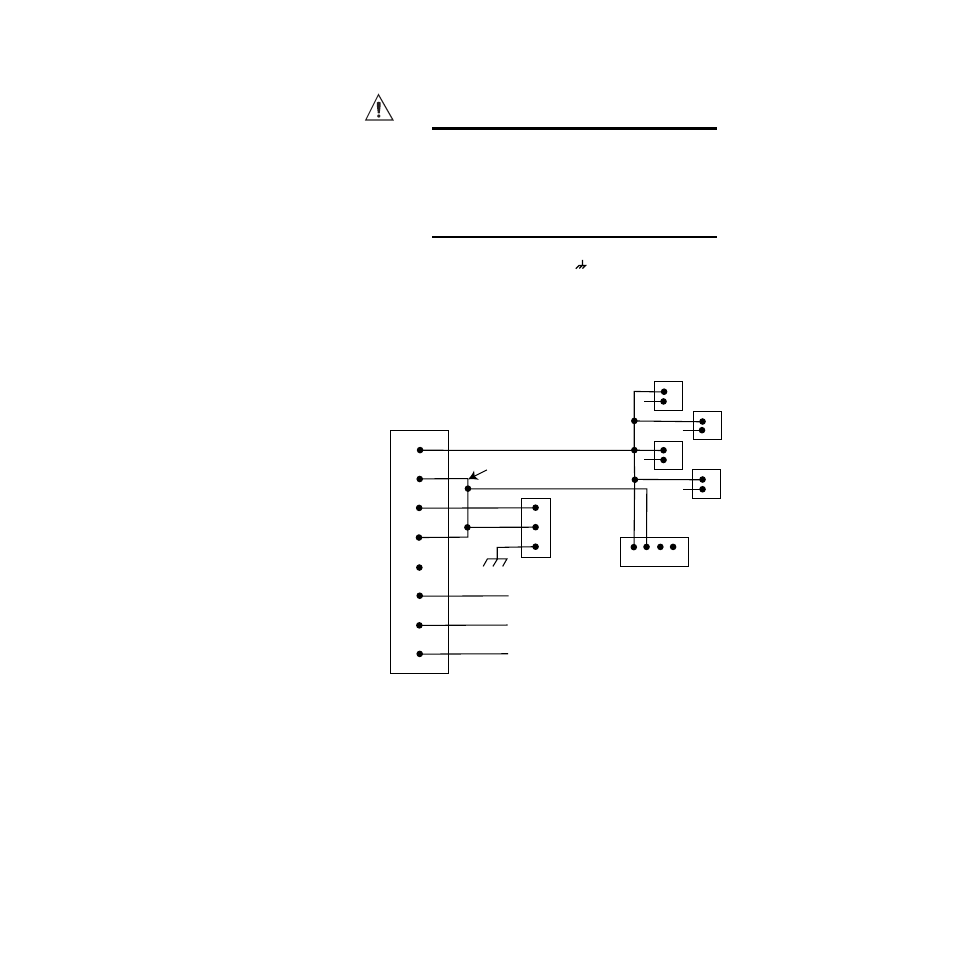

Figure 2.12 Power Connections with the D8
Power Supply
Connecting the TB50 to the D8
1. Connect the SCSI cable to the controller.
2. Connect the SCSI cable to the TB50.
+5V
Ground
AC Line
AC Neutral
5V COM
+15V
15V COM
-15V
green
black
white
solid-state relay (ssr)
ssr
ssr
ssr
+
+
+
+
-
-
-
-
Serial
digital-to-analog
converter
D8
Controller
1 2 3 4
common
ground
V+
L1
L2
add jumper
120/240V Å (ac)
