Camera interfaces
STINGRAY Technical Manual V4.4.4
94
Status LEDs

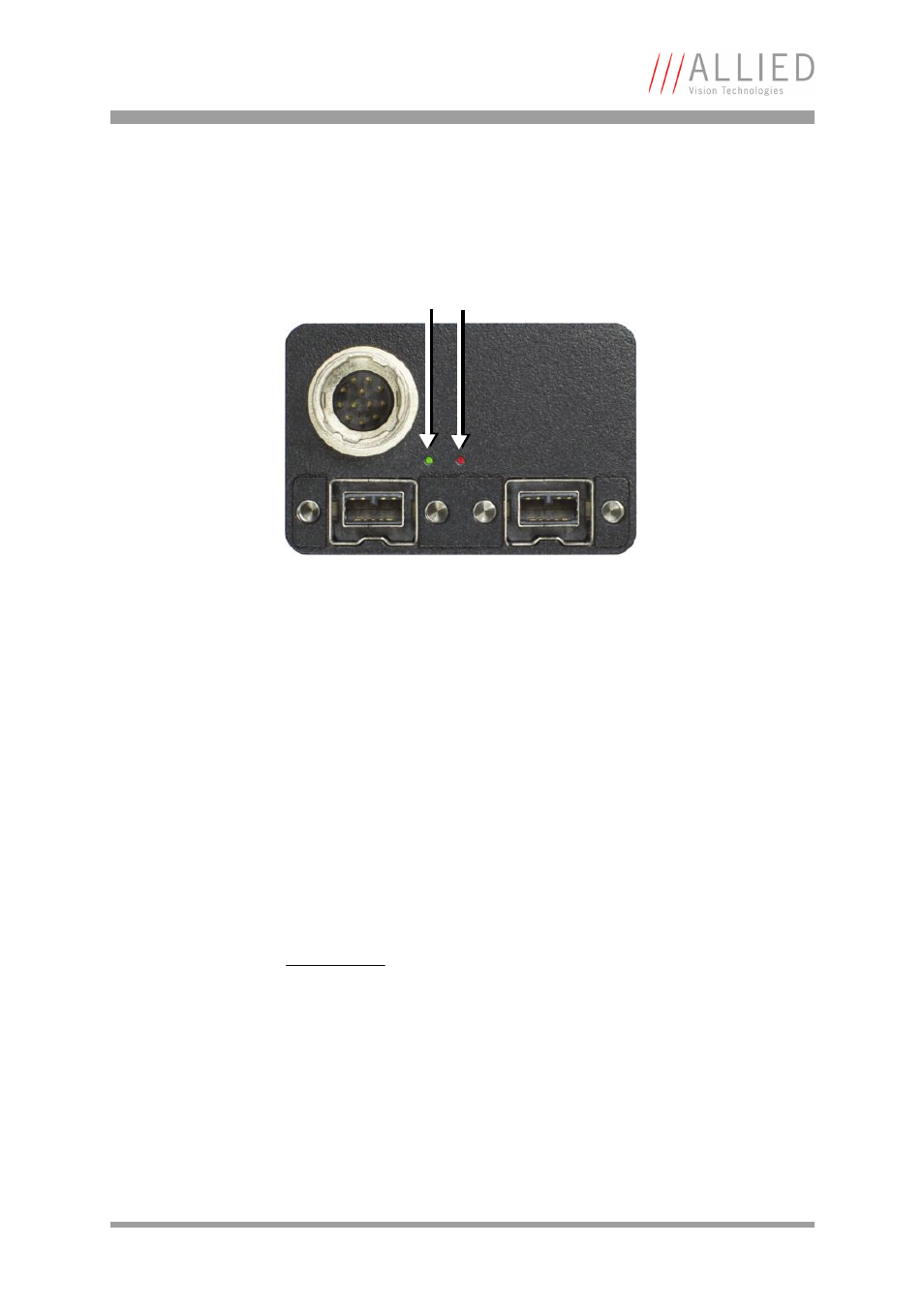

Figure 44: Position of status LEDs
Status LEDs
LED2 LED1
Each of the two LEDs is tricolor, showing green, red or orange.
RED means: red LED permanent on
RED blinking means: red LED blinks fast
+RED pulsing means: red LED is switched on for a short time. If the red LED
is already on, the LED will be switched off. The state of the other color of the
same LED could be on or off.
GREEN means: green LED permanent on
GREEN blinking means: green LED blinks fast
+GREEN pulsing means: green LED is switched on for a short time. If the
green LED is already on, the LED will be switched off. The state of the other
color of the same LED could be on or off.
+GREEN pulsing (inverted) means: green LED is switched off for a short time.
Note

Both LEDs can be switched off by:
• Setting bit [17] to 1, see Table 165: Advanced register:
Software feature control (disable LEDs) on page 335
• Activating Disable LED functionality check box in
SmartView (Adv3 tab).
Error conditions will be shown although LEDs are switched
off.
