Stingray F-201/F-201 BL: AOI frame rates
Formula 13: Stingray F-201: theoretical max. frame rate of CCD
max. frame rate of CCD
1
344.90µs
AOI height
54.81µs
1238
AOI height
–
7.14µs
+
+
---------------------------------------------------------------------------------------------------------------------------------------------------------------
=
* CCD = theoretical max. frame rate (in fps) of CCD according to given formula
Formula 14: Frame rates Stingray F-201 as function of AOI height [width=1624]
AOI height
CCD*
RAW8
RAW12
RAW16
YUV411
YUV422
RGB8
1234
14.70
14
14
14
14
14
10
1200
15.06
15
15
15
15
15
11
960
18.20
18
18
18
18
18
14
800
21.13
21
21
21
21
21
16
768
21.84
21
21
21
21
21
17
600
26.46
26
26
26
26
26
22
480
31.19
31
31
31
31
31
28
400
35.40
35
35
35
35
35
33
300
42.58
42
42
42
42
42
42
240
48.48
48
48
48
48
48
48
120
67.09
67
67
67
67
67
66
30
94.21
94
94
94
94
94
93
10
103.51
103
103
103
103
103
103
2
107.76
107
107
107
107
107
107
Table 102: Frame rates of Stingray F-201 as function of AOI height [width=1624]
0
10
20
30
40
50
60
70
80
90
100
110
120
0
50
100
150
200
250
300
350
400
450
500
550
600
650
700
750
800
850
900
950
1000 1050 1100 1150 1200 1250
F
ra
m
e ra
te
/
fp
s
AOI height / pixel

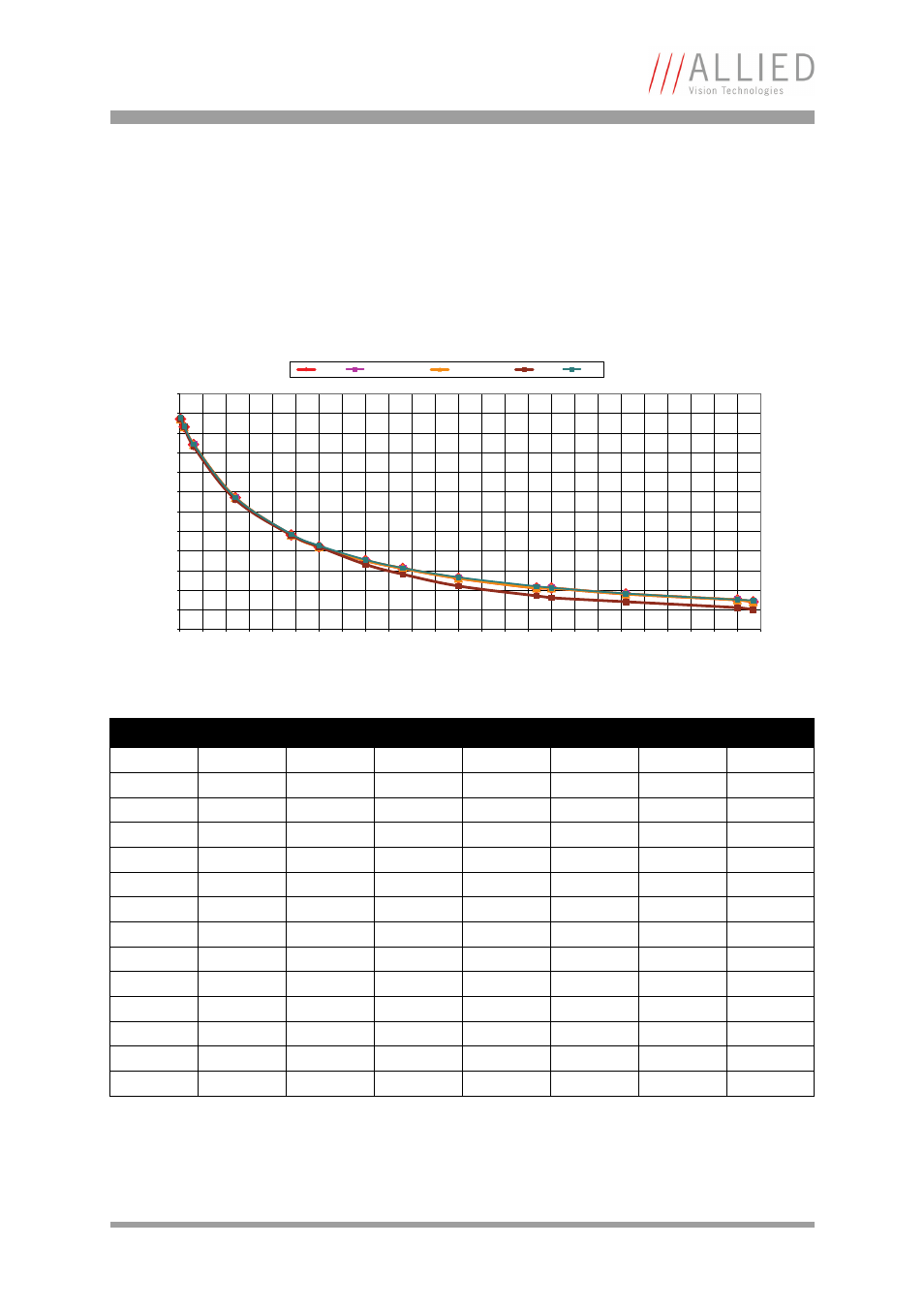

Frame rate = f(AOI height) *STINGRAY F-201*
RAW8
RAW12, YUV411
RAW16, YUV422
RGB8
CCD
