Video formats, modes and bandwidth
STINGRAY Technical Manual V4.4.4
249
Stingray F-145/F-145 BL: AOI frame rates
* CCD = theoretical max. frame rate (in fps) of CCD according to given formula
Formula 11: Stingray F-145: theoretical max. frame rate of CCD

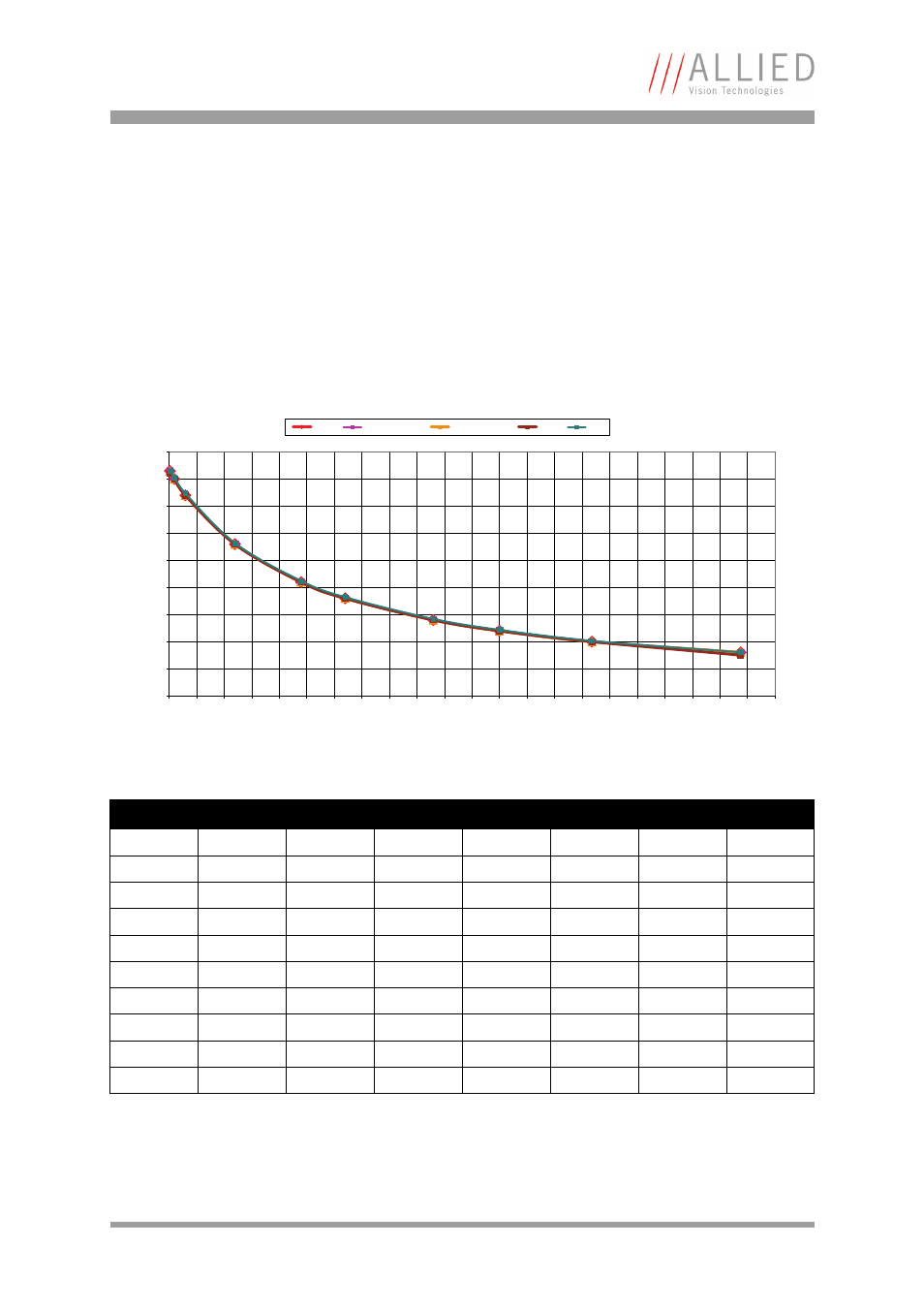

Figure 110: Frame rates Stingray F-145 as function of AOI height [width=1388]
AOI height CCD* RAW8 RAW12 RAW16 YUV411 YUV422 RGB8
1038 16.08 16 16 16 16 16 15
768 20.35 20 20 20 20 20 20
600 24.40 24 24 24 24 24 24
480 28.43 28 28 28 28 28 28
320 36.46 36 36 36 36 36 36
240 42.46 42 42 42 42 42 42
120 56.37 56 56 56 56 56 56
30 74.74 74 74 74 74 74 74
10 80.57 80 80 80 80 80 80
2 83.17 83 83 83 82 82 82
Table 100: Frame rates (fps) Stingray F-145 as function of AOI height (pixel) [width=1388]
max. frame rate of CCD
1
450.00µs AOI height 59.36µs

1051 AOI height –   10.92µs  + +
------------------------------------------------------------------------------------------------------------------------------------------------------------------ =
0
10
20
30
40
50
60
70
80
90
0 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100
F
ra
m
e ra
te
/
fp
s
AOI height / pixel
Frame rate = f(AOI height) *STINGRAY F-145*
RAW8 RAW12, YUV411 RAW16, YUV422 RGB8 CCD
