Description of the data path
STINGRAY Technical Manual V4.4.4
147
•
2 x H-binning
•
2 x V-binning
•
4 x H-binning
•
4 x V-binning
•
8 x H-binning
•
8 x V-binning
and the full binning modes:
•
2 x full binning (a combination of 2 x H-binning and 2 x V-binning)
•
4 x full binning (a combination of 4 x H-binning and 4 x V-binning)
•
8 x full binning (a combination of 8 x H-binning and 8 x V-binning)
Vertical binning
Vertical binning increases the light sensitivity of the camera by a factor of
two (4 or 8) by adding together the values of two (4 or 8) adjoining vertical
pixels output as a single pixel. This is done directly in the horizontal shift
register of the sensor.
Format_7 Mode_2
By default and without further remapping use Format_7 Mode_2 for
2 x vertical binning.
This reduces vertical resolution, depending on the model.

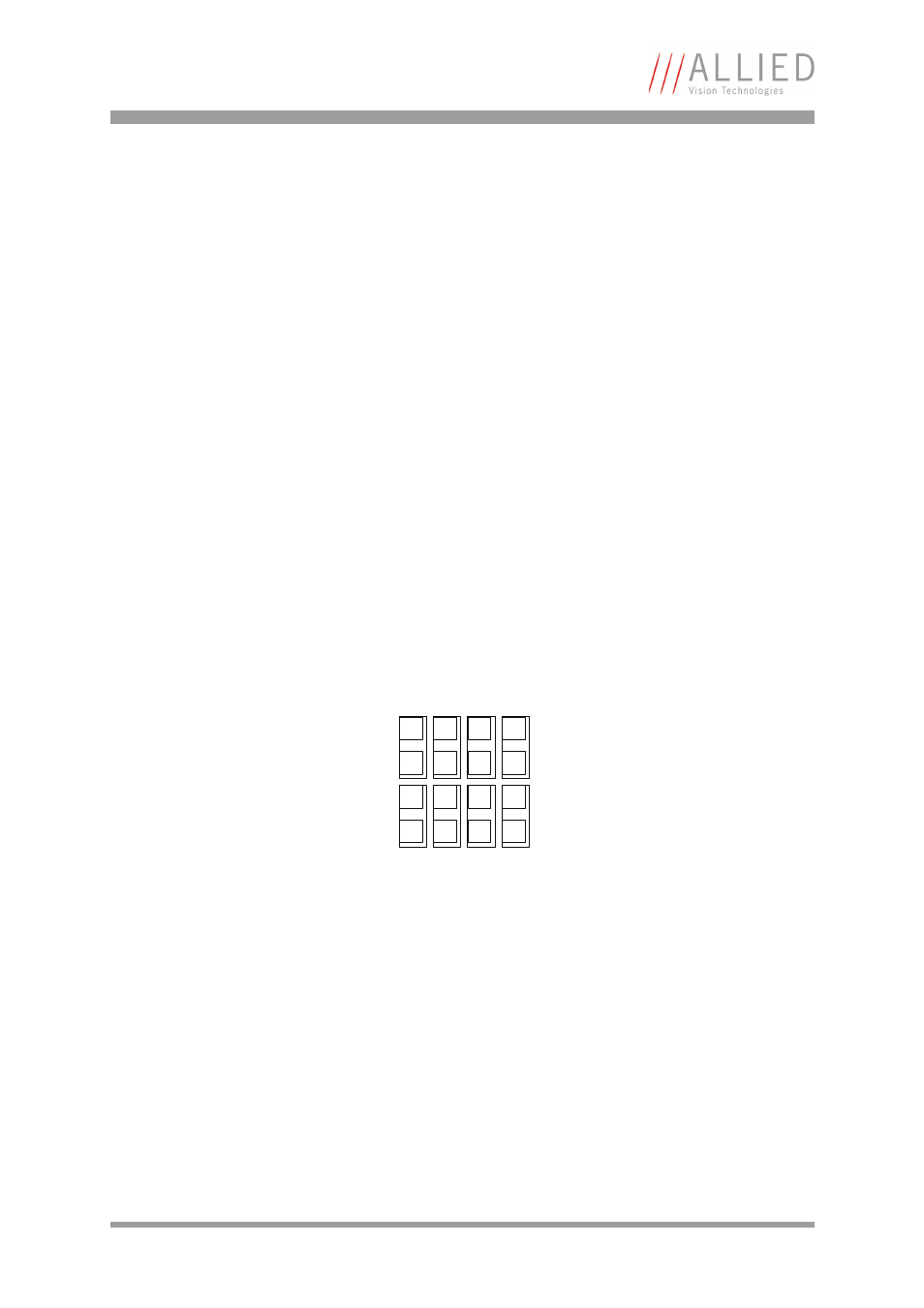

Figure 68: 2 x vertical binning
2 x vertical binning
