FireWire
STINGRAY Technical Manual V4.4.4
39
Example 1: 1394b bandwidth of Stingray cameras

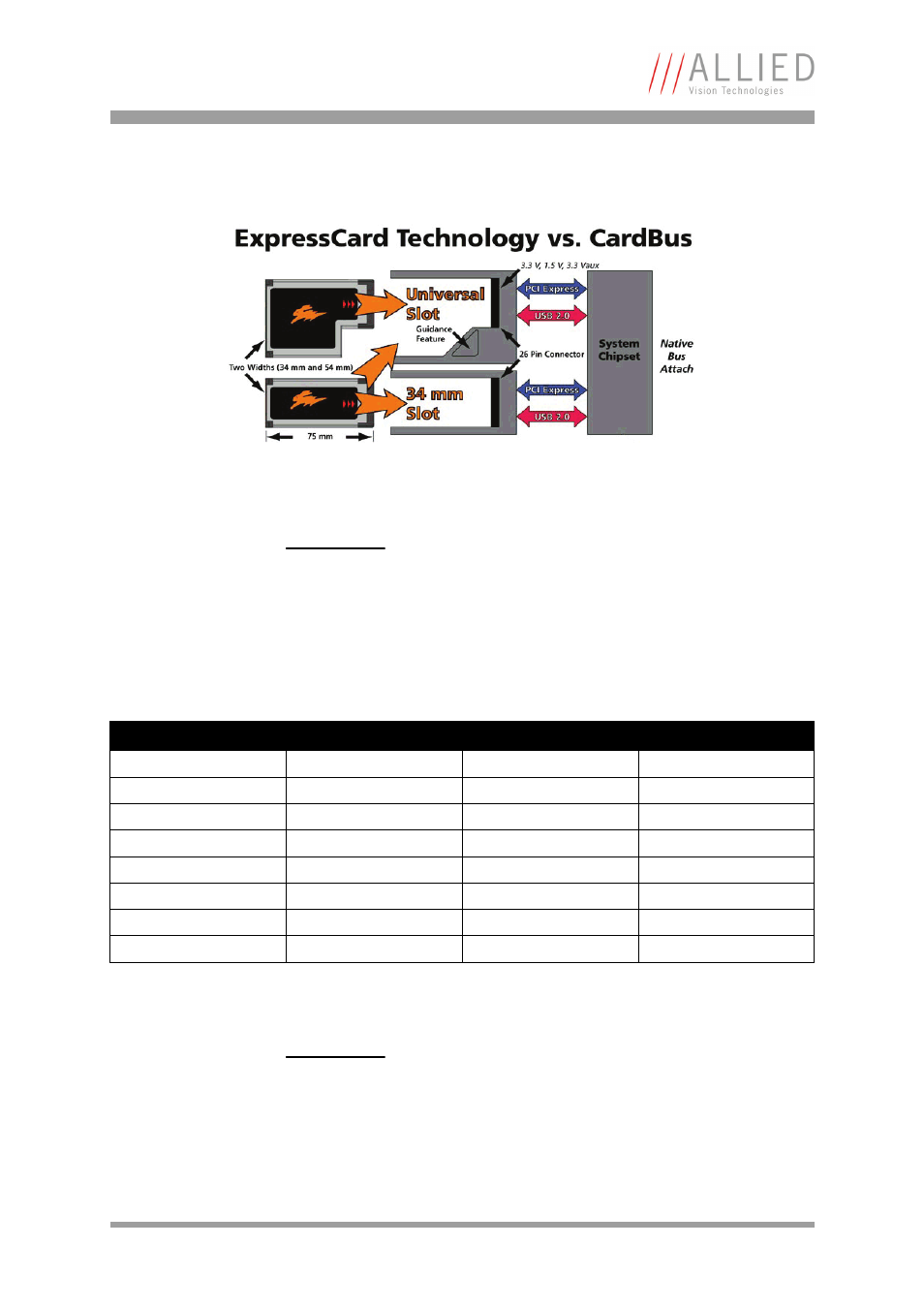

Figure 5: ExpressCard technology
www

ExpressCard is a new standard set by PCMCIA.
For more information visit:
http://www.expresscard.org/web/site/
STINGRAY model Resolution Frame rate Bandwidth
Stingray F-033 B/C 0.3 megapixel 84 fps 27.11 MByte/s
Stingray F-046 B/C 0.45 megapixel 61 fps 27.60 MByte/s
Stingray F-080 B/C 0.8 megapixel 31 fps 24.83 MByte/s
Stingray F-125 B/C 1.25 megapixel 30 fps 36.49 MByte/s
Stingray F-145 B/C 1.44 megapixel 16 fps 23.05 MByte/s
Stingray F-146 B/C 1.44 megapixel 15 fps 21.61 MByte/s
Stingray F-201 B/C 2 megapixel 14 fps 17.20 MByte/s
Stingray F-504 B/C 5 megapixel 9 fps 45.35 MByte/s
Table 4: Bandwidth of Stingray cameras
Note

All data are calculated using Raw8 / Mono8 color mode.
Higher bit depths or color modes will double or triple
bandwidth requirements.
