Description of the data path
STINGRAY Technical Manual V4.4.4
129
Horizontal mirror function
All Stingray cameras are equipped with an electronic mirror function, which
mirrors pixels from the left side of the image to the right side and vice versa.
The mirror is centered to the current FOV center and can be combined with
all image manipulation functions, like binning and shading.
This function is especially useful when the camera is looking at objects with
the help of a mirror or in certain microscopy applications.
Note

Configuration
To configure this feature in an advanced register: See
Table 149: Advanced register: Mirror on page 319.
Note

The use of the mirror function with color cameras and
image output in RAW format has implications on the
BAYER-ordering of the colors.

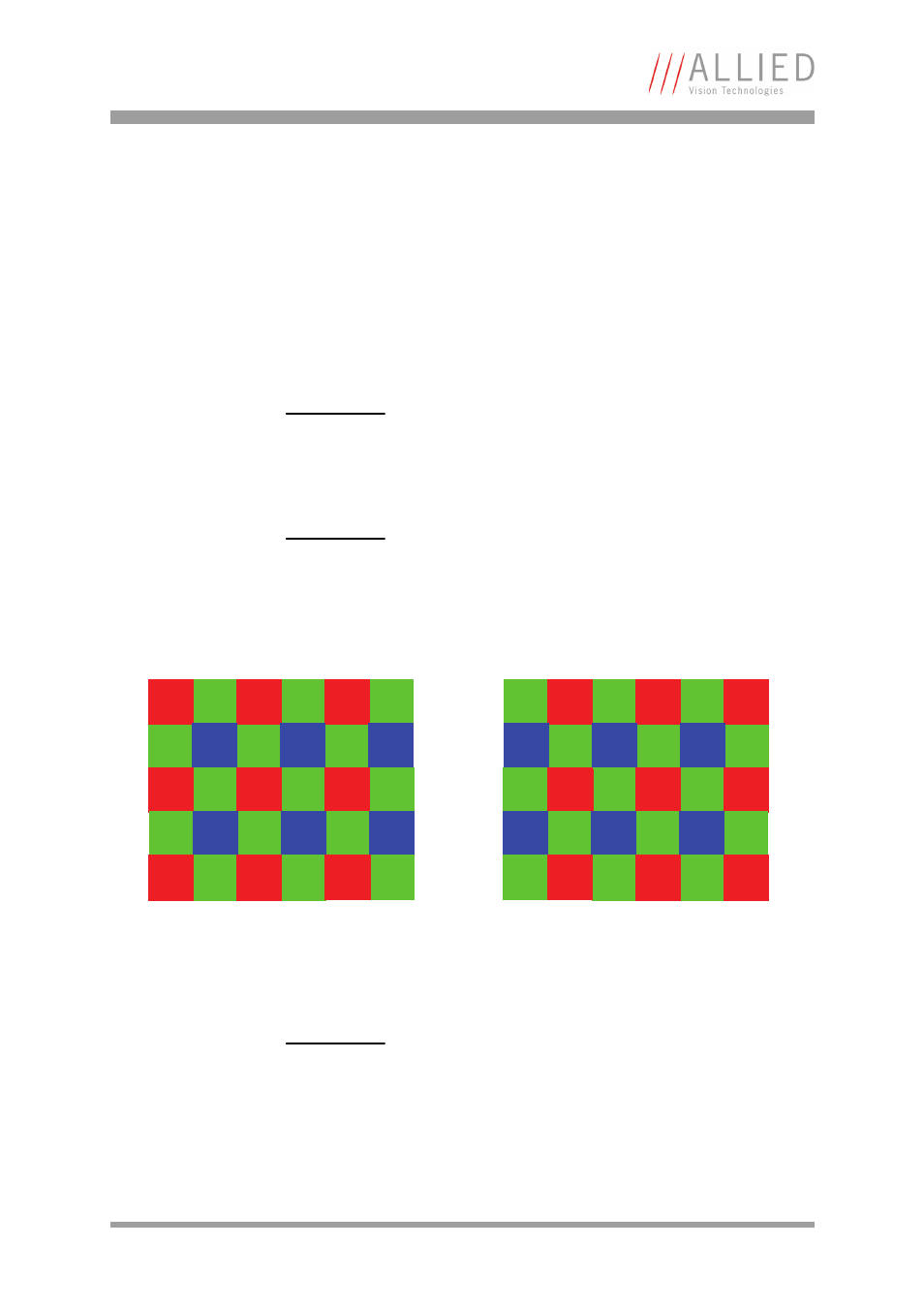

Figure 57: Mirror and Bayer order
Note

During switchover one image may be corrupted.
Mirror OFF: R-G-G-B (all Stingray color cameras) Mirror ON: G-R-B-G (all Stingray color cameras)
