STINGRAY Technical Manual V4.4.4
255
Test images
Loading test images
Test images for b/w cameras
Stingray b/w cameras have two test images that look the same. Both images
show a gray bar running diagonally.
• Image 1 is static.
• Image 2 moves upwards by 1 pixel/frame.
FirePackage Fire4Linux
1. Start SmartView.
2. Click the Edit settings button.
3. Click Adv1 tab.
4. In combo box Test images
choose Image 1 or another test
image.
1. Start cc1394 viewer.
2. In Adjustments menu click on
Picture Control.
3. Click Main tab.
4. Activate Test image check box
on.
5. In combo box Test images
choose Image 1 or another test
image.
Table 105: Loading test images in different viewers

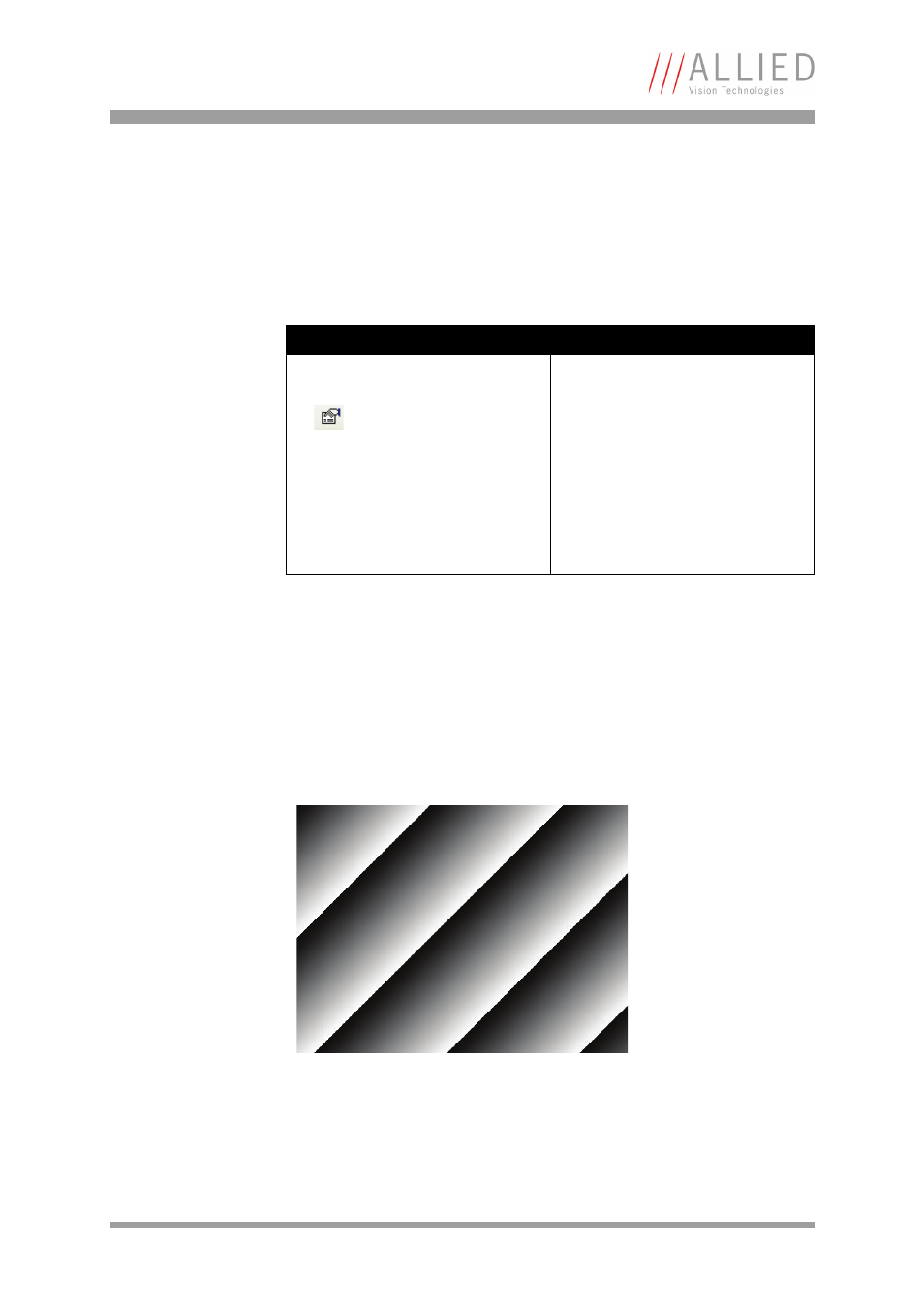

Figure 112: Gray bar test image
