Description of the data path
STINGRAY Technical Manual V4.4.4
138

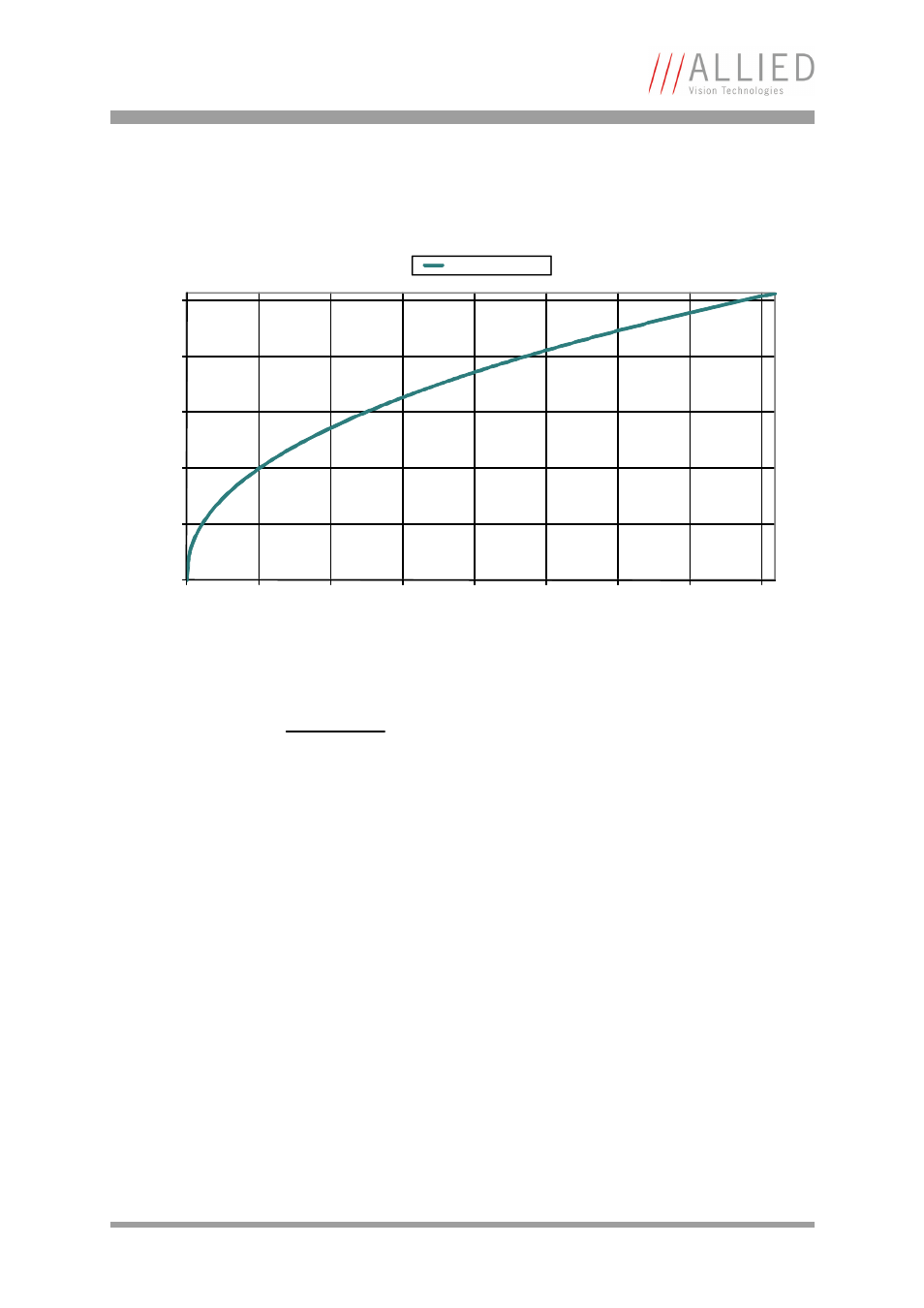

Figure 63: LUT with gamma=0.45
Note

• The input value is the most significant 12-bit value
from the digitizer.
• Gamma 1 (gamma=0.45) switches on the LUT. After
overriding the LUT with a user defined content, gamma
functionality is no longer available until the next full
initialization of the camera.
• LUT content is volatile if you do not use the user pro-
files to save the LUT.
0
200
400
600
800
1000
0 500 1000 1500 2000 2500 3000 3500 4000
O
u
tp
u
t
Input
Output = f (Input)
Stingray, gamma=0.45
