Description of the data path
STINGRAY Technical Manual V4.4.4
148

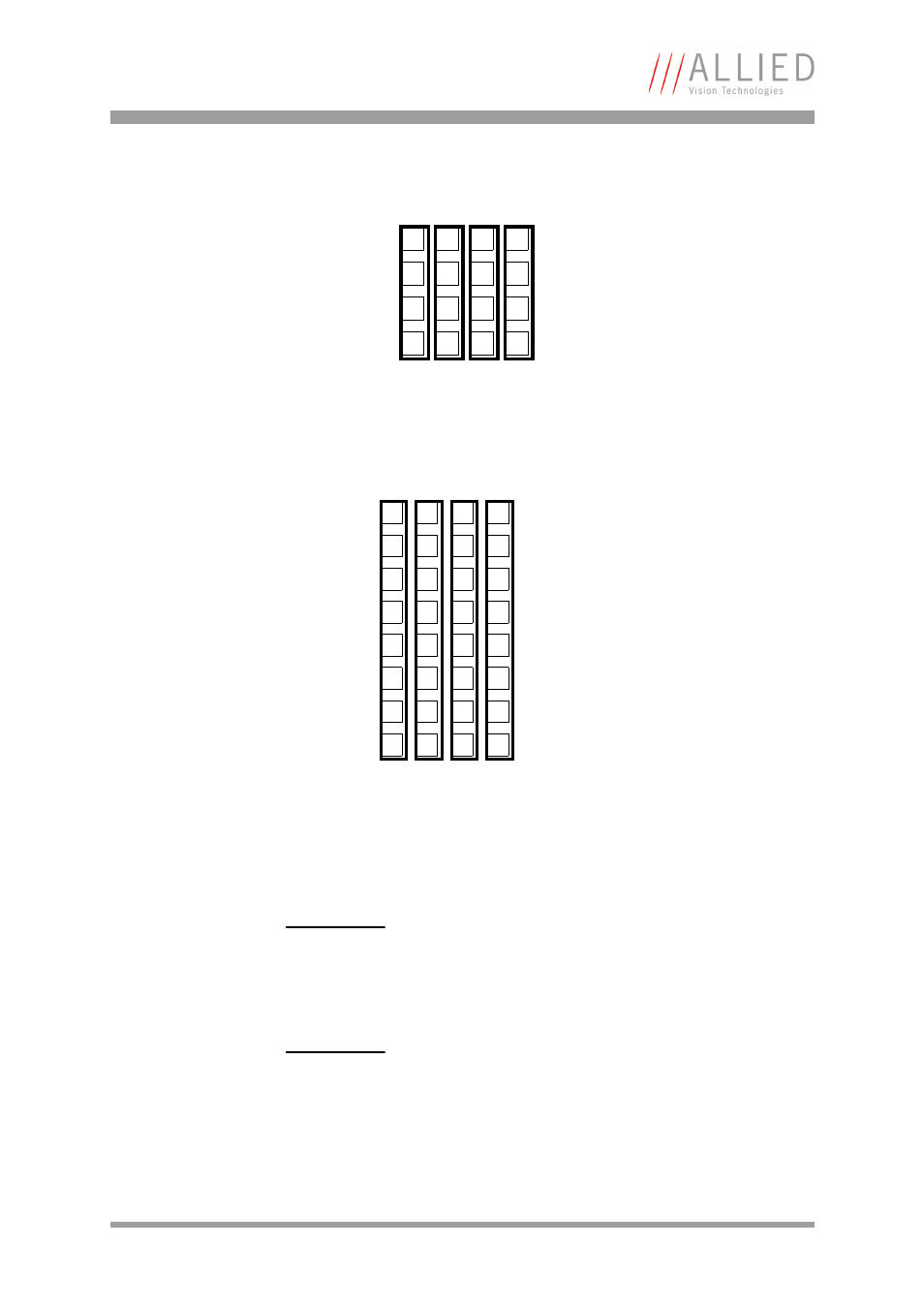

Figure 69: 4 x vertical binning
Figure 70: 8 x vertical binning
Note

Vertical resolution is reduced, but signal-to noise ratio
(SNR) is increased by about 3, 6 or 9 dB (2 x, 4 x or 8 x
binning).
Note

If vertical binning is activated the image may appear to
be over-exposed and may require correction.
4 x vertical binning (not F-201C, but F-504C)
8 x vertical binning (not F-201C, but F-504C)
