Video formats, modes and bandwidth
STINGRAY Technical Manual V4.4.4
247
Stingray F-080/F-080 BL: AOI frame rates
Formula 9: Stingray F-080: theoretical max. frame rate of CCD
max. frame rate of CCD
1
222µs AOI height 40.50µs

778 AOI height
–   7.00µs  + +
---------------------------------------------------------------------------------------------------------------------------------------------------- =
* CCD = theoretical max. frame rate (in fps) of CCD according to given formula

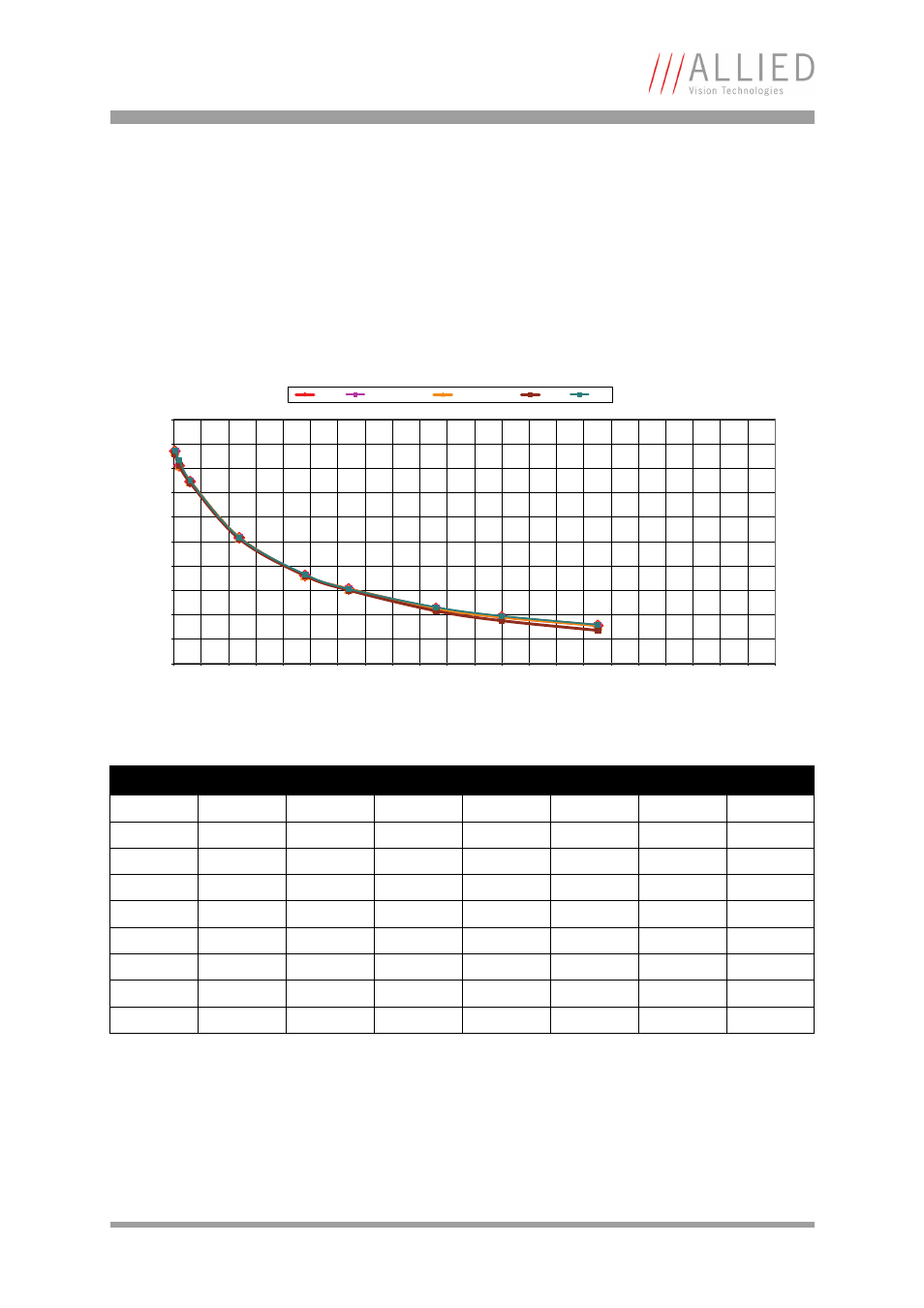

Figure 108: Frame rates Stingray F-080 as function of AOI height [width=1032]
AOI height CCD* RAW8 RAW12 RAW16 YUV411 YUV422 RGB8
776 31.56 31 31 31 31 31 27
600 38.81 38 38 38 38 38 35
480 45.98 45 45 45 45 45 43
320 61.02 61 61 61 60 60 60
240 72.95 72 72 72 72 72 72
120 103.22 103 103 103 102 102 102
30 149.86 149 149 149 148 148 148
10 166.58 162 162 162 162 162 162
2 174.37 174 174 174 172 172 172
Table 98: Frame rates (fps) of Stingray F-080 as function of AOI height (pixel) [width=1032]
0
20
40
60
80
100
120
140
160
180
200
0 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100
F
ra
m
e ra
te
/
fp
s
AOI height / pixel
Frame rate = f(AOI height) *STINGRAY F-080*
RAW8 RAW12, YUV411 RAW16, YUV422 RGB8 CCD
