Camera dimensions

STINGRAY Technical Manual V4.4.4

74

Tripod adapter

This five hole tripod adapter (AVT order number E 5000007) ...

... can be used for Stingray as well as for Marlin. The original four hole
adapter of the Marlin should not be used with Stingray.

... is only designed for standard housings, but not for the angled head
versions.

Note

If you need a tripod adapter for angled head versions,
please contact AVT support.

Body size: 56 mm x 32 mm x 10 mm (L x W x H)

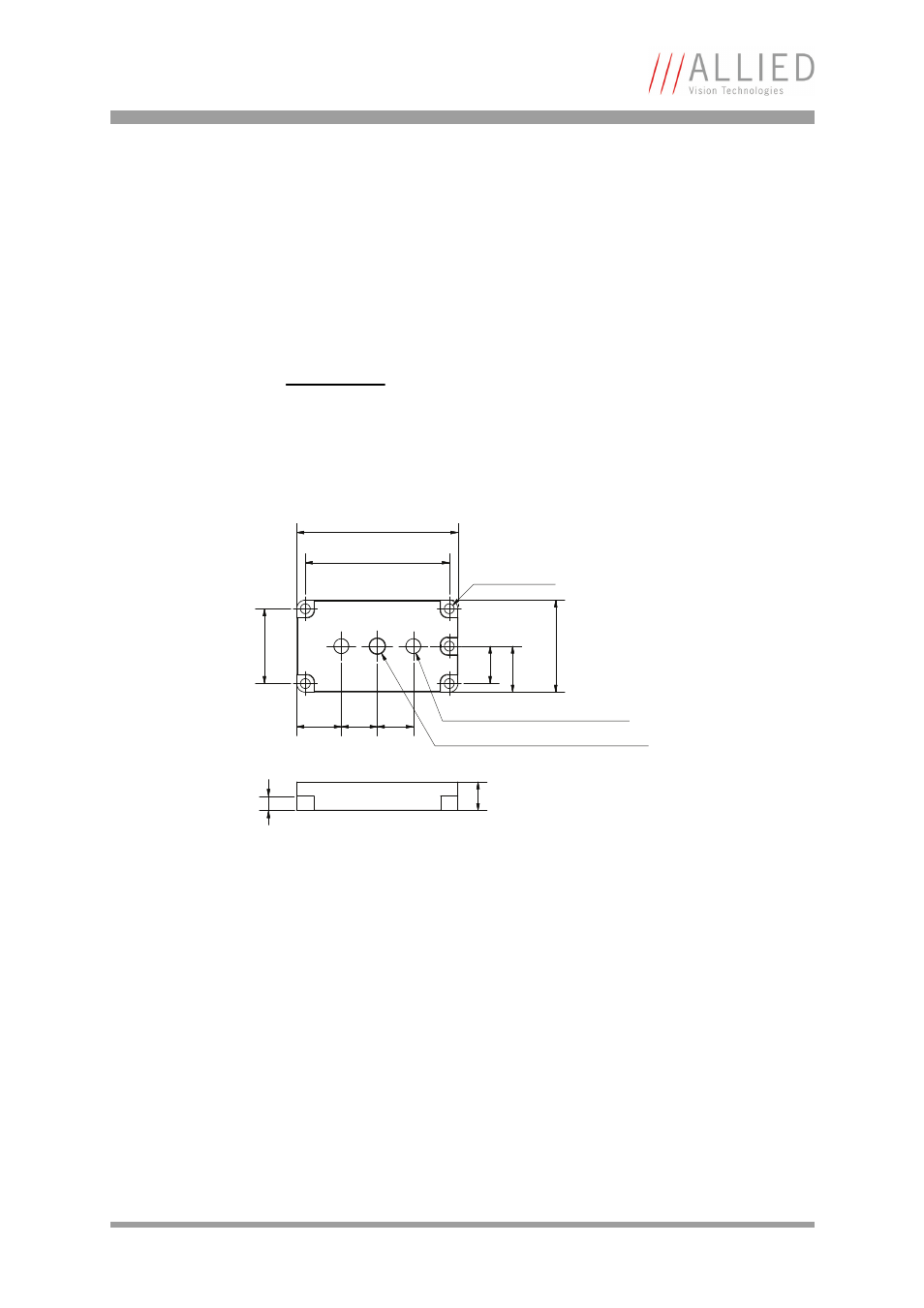

Figure 25: Tripod dimensions

2

6

50

3

2

1

3

1

0

5

P

3.4 (5x)

UNC 1/4-20, 8 mm thread depth

M6, 6 mm thread depth (2x)

56

12.5 12.5

15.5

1

6
