Video formats, modes and bandwidth
STINGRAY Technical Manual V4.4.4
237
In addition to the area of interest (AOI), some other parameters have an
effect on the maximum frame rate:

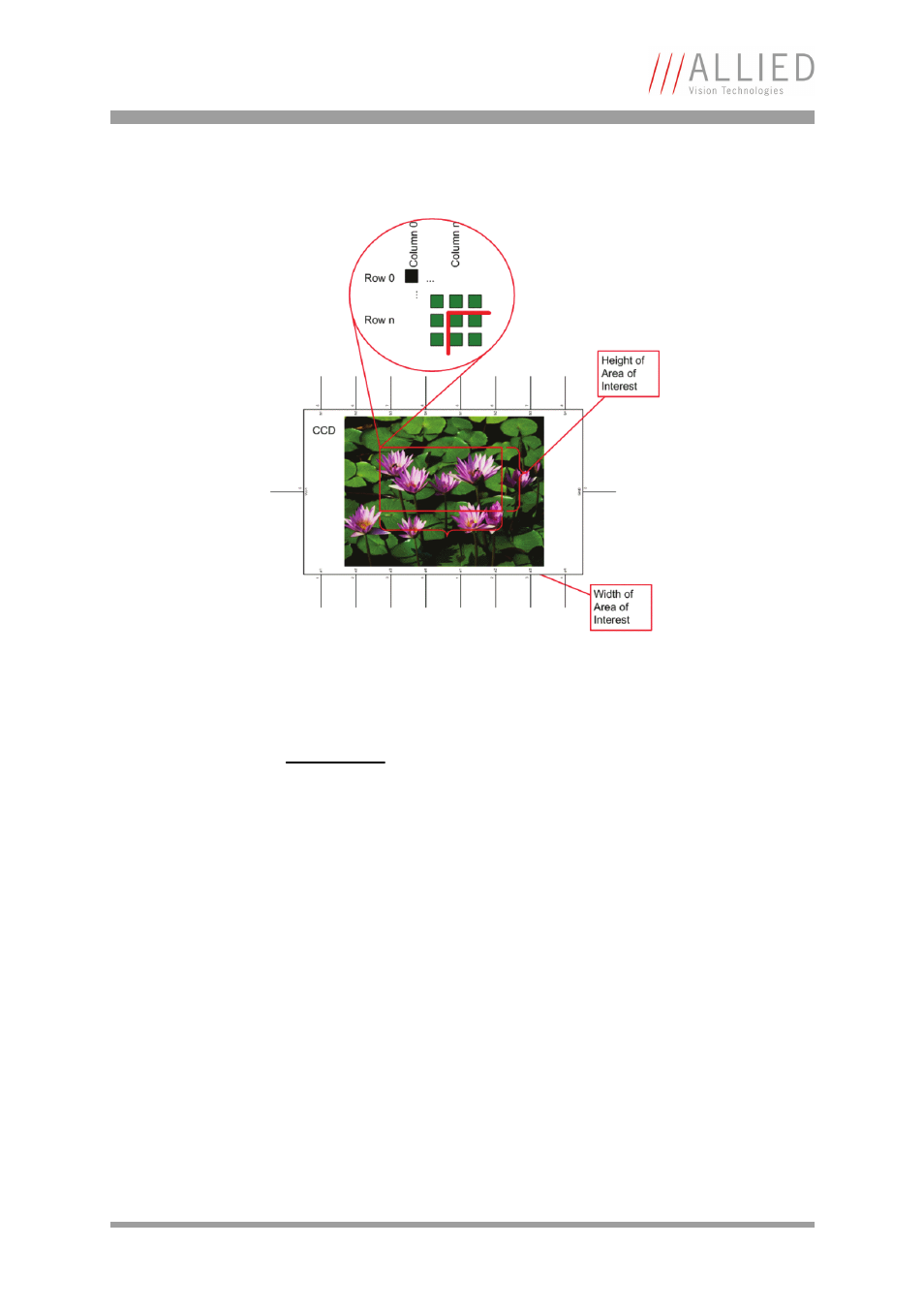

Figure 104: Area of interest (AOI)
Note
•
The left position + width and the upper position
+ height may not exceed the maximum resolution of the
sensor.
•
The coordinates for width and height must be divisible
by 4.
