Description of the data path
STINGRAY Technical Manual V4.4.4
140
Defect pixel correction
The mechanisms of defect pixel correction are explained in the following
drawings. All examples are done in Format_7 Mode_0 (full resolution).
The first two examples are explained for b/w cameras, the third example is
explained for color cameras.
The X marks a defect pixel.

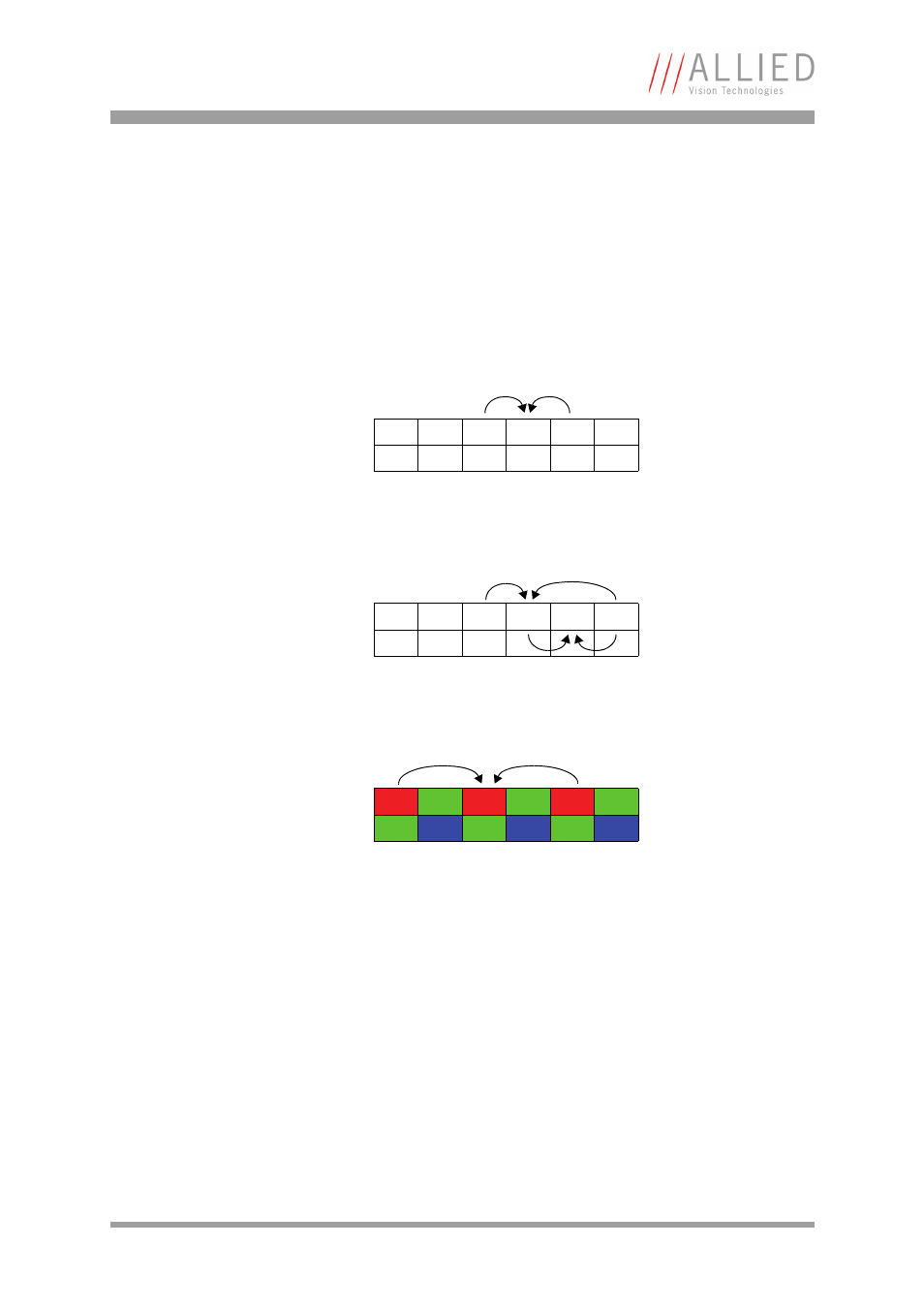

Figure 65: Mechanisms of defect pixel correction
1. example X
b/w
2. example X X
b/w
3. example R G R X G R G
color G B G B G B
50% brightness
of pixel value 50% brightness
of pixel value
50% brightness
of pixel value 50% brightness
of pixel value
50% brightness
of pixel value 50% brightness
of corrected value
50% brightness
of pixel value 50% brightness
of pixel value
