Hierarchy Display
3Ć38
MTG100 & MTG300 MPEG Generator User Manual
Start/End Packet Dialog Box. When you select the Start/End Packet... command
from the Bezel menu on your MTG300 MPEG generator, the Start/End Packet
dialog box appears as shown in Figure 3-14. Use the arrow buttons to highlight
the desired parameter, and the use the rotary knob or hexadecimal keypad to set
the value. Press the Apply bezel button to apply changes.
Table 3-35 describes the Start/End Packet dialog box parameters and Table 3-36
describes the Bezel menu commands associated with the dialog box.

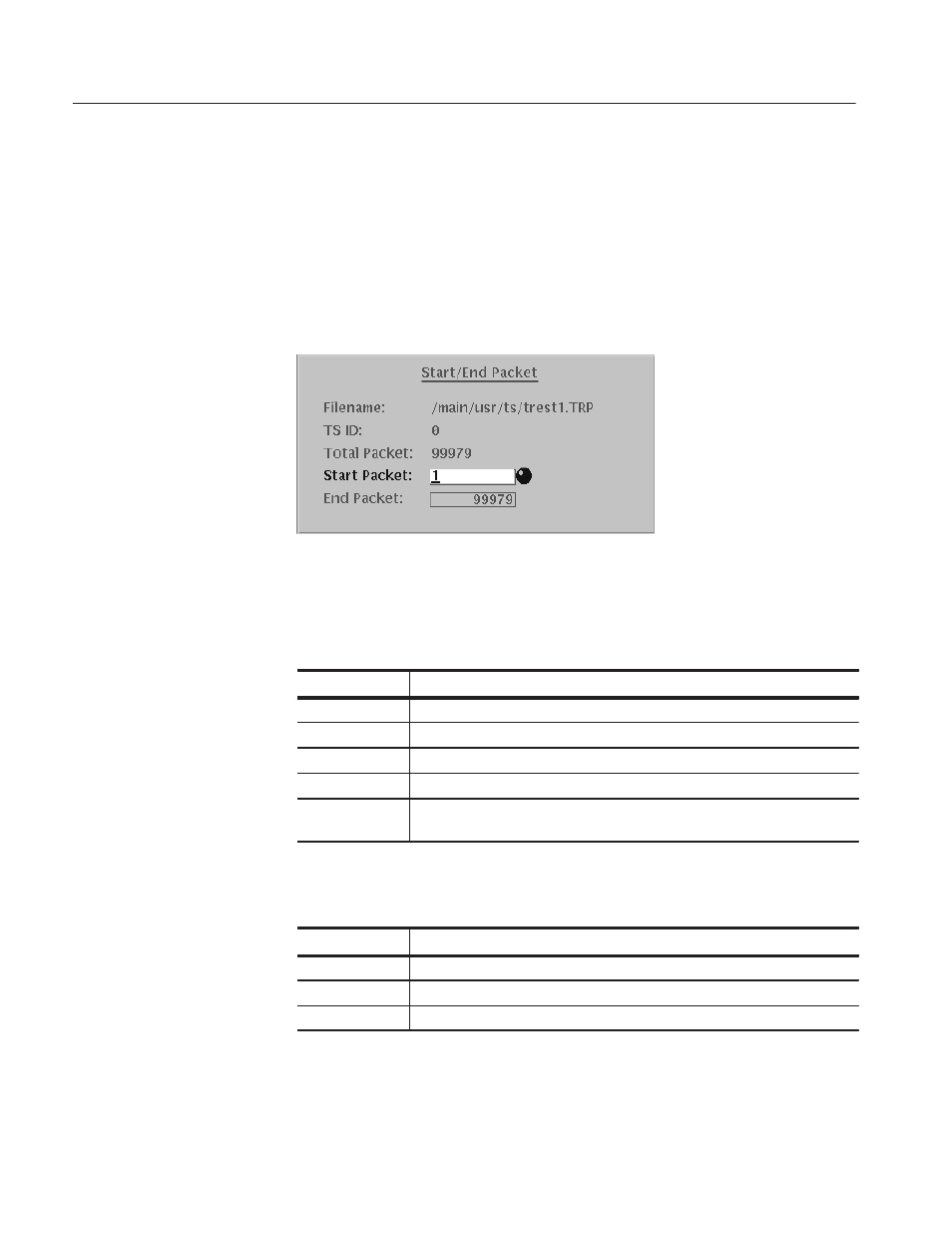

Figure 3Ć14: Start/End Packet dialog box
Table 3Ć35: Start/End Packet dialog box parameters
Parameter Description
Finename Shows the directory path and file name of the transport stream.
TS ID Shows the TS ID of the transport stream.
Total Packet Shows the total number of packets in the transport stream.
Start Packet Sets the number of the start packet in the transport stream.
End Packet Sets the number of the end packet in the transport stream. The number of
(End Packet-Start Packet) is need to be more than 5000 packets.
Table 3Ć36: Bezel menu commands for the Start/End Packet dialog box
Command Description
Default Resets all of the dialog box settings back to the factory default settings.
Cancel Cancels any setting changes and closes the dialog box.
Apply Applies the settings to the transport stream output.
