Pull-down Menus
3Ć20
MTG100 & MTG300 MPEG Generator User Manual
Table 3-20 describes the Network dialog box parameters and Table 3-21
describes the Bezel menu commands associated with the dialog box.

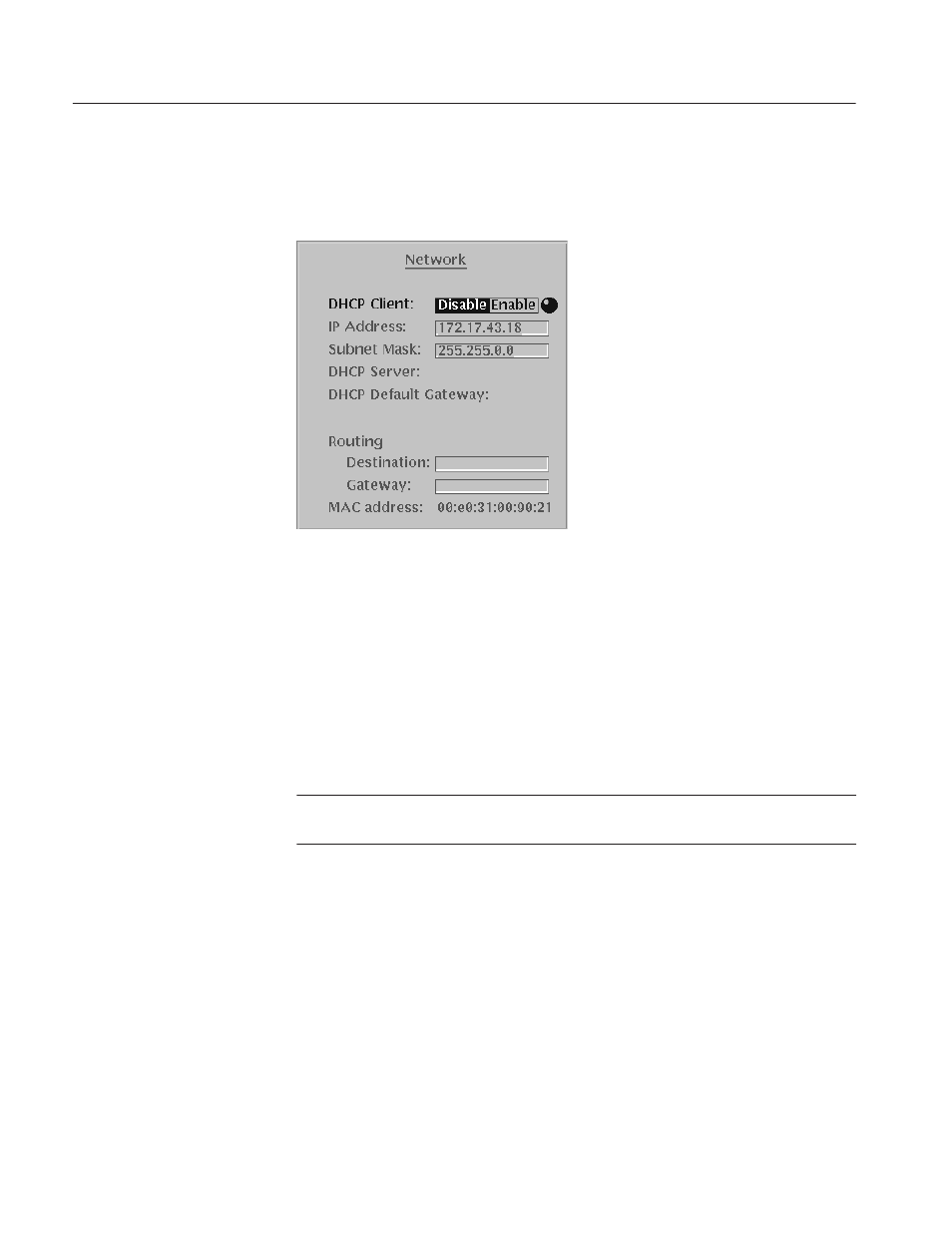

Figure 3Ć9: Network dialog box
The settings you enter in the Network dialog box depend on how you connect the
MPEG generator to the remote PC. You can connect the MPEG generator
directly to a single PC or you can connect it to your local Ethernet network
where the MPEG generator can be accessed by network PCs running the
MTG Comm
+
application.
If you connect the MPEG generator directly to a single PC, use the following
procedure to set the Network dialog box parameters:
NOTE. You must exit the Network dialog box before your setting changes will
take effect.
1. Set the DHCP Client parameter to Disable.
2. Set the IP Address parameter to be the same IP address as the PC’s address
except for the last number. The last number must be different than the last
number in the PC’s IP address.
3. Set the Subnet Mask parameter to be the same subnet mask used by the PC.
Do not enter a number if the PC does not have a subnet mask.
4. You do not need to enter a Routing Destination or Routing Gateway if you
are directly connected to a single PC.
