Hierarchy Display
3Ć36
MTG100 & MTG300 MPEG Generator User Manual
TS Head Stress Dialog Box. When you select the Stress TS Head... command
from the Bezel menu on your MTG300 MPEG generator, the TS Head Stress
dialog box appears as shown in Figure 3-13. The stress tests activated from this
dialog box are momentary and can only be applied when this dialog box is
displayed. Any transport stream setting changes applied by a test revert to their
prior state when the test is completed.
Use the arrow buttons to highlight the test you want to execute, and then press
the Effect Check bezel button to enable the test. A check mark (
n) appears by
the enabled test. Only one test can be executed at a time. Press the Apply bezel
button to execute the enabled test. If you set to 0 in the Count box, the selected
test is repeated infinitely.
Table 3-33 describes the TS Head Stress dialog box parameters and Table 3-34
describes the Bezel menu commands associated with the dialog box.

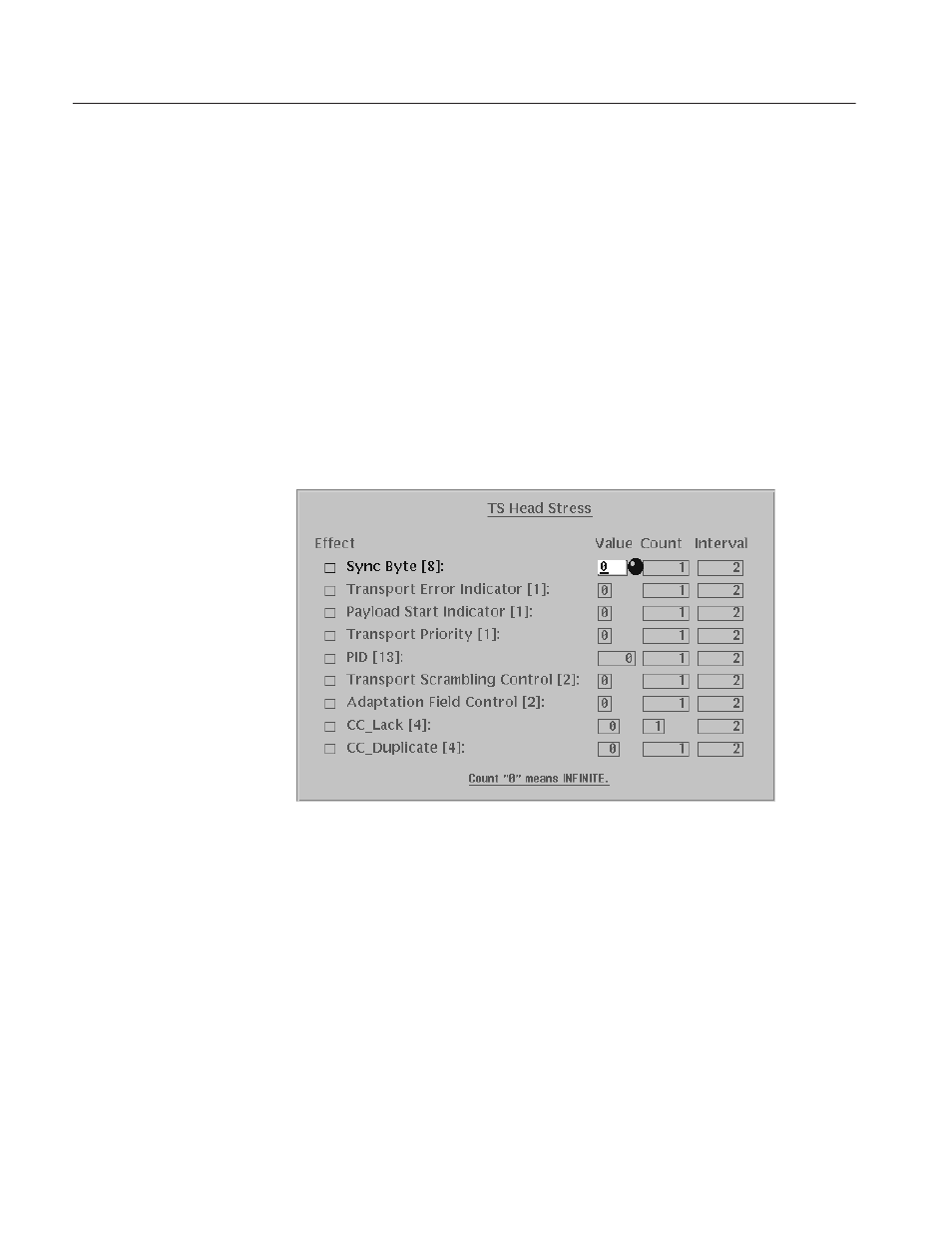

Figure 3Ć13: TS Head Stress dialog box
