Appendix C: Using the ReMux Application
MTG100 & MTG300 MPEG Generator User Manual
CĆ9

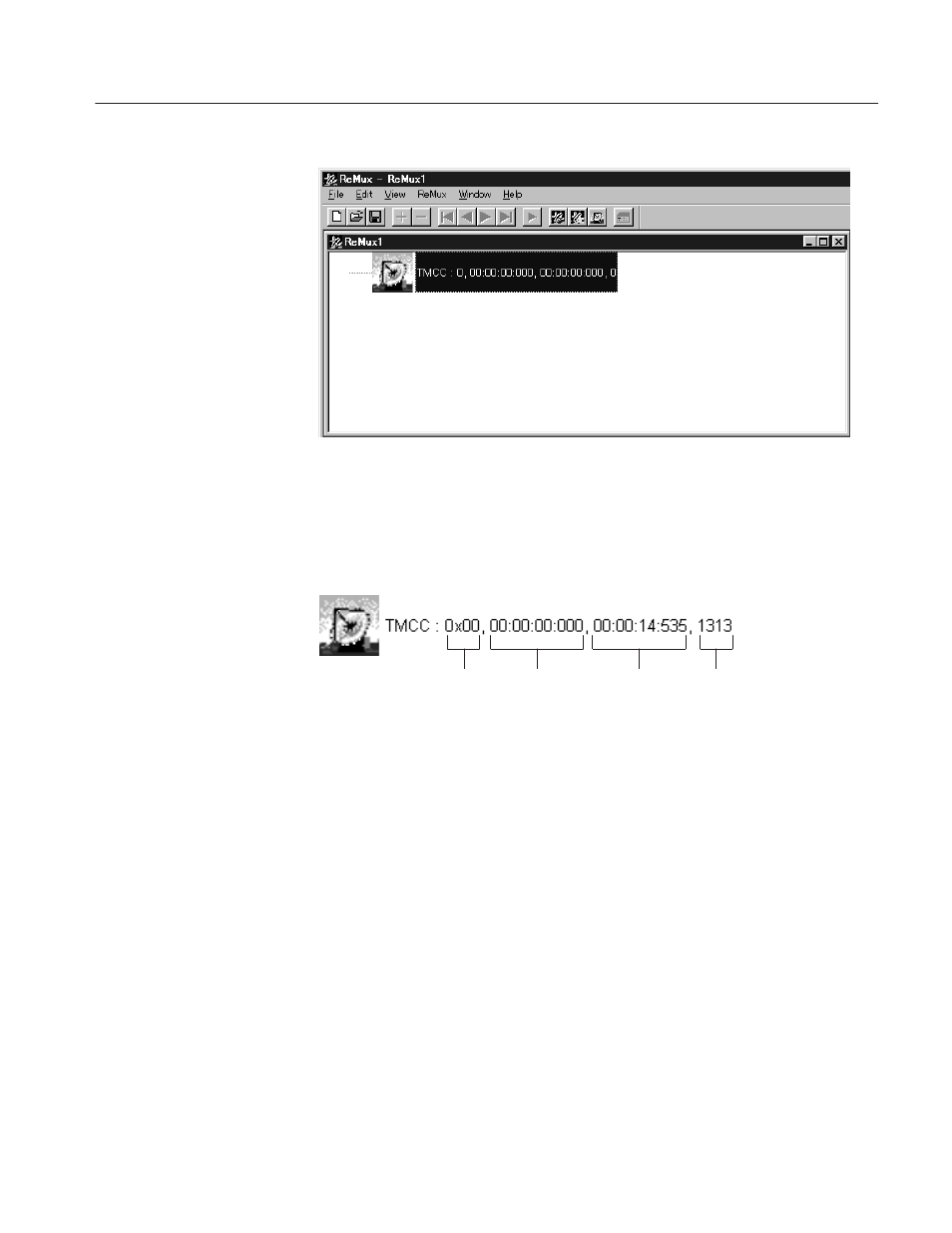

Figure CĆ5: Editing window for the Make SĆTMCC TS mode
The information displayed at the right side of the TMCC icon has following
meaning:
Start time Stop time Number of super
frames
Change
information
Selecting a Transport Stream File.
3. Select Add from the Edit pull-down menu or clock the + (Add) button on
the toolbar to open the Open dialog box.
4. In the dialog box, select a transport stream file, and then click the Open
button to open the Edit TS Information dialog box shown in Figure C-6.
