Operating Basics
MTG100 & MTG300 MPEG Generator User Manual
2Ć11
A corresponding dialog box will be
displayed when this command is
executed
Highlight bar representing the currently
selected command
Selected command from
command list subsection

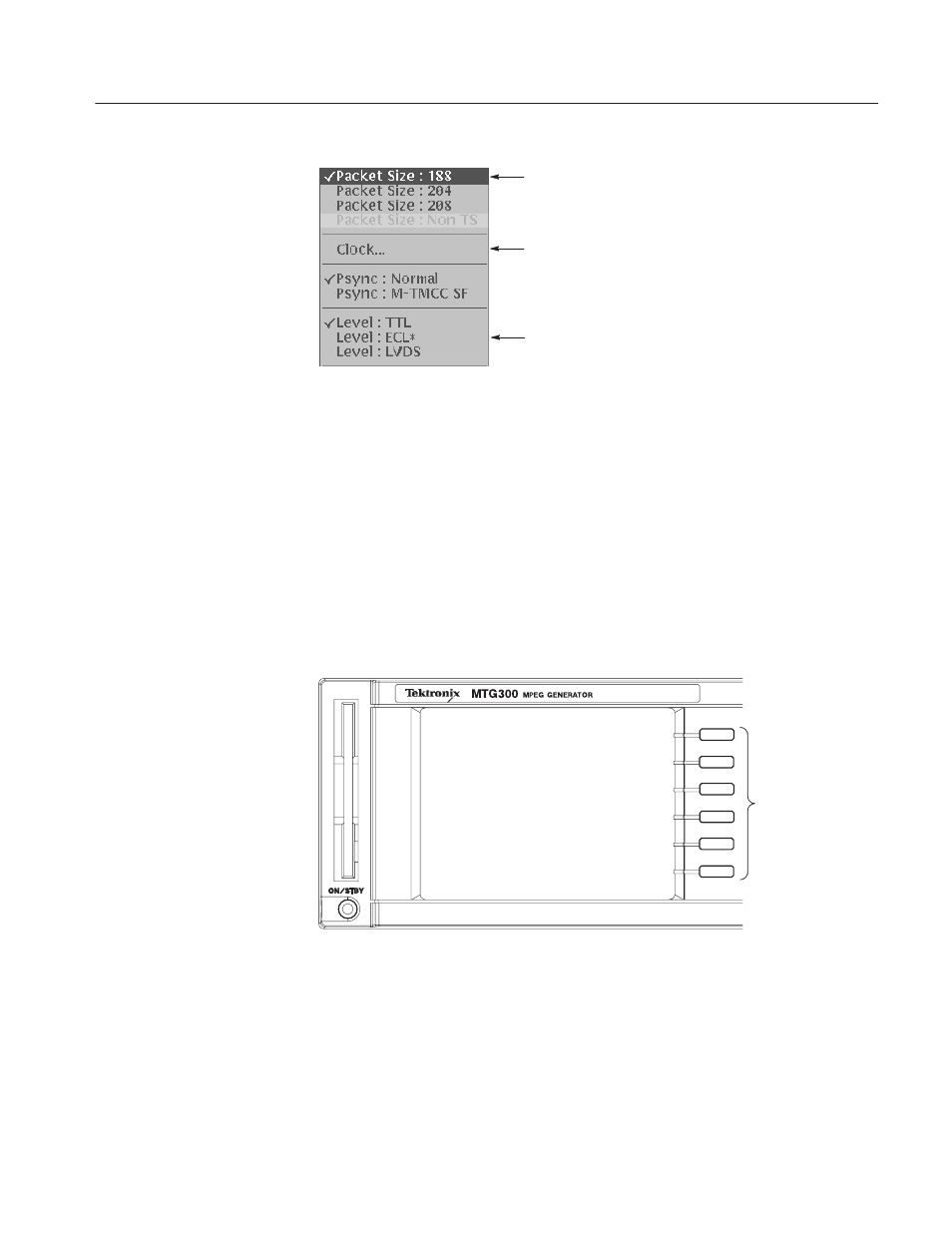

Figure 2Ć7: Display states of the pullĆdown menu commands
The Bezel menu displays a variety of commands. The commands change to
correspond to the transport stream item selected by the Icon cursor in the
hierarchy display, or to correspond to functions in a displayed dialog box.
Accessing Bezel Menu Commands. The Bezel menu appears at the right side of
the screen. When you move the Icon cursor through the hierarchy items in the
display, the Bezel menu commands change to correspond with the selected
transport stream item. Select the desired Bezel menu command by pressing the
associated bezel button (see Figure 2-8).
Bezel
buttons
Figure 2Ć8: Front panel showing the Bezel menu controls
Display States of the Bezel Menu Commands. The Bezel menu commands can
have the following three display states as shown in Table 2-2:
Bezel Menu
