Operating Basics
2Ć14
MTG100 & MTG300 MPEG Generator User Manual
3. Enter all of the desired characters then press the OK bezel button to
complete the text entering process. Press the Cancel bezel button to cancel
text input and return to the previous display.

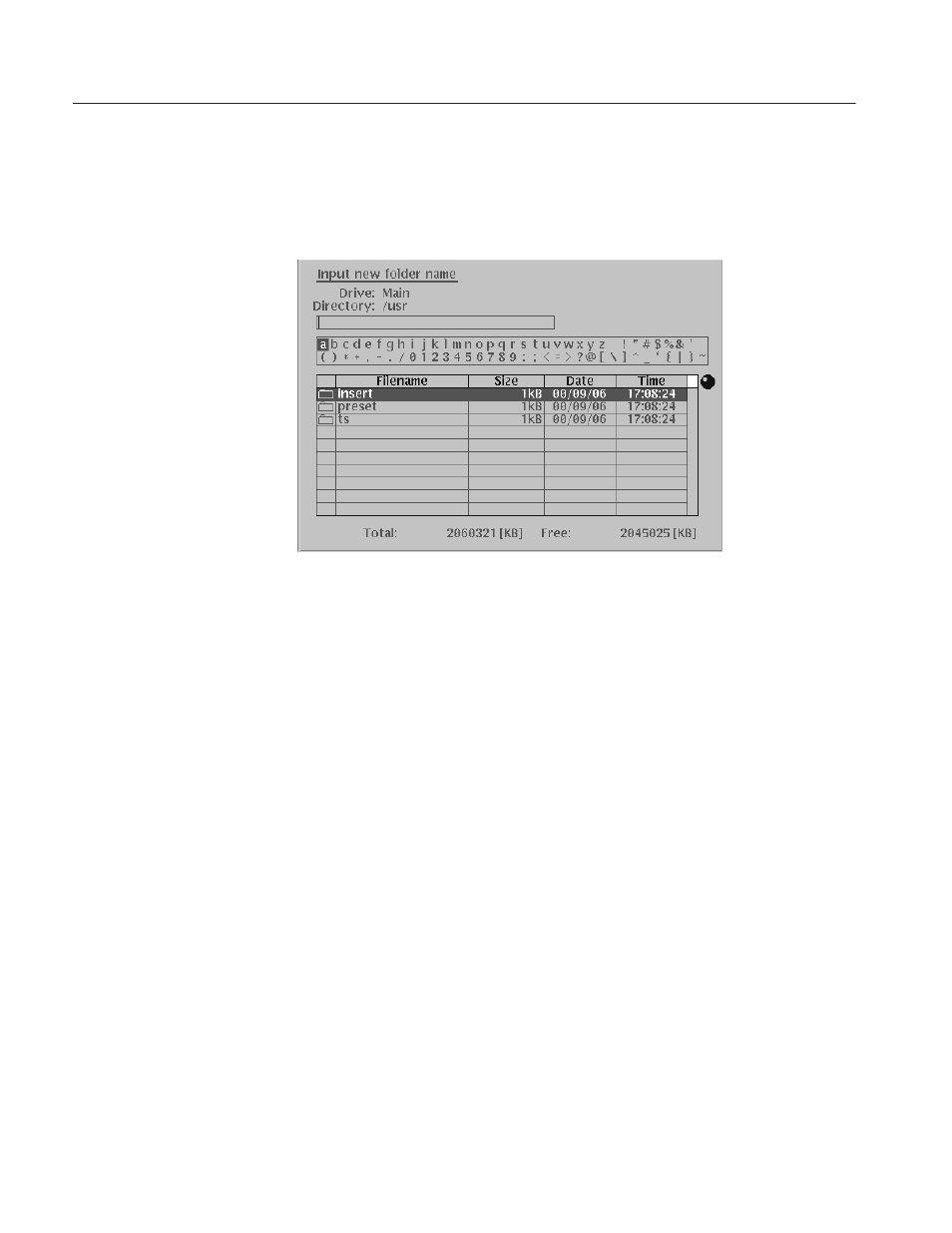

Figure 2Ć11: Dialog box for text input
You can also use any file name listed in the Filename box instead of entering all
of the characters for a new file name.
Perform the following procedure to use the file name for entering a new file
name:
1. Press the down arrow button to highlight the Filename box. The knob icon
appears at the upper-right side of the box.
2. Use the rotary knob to select the file name that you want to use for entering a
new file name, and then press the front-panel ENTER button. The selected
file name appears in the text box.
3. Press the up arrow button to highlight the text box and letter/digit matrix.
The knob icon appears above the upper-right corner of the letter/digit matrix.
4. Edit the file name.
The MPEG generator displays a pop-up message box that prompts you to
confirm operations that will be difficult to recover from. An example of a pop-up
message box is shown in Figure 2-12, which shows the message box for
confirming that you want to defragment the TS drive. Press the OK bezel button
to execute the operation displayed in the box. Press the Cancel bezel button to
cancel the operation and return to the state prior to selecting the menu command
that displayed the message box.
PopĆup Message Box
