Tutorials
MTG100 & MTG300 MPEG Generator User Manual
2Ć23
Inserting an EIT (MTG300 Only)
This tutorial inserts an EIT (Event Information Table) into the transport stream.
This EIT data is contained on the hard disk of the instrument as a file (*.eit).
Perform the following steps to insert an EIT:
1. Press the front-panel MENU button to enable the pull-down menu display.
When the pull-down menus are enabled, the name of the selected pull-down
menu is highlighted.
2. Use the left and right arrow buttons to select the CONFIG pull-down menu.
3. Use the rotary knob or the up and down arrow buttons to select Insert
Section/TS... from the menu, and then press the OK bezel button to open
the Select Insert File dialog box shown in Figure 2-19.

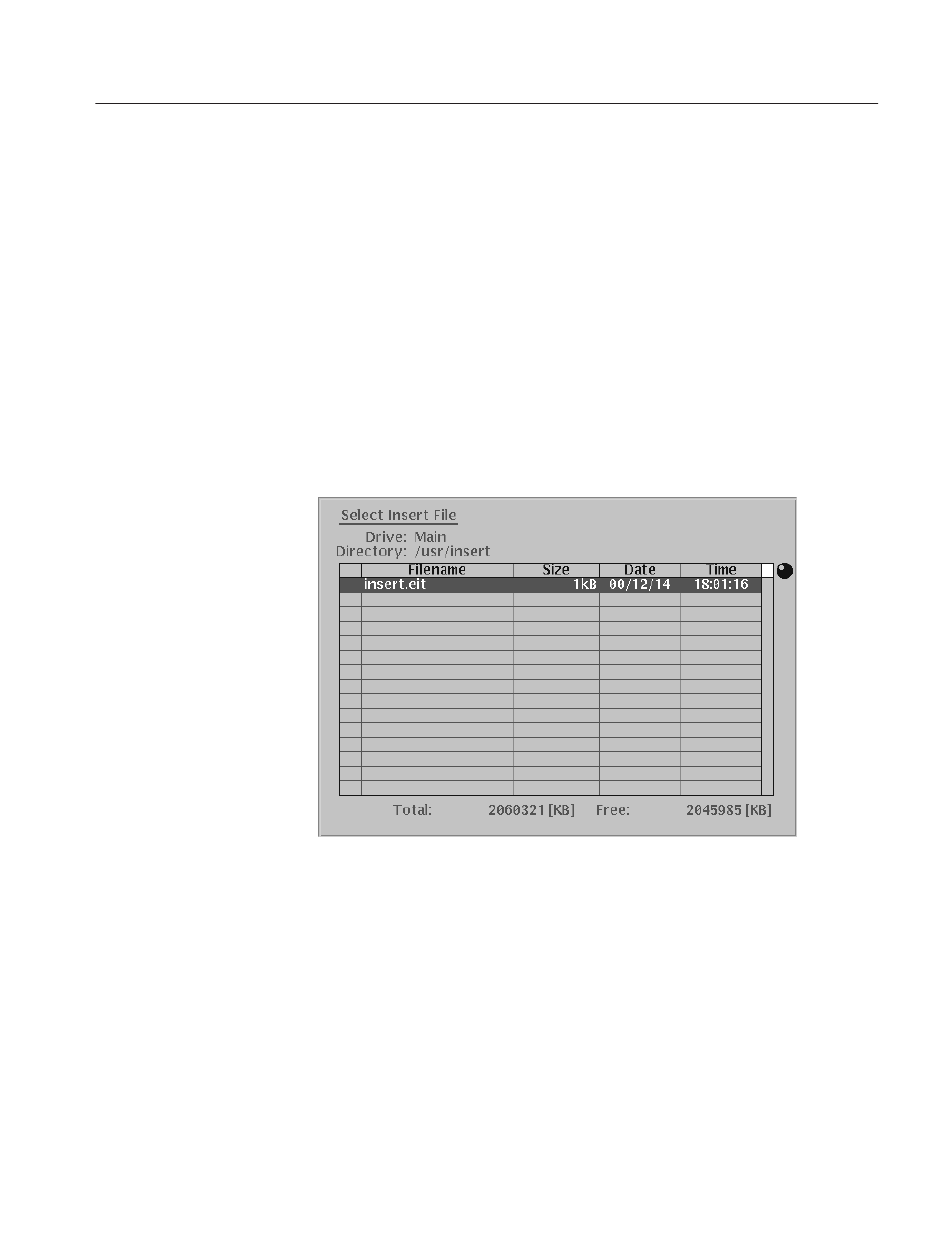

Figure 2Ć19: Select Insert File dialog box
4. Use the rotary knob or the arrow buttons to select the Insert.eit file, and then
press the OK bezel button. This displays the Insertion Setup dialog box
shown in Figure 2-20.
