Appendix C: Using the ReMux Application
CĆ18
MTG100 & MTG300 MPEG Generator User Manual
Creating a Transport Stream of MĆTMCC Structure.
21. Select Execute in the ReMux pull-down menu or click the
"
(Execute)
button to open the Save As... dialog box.
22. In the dialog box, specify a file name, and then click the Save button.
If the number of slots of the transport stream of M-TMCC structure you are
going to create is less than 48, a dummy transport stream(s) is(are) inserted
so that the number of slots reached to 48. The transport stream thus inserted
has the ID value set in the OPTION dialog box (See Figure C-4 on page
C-7) and TS8PSK is used as the modulation system.
This mode allows you to create a transport stream of M-TMCC structure from a
transport stream. In this mode, two Remux functions are simultaneously
executed: the Make S-TMCC TS and the ReMux to M-TMCC TS from
S-TMCC TS mode.
This subsection describes the procedure to create a transport stream of M-TMCC
structure from a transport stream.
1. Select New from the File pull-down menu or click the New button on the
toolbar to open the Select Remux Mode dialog box shown in Figure C-3 on
page C-5.
2. Select ReMux to M-TMCC in the dialog box, and then click the OK button
to open the edit window for the ReMux to M-TMCC TS mode shown in
Figure C-13.

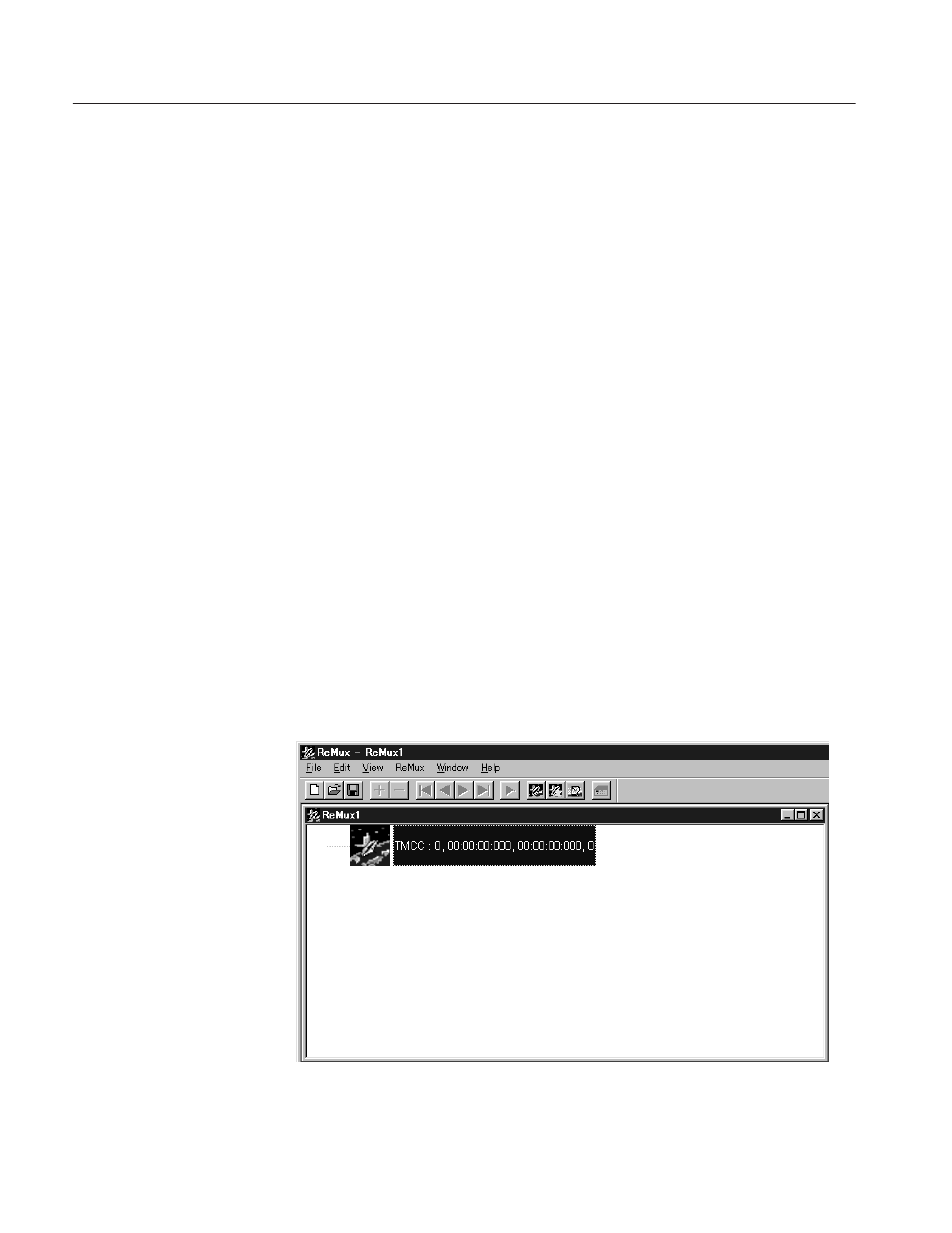

Figure CĆ13: Editing window for the ReMux to MĆTMCC TS mode
ReMux to MĆTMCC TS
Mode
