Adding Jitter to PCRs (MTG300 only)
MTG100 & MTG300 MPEG Generator User Manual
3Ć93
PCR values
Time
- PCR values with sine jitter applied
Value Jitter
amplitude
Value Jitter
period
Number of packets (time)
PCR period
- Original PCR values
PCR values

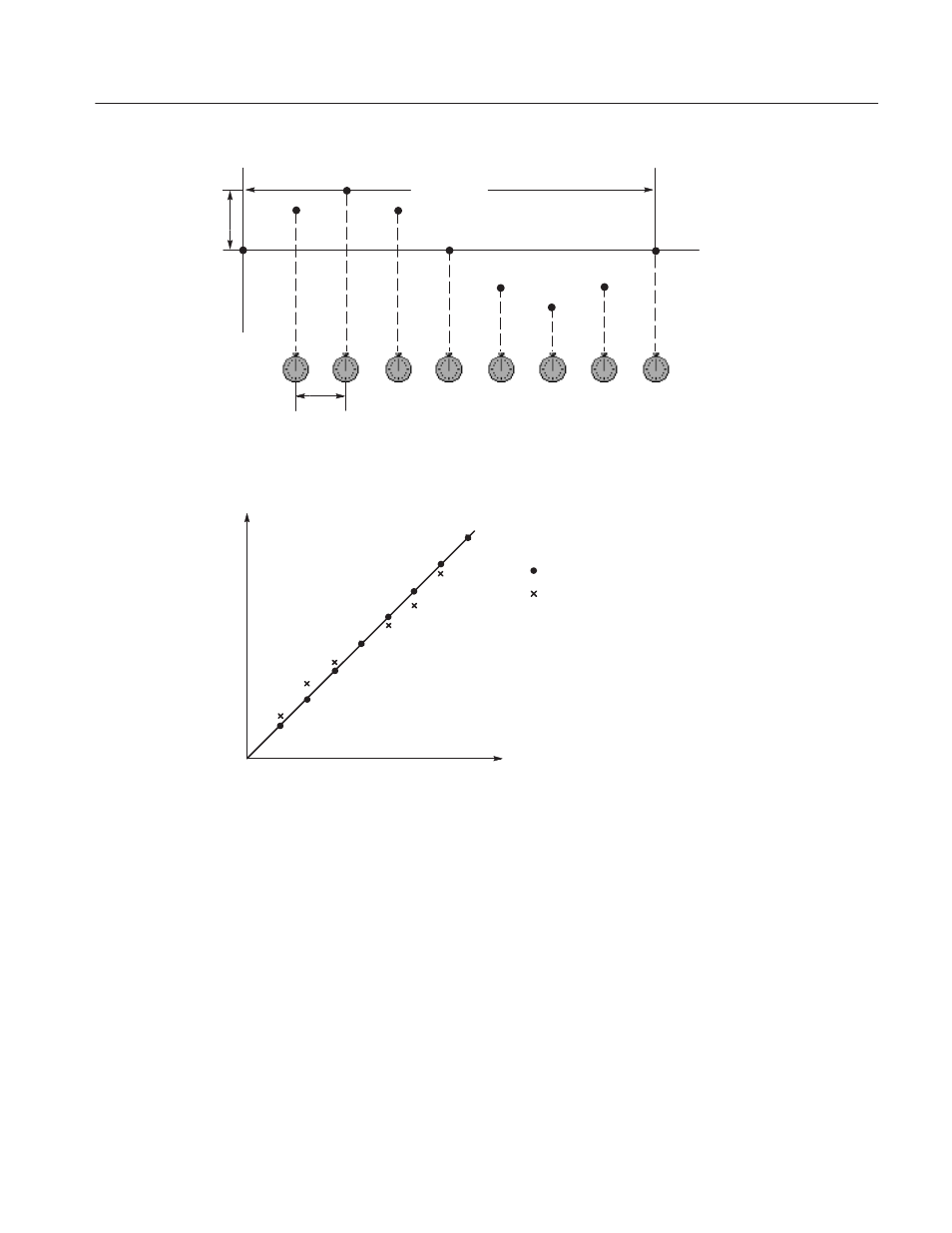

Figure 3Ć34: Value Jitter function with a sine jitter pattern applied
