Replacing and Inserting Section Data (MTG300 Only)

MTG100 & MTG300 MPEG Generator User Manual

3Ć85

Timing Replacement Mode. In the Timing replacement mode (see Figure 3-28),
data replacement starts immediately when the time set in the Start Time
parameter of the Setup Replace dialog box arrives.

After the time set in the Continuous Time parameter of the Setup Replace dialog
box arrives, the data replacement is ended.

ЙЙЙ

ЛЛЛ

Start time

Continuous time

S S S

ЛЛ

ЛЛЛ

S S S

Replaced section data

Before

replacement

After

replacement

ЙЙЙ

Section data to be replaced

File interval

Section data (section file)

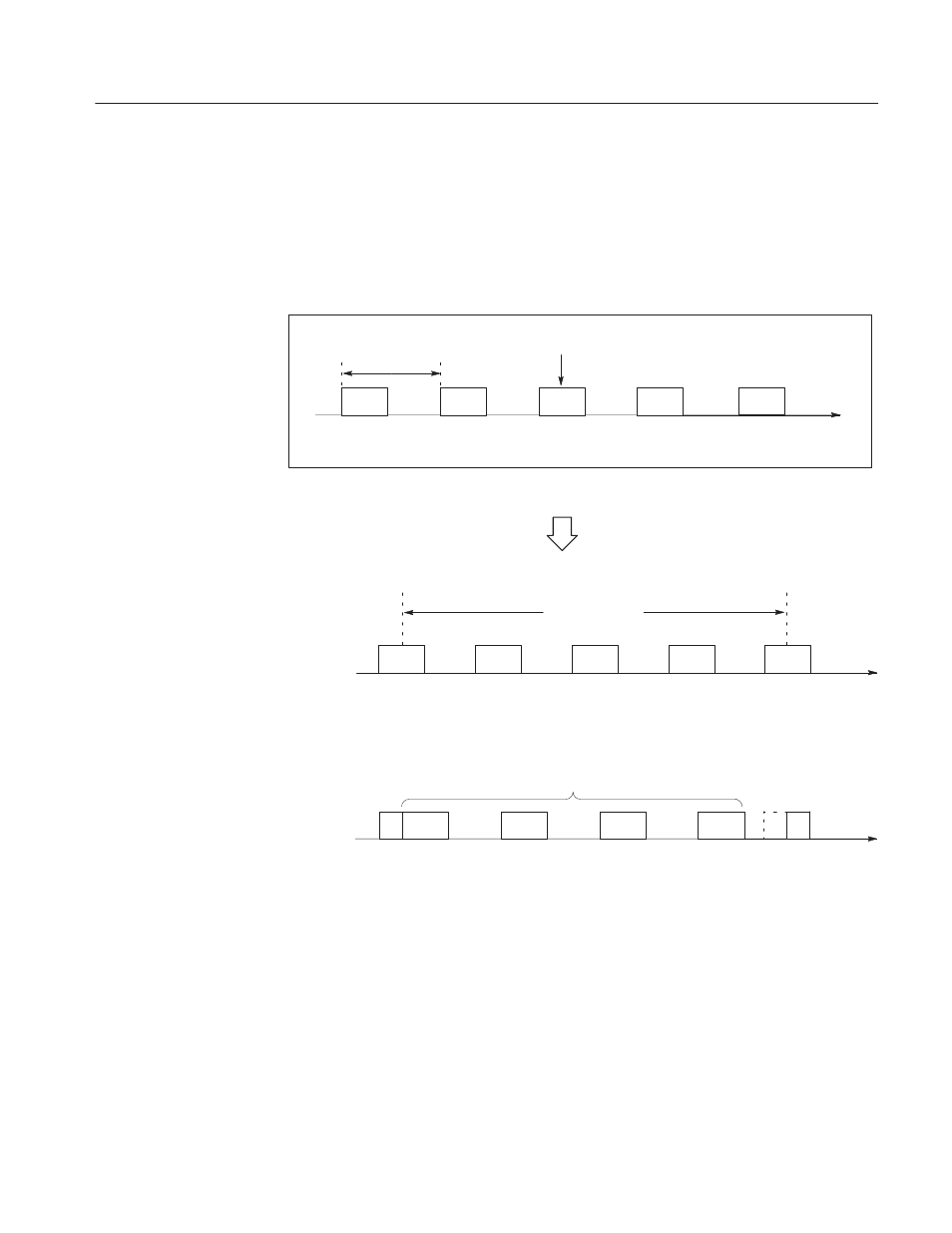

Figure 3Ć28: Timing replacement mode
