Tutorials
MTG100 & MTG300 MPEG Generator User Manual
2Ć19

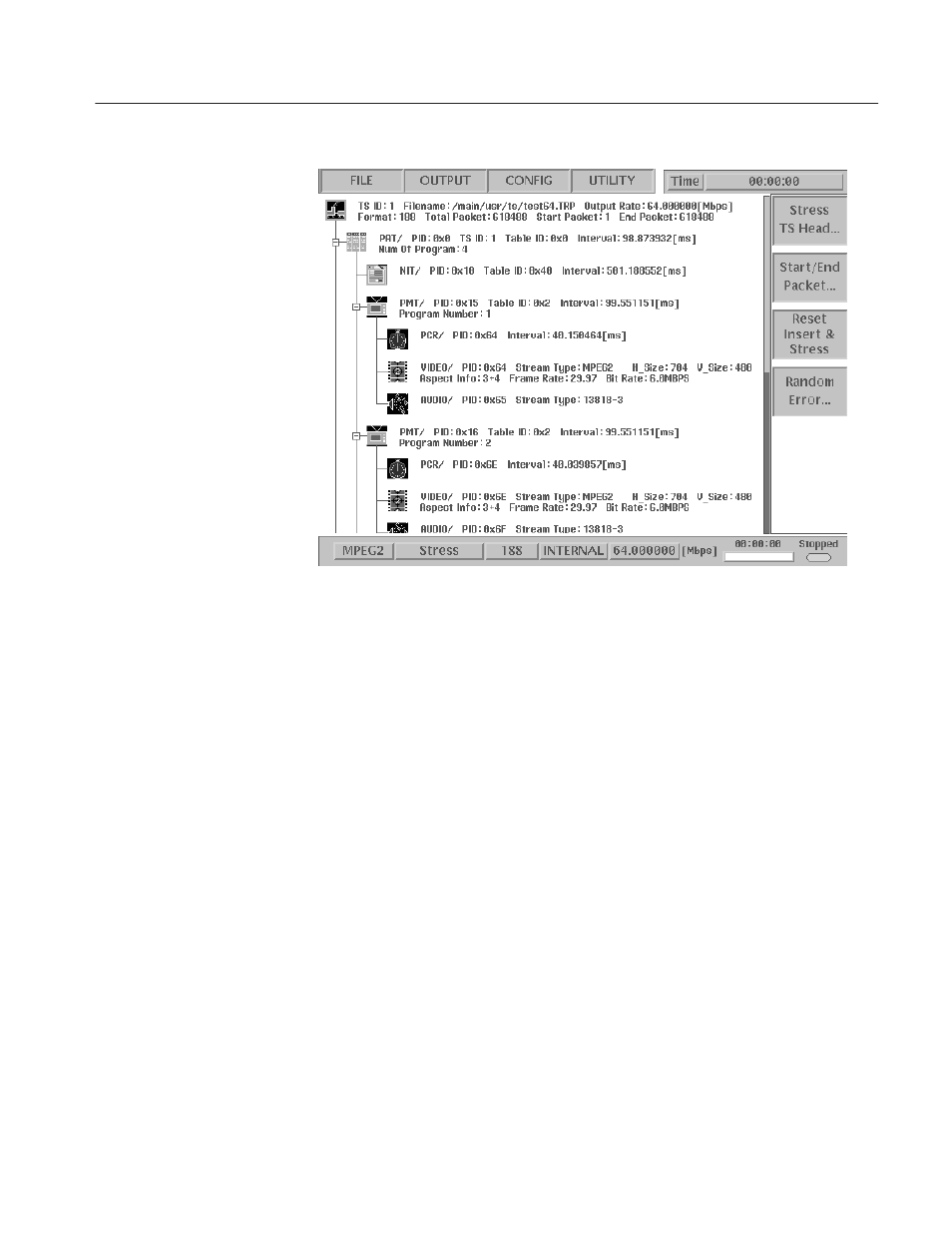

Figure 2Ć14: Hierarchy view of the transport stream file
5. Connect a 75
W cable between the ASI OUT connector on the MPEG
generator rear panel to the ASI IN connector of the MPEG test system.
6. Press the MPEG generator START/STOP button to start the transport
stream output. When transport stream output is started, the Output Status
indicator in the status bar changes from Stopped to Running.
7. Set up the MPEG test system to monitor the transport stream output from the
MPEG generator. Figure 2-15 shows the transport stream data displayed on a
Tektronix MTS200 Series Real Time Analyzer.
8. Press the START/STOP button on the MPEG generator to stop the transport
stream output. Observe that the Output Status indicator in the status bar
changed from Running to Stopped.
