Hierarchy Display
3Ć54
MTG100 & MTG300 MPEG Generator User Manual
DTS Stress Dialog Box. When you select the DTS Stress... command from the
Bezel menu on your MTG300 MPEG generator, the DTS Stress dialog box
appears as shown in Figure 3-21. This function is available only when the dialog
box is displayed.
The Delay parameter sets the delay time for the DTS. You can set the delay from
0/90 kHz to 4500/90 kHz (0 ms to 50 ms). The transport stream output is varied
as the value is changed. Use the rotary knob or hexadecimal keypad to change
the delay.
Table 3-60 describes the Bezel menu commands associated with the dialog box.

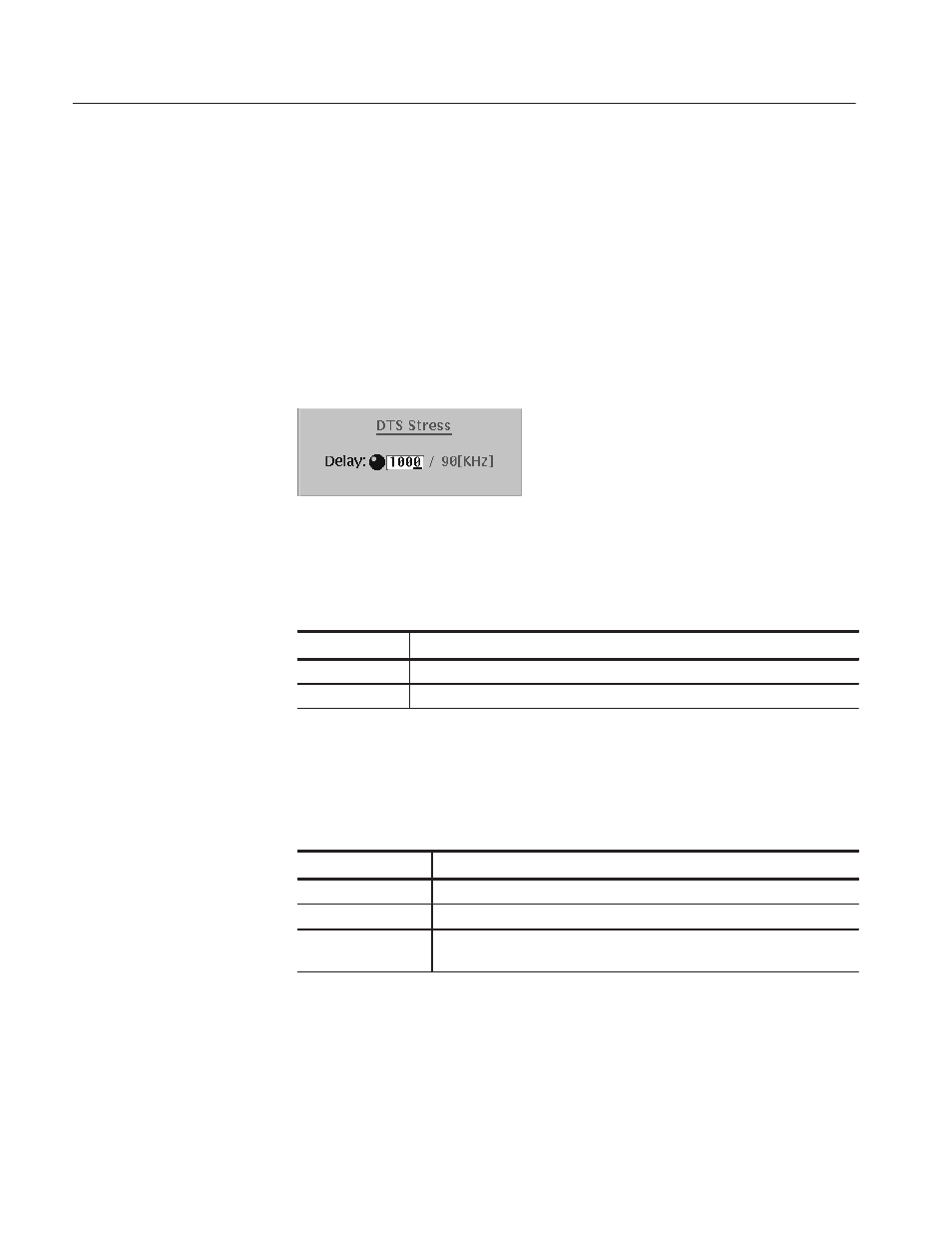

Figure 3Ć21: DTS Stress dialog box
Table 3Ć60: Bezel menu commands for the DTS Stress dialog box
Command Description
Default Returns the DTS delay to the default value.
Exit Menu Cancels any setting changes and closes the dialog box.
Table 3-61 describes the text information and Table 3-62 describes the Bezel
menu commands for the audio elementary stream (AUDIO) icon.
Table 3Ć61: AUDIO icon text descriptions
Parameter Description
PID Shows the PID value of the audio elementary stream.
StreamType Shows the type of the audio elementary stream (13818-3 or 11172-3).
ES Rate Shows the rate of the elementary stream. This value is displayed when
the ES_rate_flag value in the PES packet header is set to 1.
Audio Elementary Stream
(AUDIO) Icon
