Operating Basics
2Ć4
MTG100 & MTG300 MPEG Generator User Manual
H When the pull-down menus are enabled, press this button to quit the menu
operation.
Rotary Knob. When the knob icon appears on the display next to an item, the
rotary knob controls that item. Use the rotary knob to control the following
functions on the LCD display:
H In the hierarchy display, use this knob to move the Icon cursor between
hierarchy items.
H When a pull-down menu is displayed, use this knob to move between the
menu items.
H When a dialog box appears, use this knob to adjust numeric values.
Arrow Buttons. Use the arrow buttons around the rotary knob to maneuver on the
LCD display. For example, you can use these buttons to move the Icon cursor or
to move among the pull-down menu selections.

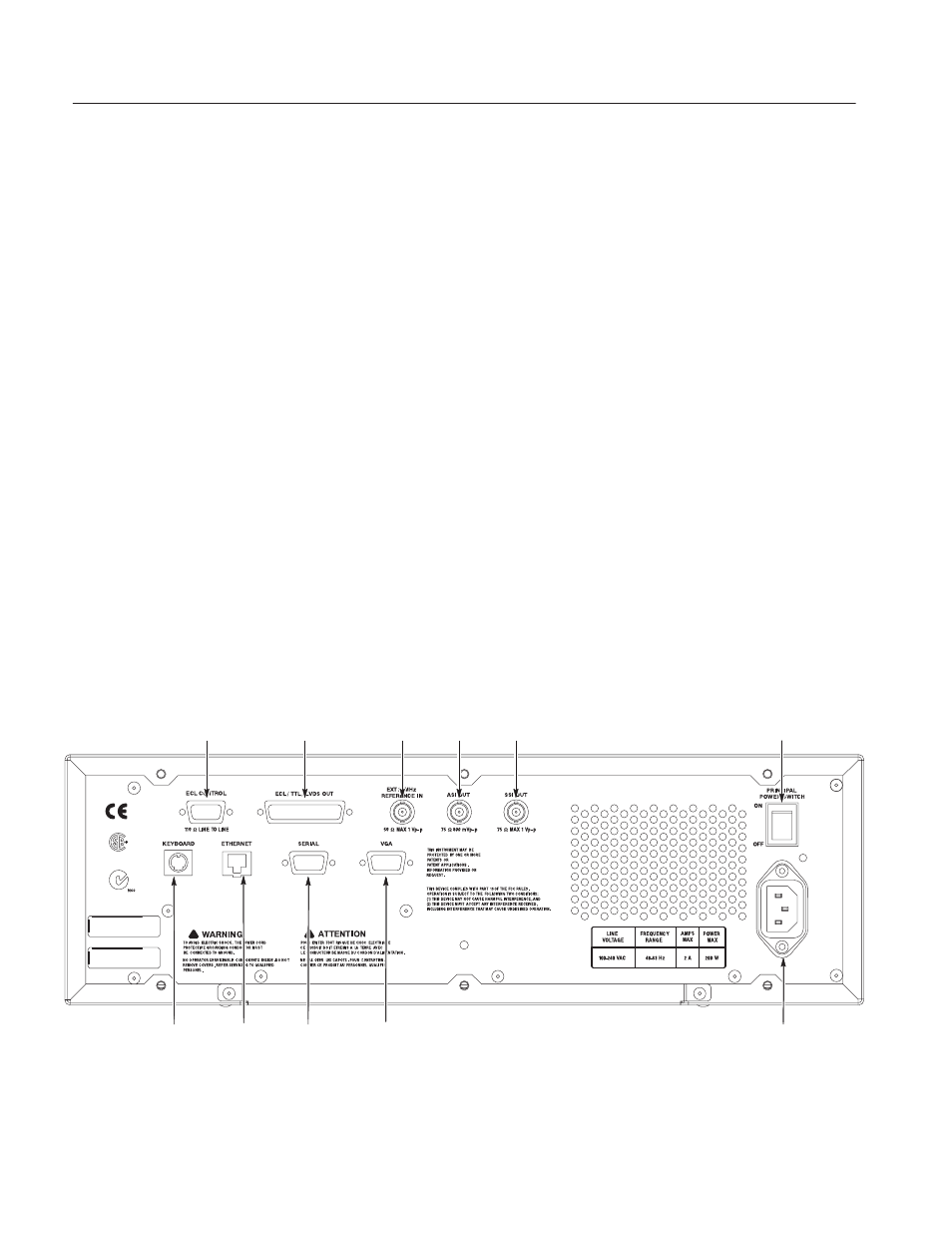

Figure 2-2 shows the locations of the MPEG generator rear-panel connectors and
the power switch.
ECL Control
ECLā/āTTLā/āLVDS Out
Ext 27 MHz
Reference In ASI Out SSI Out
Principle Power Switch
Keyboard
Serial
Ethernet
VGA
Power
Figure 2Ć2: MPEG generator rear panel
Rear Panel Connectors
and Power Switch
