Pull-down Menus
MTG100 & MTG300 MPEG Generator User Manual
3Ć23

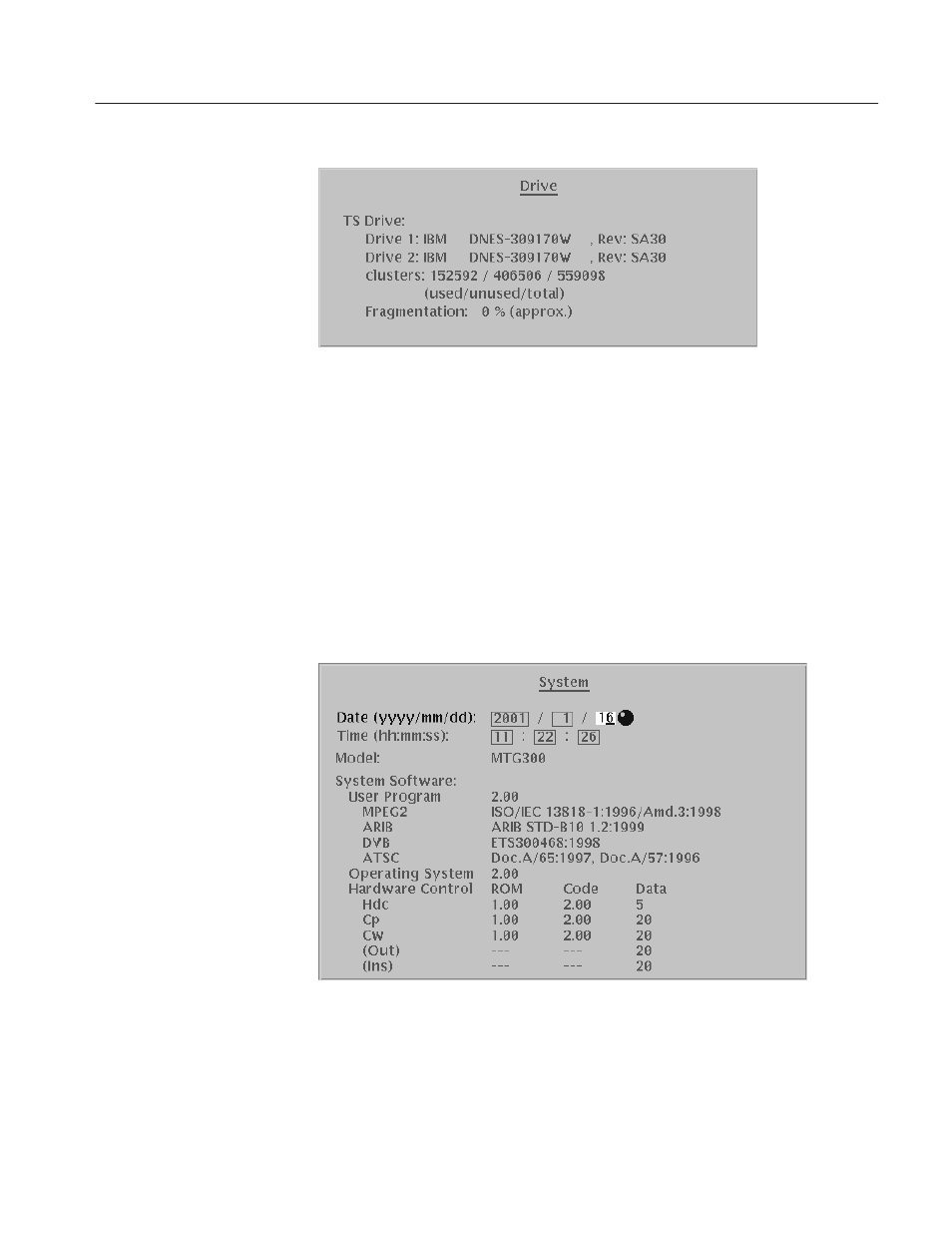

Figure 3Ć10: Drive dialog box
When you select the System... command from the UTILITY pull-down menu,
the System dialog box appears as shown in Figure 3-11. The dialog box displays
the internal date and time of the MPEG generator and displays general system
information including the software and hardware versions installed in the
instrument and the compression standards supported by the instrument. Use the
arrow buttons to highlight the desired parameter, and then use the rotary knob or
hexadecimal keypad to set values.
Table 3-23 describes the System dialog box parameters and Table 3-24 describes
the Bezel menu commands associated with the dialog box.
Figure 3Ć11: System dialog box
System Dialog Box
