Appendix C: Using the ReMux Application
MTG100 & MTG300 MPEG Generator User Manual
CĆ17
TMCC information Newly added TMCC information
Frame
Transport stream 1
Transport stream 2
Transport stream 3

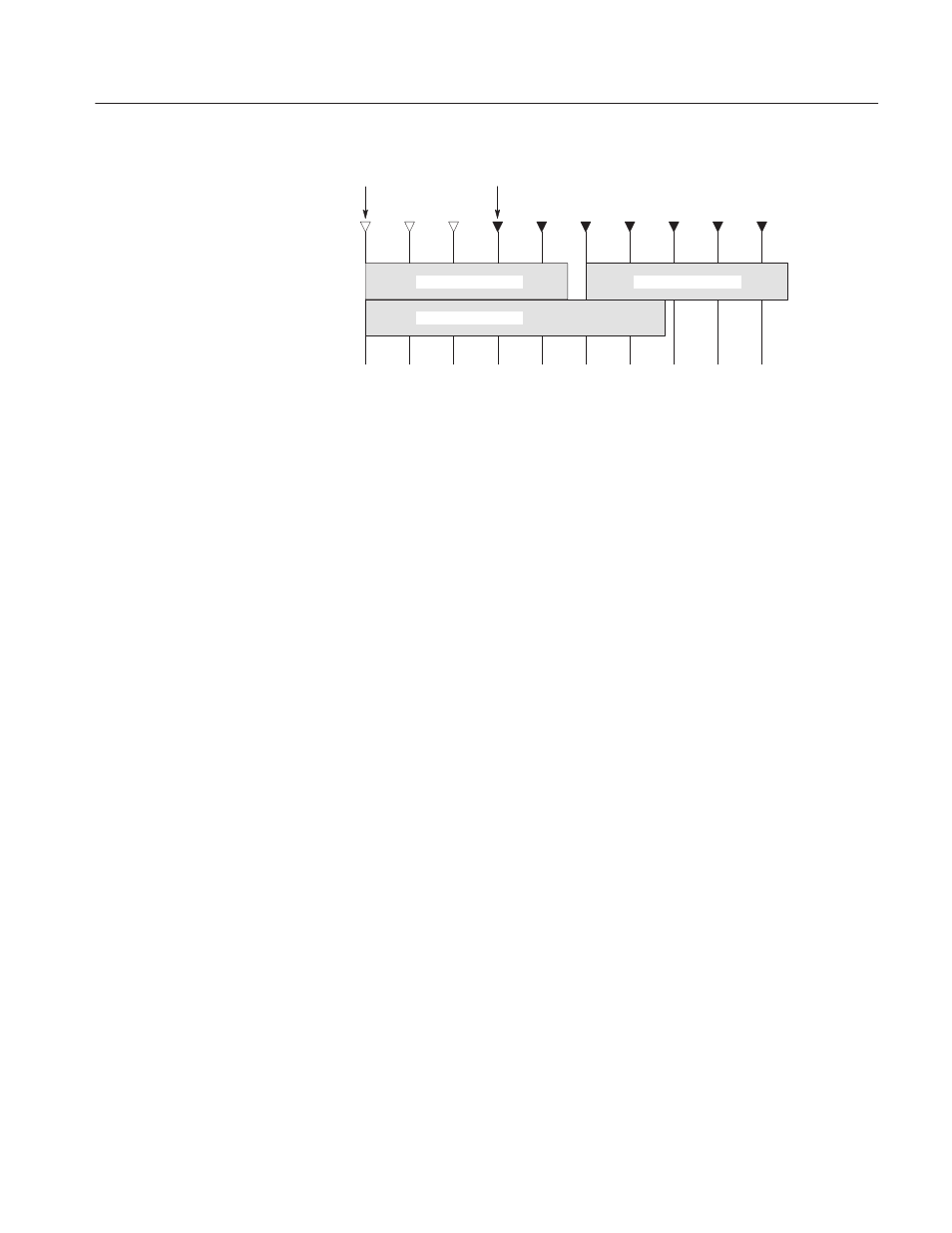

This illustration shows the positional relationship when inserted TMCC
information and the transport stream 3 after the transport stream 1 while two
transport streams have been multiplexed. The new TMCC information is
inserted to the position two frames before the location to which the transport
stream to be newly multiplexed is inserted.
16. In the Add TMCC dialog box, select a transport stream number, and then
click the OK button to open the Edit TMCC Information dialog box for
editing the TMCC information (See Figure C-11).
17. After you change the parameters, click the OK button to confirm the changes
and close the dialog box.
This opens a new editing window with a TMCC icon displayed. In this case,
note the increase of the value indicating change instruction at the right side
of the TMCC icon. In addition, the First and Previous buttons on the
toolbar change their color to green indicating that a TMCC exists before this
TMCC.
18. Repeat steps 3 through 5 to select a transport stream file.
19. Repeat steps 6 through 8 to multiplex the transport stream file.
20. If you want to further multiplex a transport stream(s) of M-TMCC structure
having different TMCC information, repeat steps 14 through 19.
