Appendix D: Performance Verification
DĆ2
MTG100 & MTG300 MPEG Generator User Manual
9Ćpin, DĆtype,
male connector
25Ćpin, DĆtype,
male connector
1
6
3
8
4
9
1
14
12
25
24
11

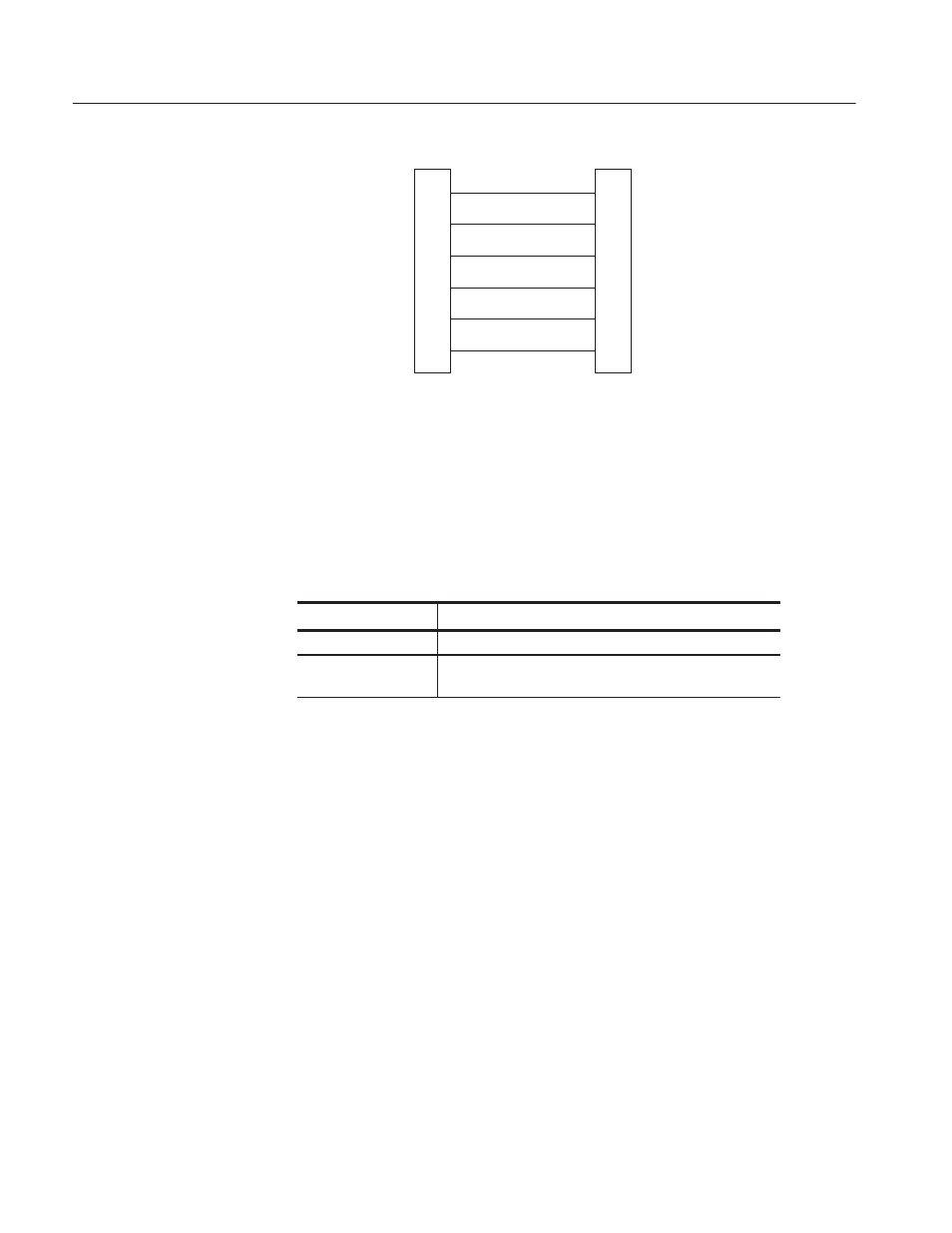

Figure DĆ1: Custom cable with 9Ćpin and 25Ćpin, DĆtype connectors
The MPEG generator is shipped from the factory with sample MPEG test files
loaded on the hard disk. Two of these files are required to perform the perfor-
mance verification procedures. Table D-2 lists the required test files and the
performance verification tests that require these files.
Table DĆ2: MPEG test files required for performance verification
File name Performance verification tests
test40.trp SSI Output and External Clock Input
test64.trp Internal Clock Frequency, ASI Output, Parallel Output,
Serial Output, and External Reference Input
