Hierarchy Display
3Ć42
MTG100 & MTG300 MPEG Generator User Manual
Table 3Ć41: Bezel menu commands for the PAT Interval dialog box
Command Description
Undo Stress Returns the PAT interval to the default value and closes the dialog box.
Keep Stress Enables the PAT interval. When you change the PAT interval, the new
interval value is displayed in orange after the PAT icon.
Replace Setup Dialog Box. When you select the Replace Section... command from
the Bezel menu on your MTG300 MPEG generator, the Replace Setup dialog
box appears as shown in Figure 3-17. Use the arrow buttons to highlight the
desired parameter, and then use the rotary knob or hexadecimal keypad to set
values. Press the Apply bezel button to apply changes.
Table 3-42 describes the Replace Setup dialog box parameters and Table 3-43
describes the Bezel menu commands associated with the dialog box.

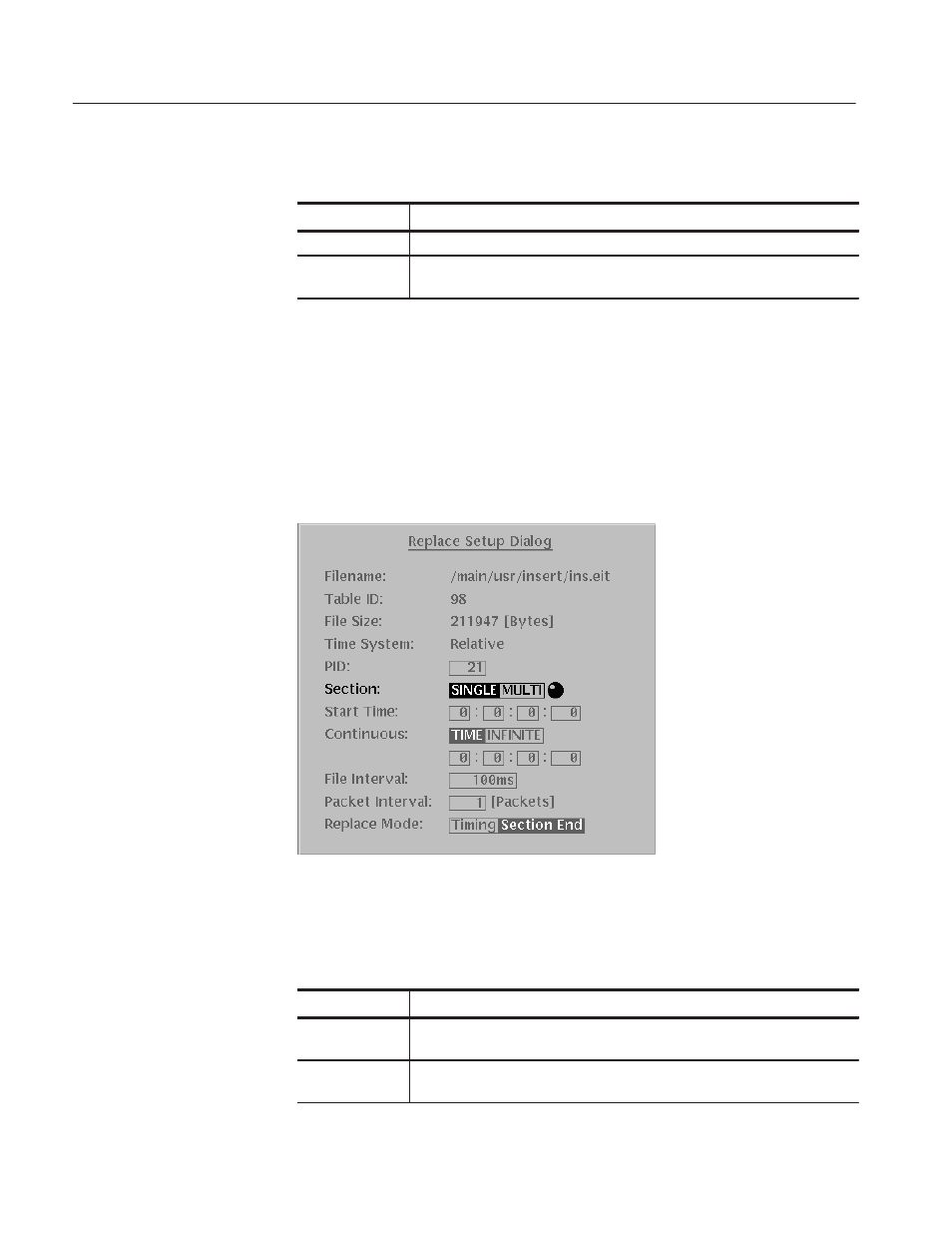

Figure 3Ć17: Replace Setup dialog box
Table 3Ć42: Replace Setup dialog box parameters
Parameter Description
Filename Shows the directory path and name of the section file selected in the Select
Replace File dialog box. The default directory path is /main/usr/insert.
Table ID Shows the table_id value of the PAT. This value is automatically defined by
the selected file.
