Appendix B: Using MTG Comm
+
for File Transfers
BĆ16
MTG100 & MTG300 MPEG Generator User Manual

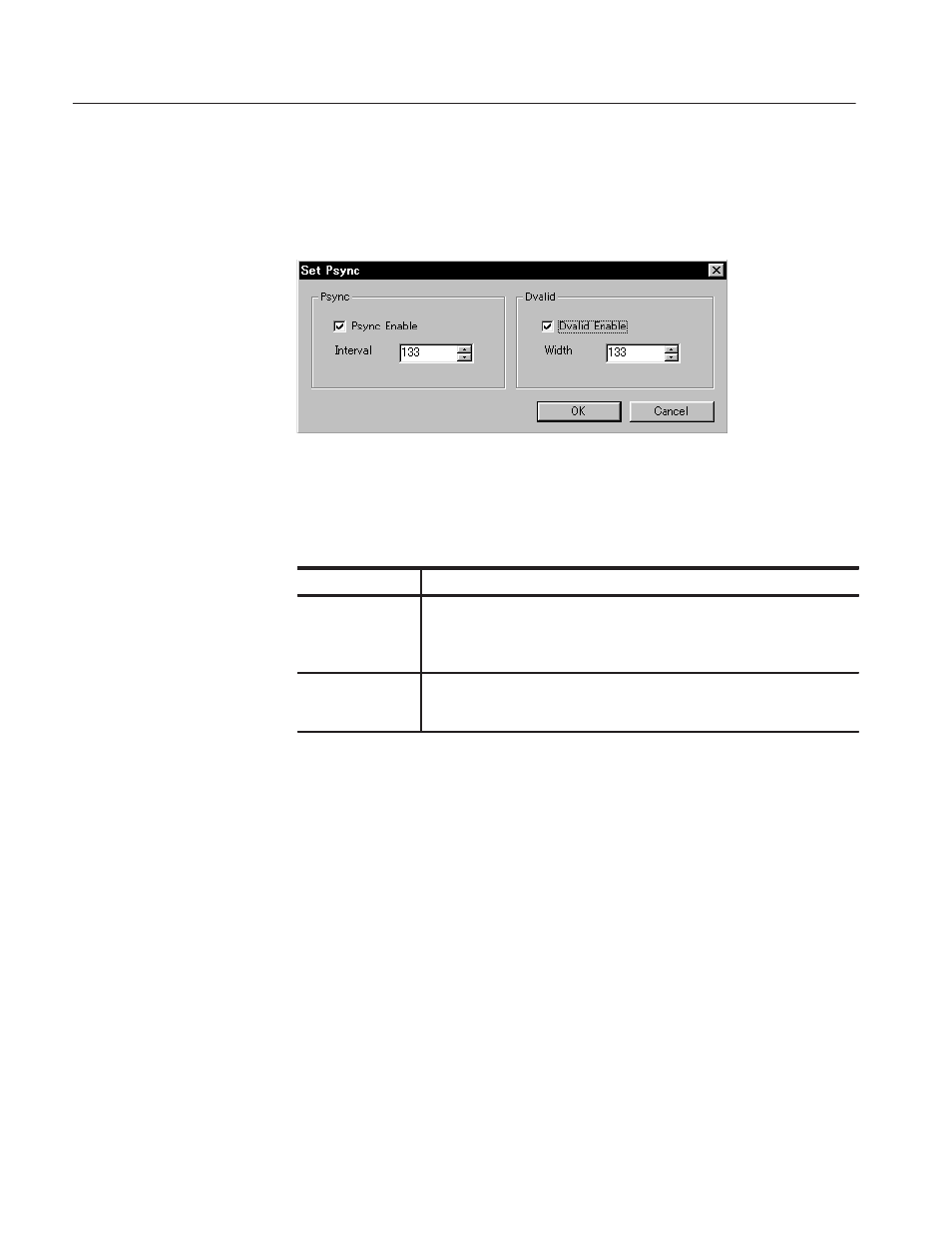

Set Psync Dialog Box. The Set Psync dialog box (see Figure B-6) appears after
you click the Psync button in the User Check dialog box. Table B-5 describes the
Set Psync dialog box parameters.
Figure BĆ6: Set Psync dialog box
Table BĆ5: Set Psync dialog box parameters
Parameter
Description
Psync
Sets the status of the PSYNC signal output fromthe ECL/TTL/LVDS
connector. In the Interval box, you can set the output period of the PSYNC
signal in the range of 16 to 256 bytes. In addition, this value need to be
set equal to or greater than the Width value in the Dvalid field.
Dvalid
Sets the status of the DVALID signal output fromthe ECL/TTL/LVDS
connector. In the Width box, you can set the data width of the DVALID
signal in the range of 16 to 256 bytes.
