Appendix C: Using the ReMux Application
MTG100 & MTG300 MPEG Generator User Manual
CĆ21

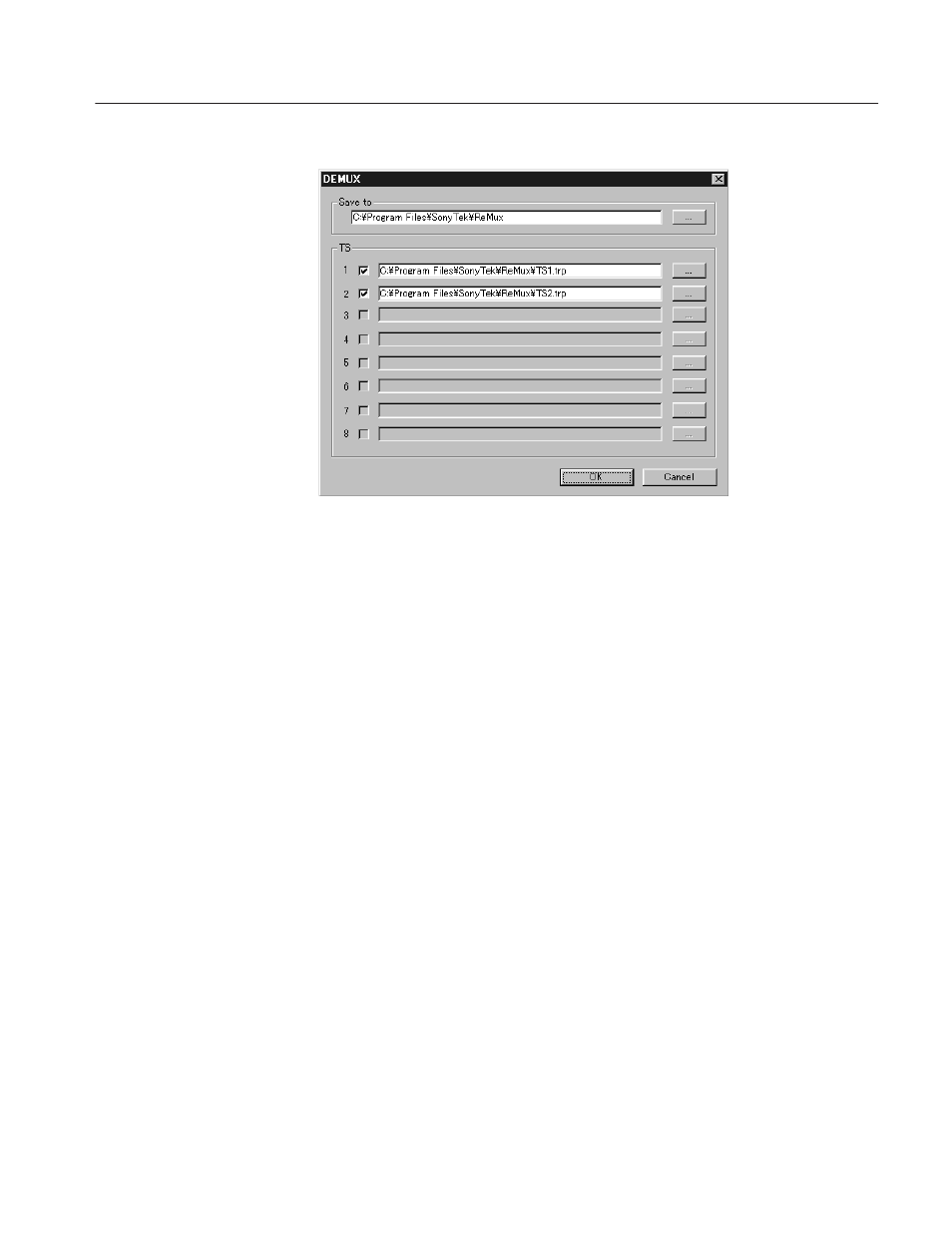

Figure CĆ15: DEMUX dialog box
In this dialog box, you can set the following parameters:
H Save to: Specifies the directory to which the de-multiplexed transport stream
to be saved.
H TS: Selects the transport stream(s) to be de-multiplexed. Click the check box
at the front of the file name to select the file to be de-multiplexed. When you
click the ... button at the right side of file name, the Save As... dialog box
appears, and you can specify a file name and save the file.
4. After you select the directory and transport stream(s), click the OK button.
The transport stream(s) is(are) de-multiplexed and saved to the directory.
